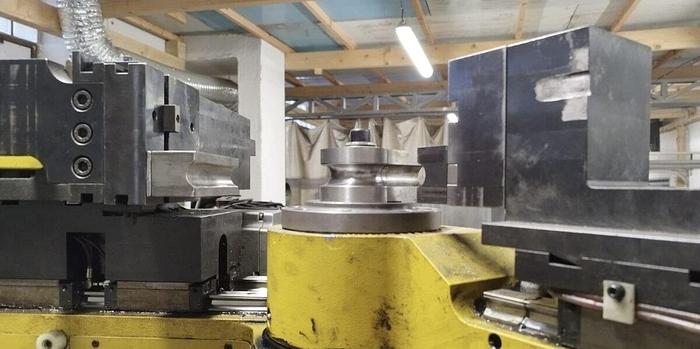

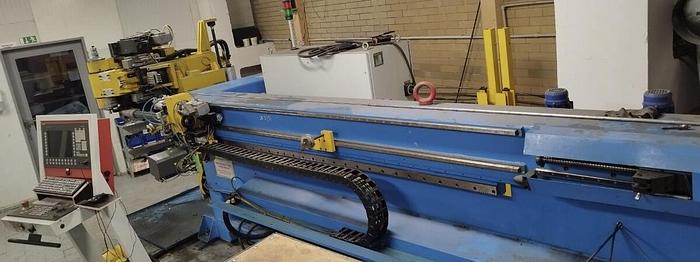

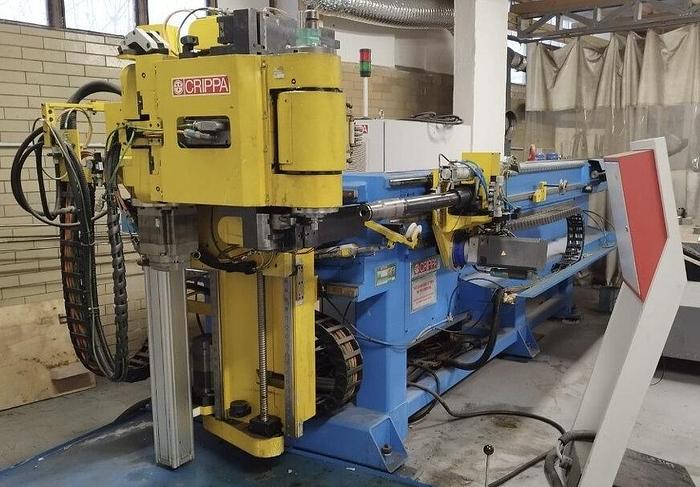

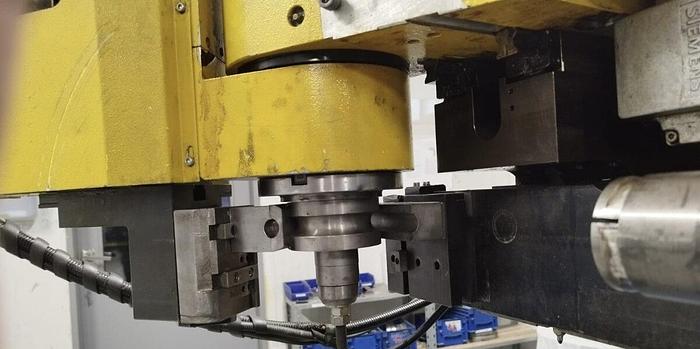

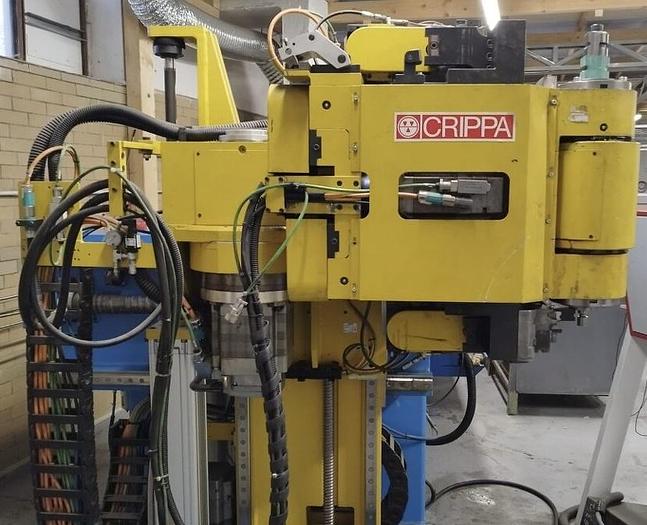

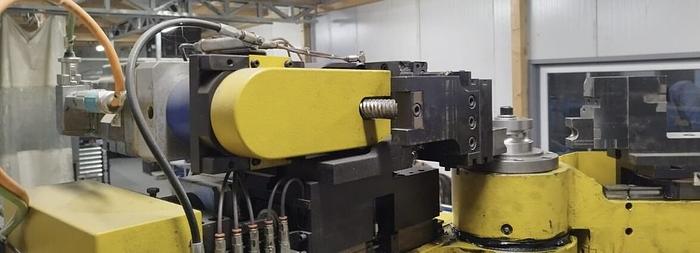

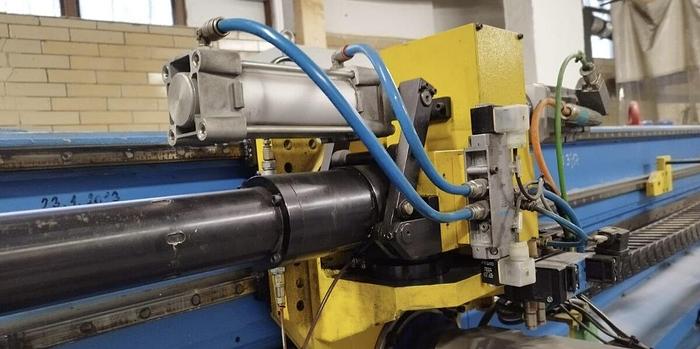

2012 Crippa CA1142E

CNC tube and profil bending machine for sale.

Type: CA1142E

Manufacturer: Crippa

Year: 2012

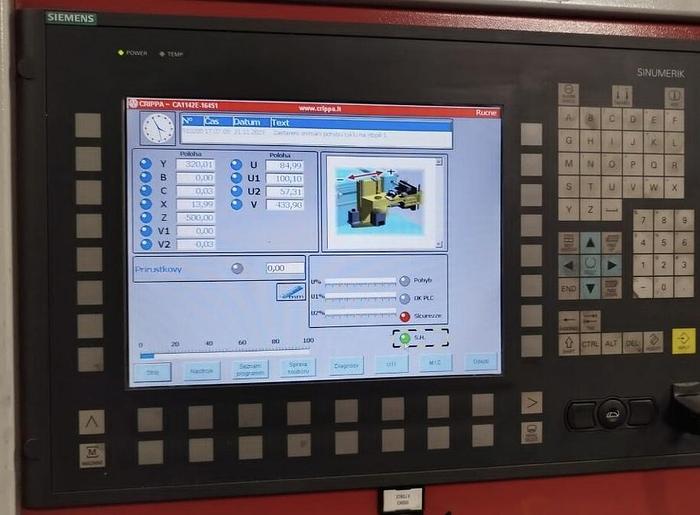

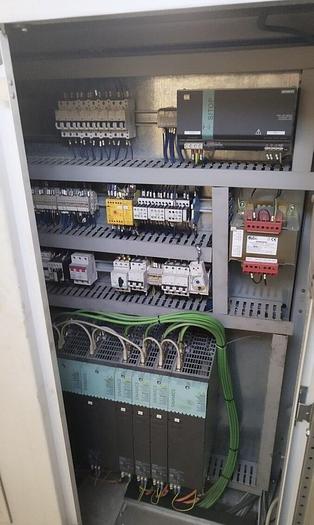

Control: SIEMENS 840D Sl

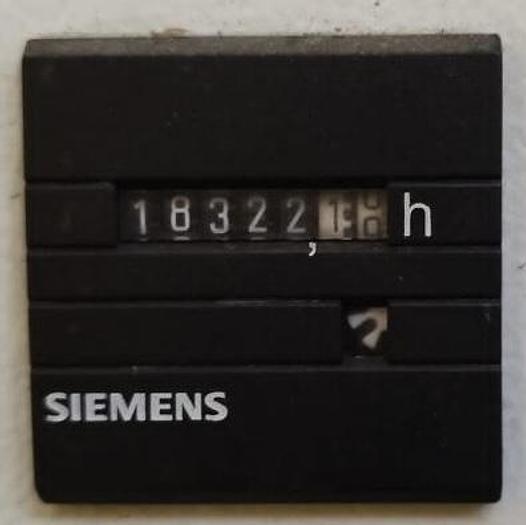

Hours: 18500

Flexural strength (Rs = 250 N/mm2) 2.4 cm3

Max. tube diameter 42 mm

Min. tube diameter 6 mm

Max. tube length with tube end into positioner collet 2600 mm

Max. tube length with rod movement 3900 mm

Max. tube length with mandrel 70 mm

Max. bending radius 170 mm

Min. bending radius --

Max. height of upper tooling 210 mm.

Min. height of upper tooling 50 mm

Max. height of lower tooling 210 mm

Min. height of lower tooling 50 mm

Max. diameter inside carrier 43 mm

Max. mandrel stroke 450 mm

Working height 1290 mm

Max. length 5460 mm

Max. width 2260 mm

Max. height 2350 mm

Weight 35500 N (~3605 kg.)

Machine in good condition, under power.

___________________________________________________________________________

The following accessories can also be purchased:

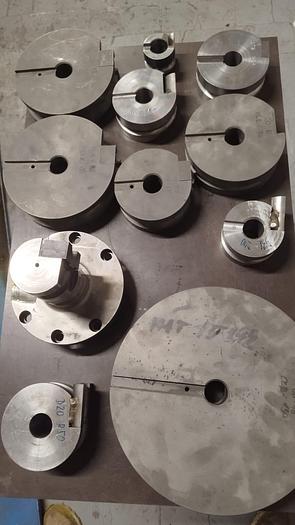

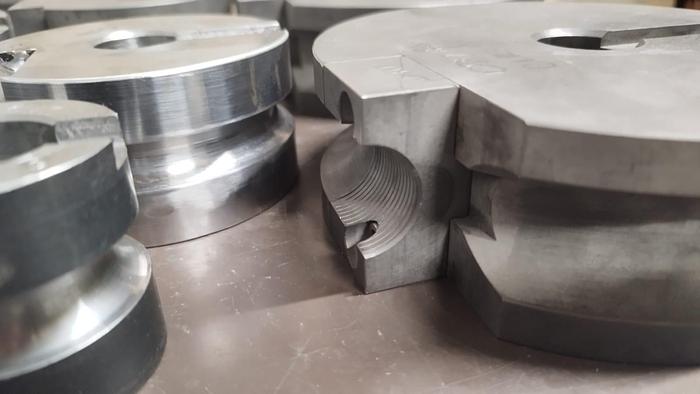

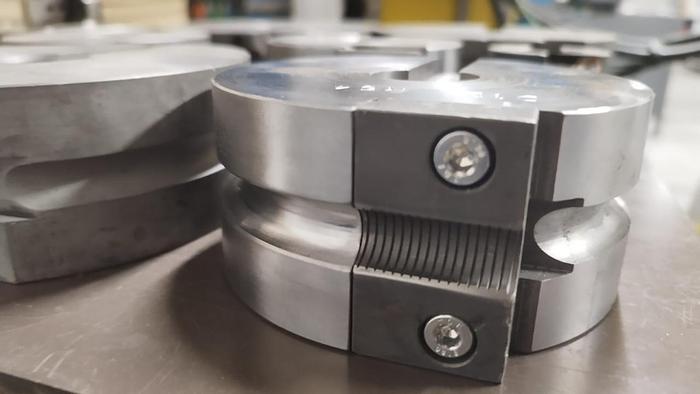

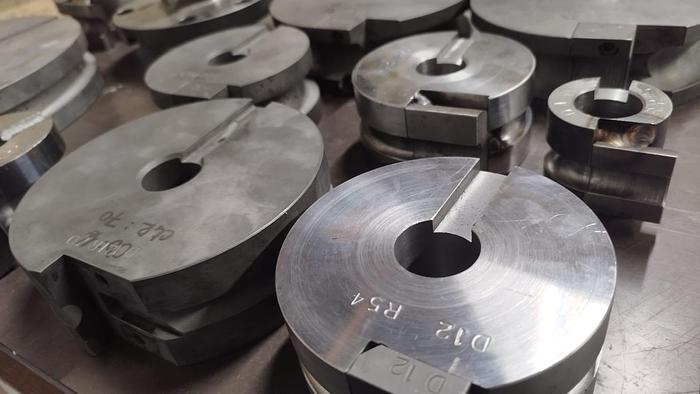

Steel pulleys:

The normal price of a pulley depending on the type and design in these dimensions is approx. 1600 EUR / pc.

we offer them all for 6400 EUR

D12_R54

D12_R70

D14_R25

D14_R50

D16_R40

D18_R130

D20_R30

D20_R40

D20_R50

D22_R55

D28_R80

D28_R85

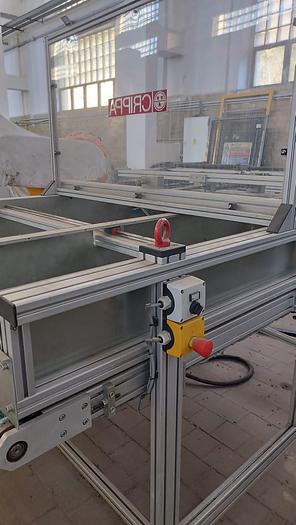

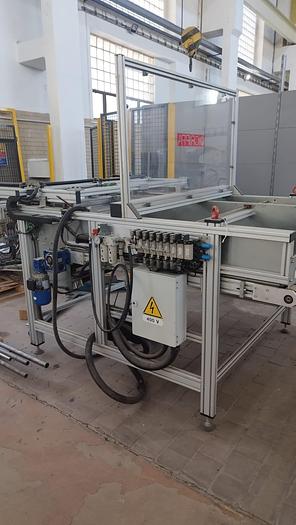

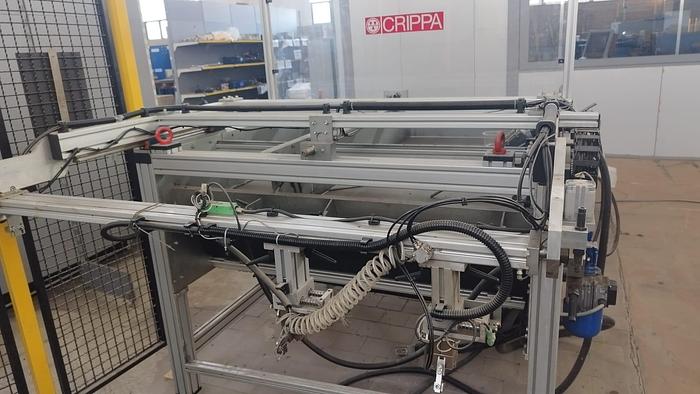

Automatic pipe feeder (small diameters):

If you want to solve a new feeder, the price will be around 40 - 45,000 EUR, depending on the required configuration.

Taking into account the age, but the functionality of the feeder, we offer it for the price: 12.000 EUR

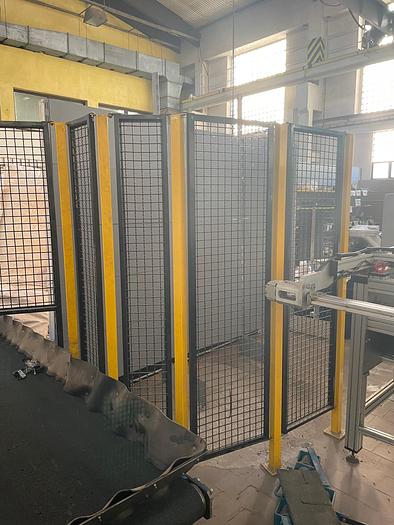

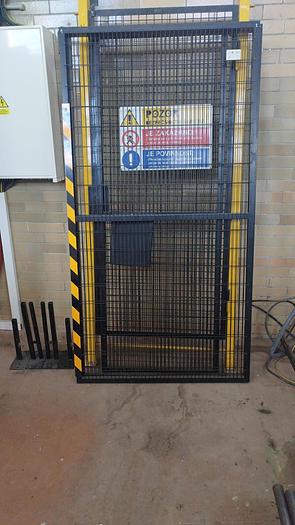

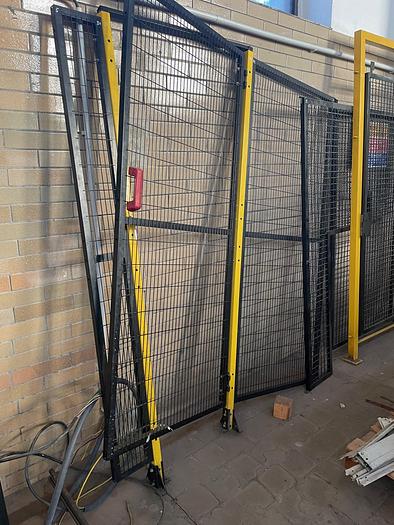

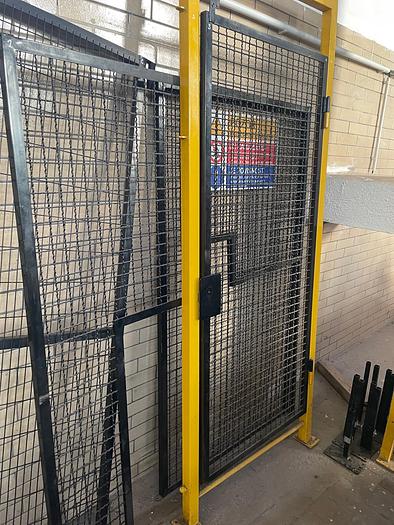

Protective cages:

We can offer a total of 18 protective cages. Price 1500 EUR

These parts are not included in the price and can be purchased separately if you are interested
