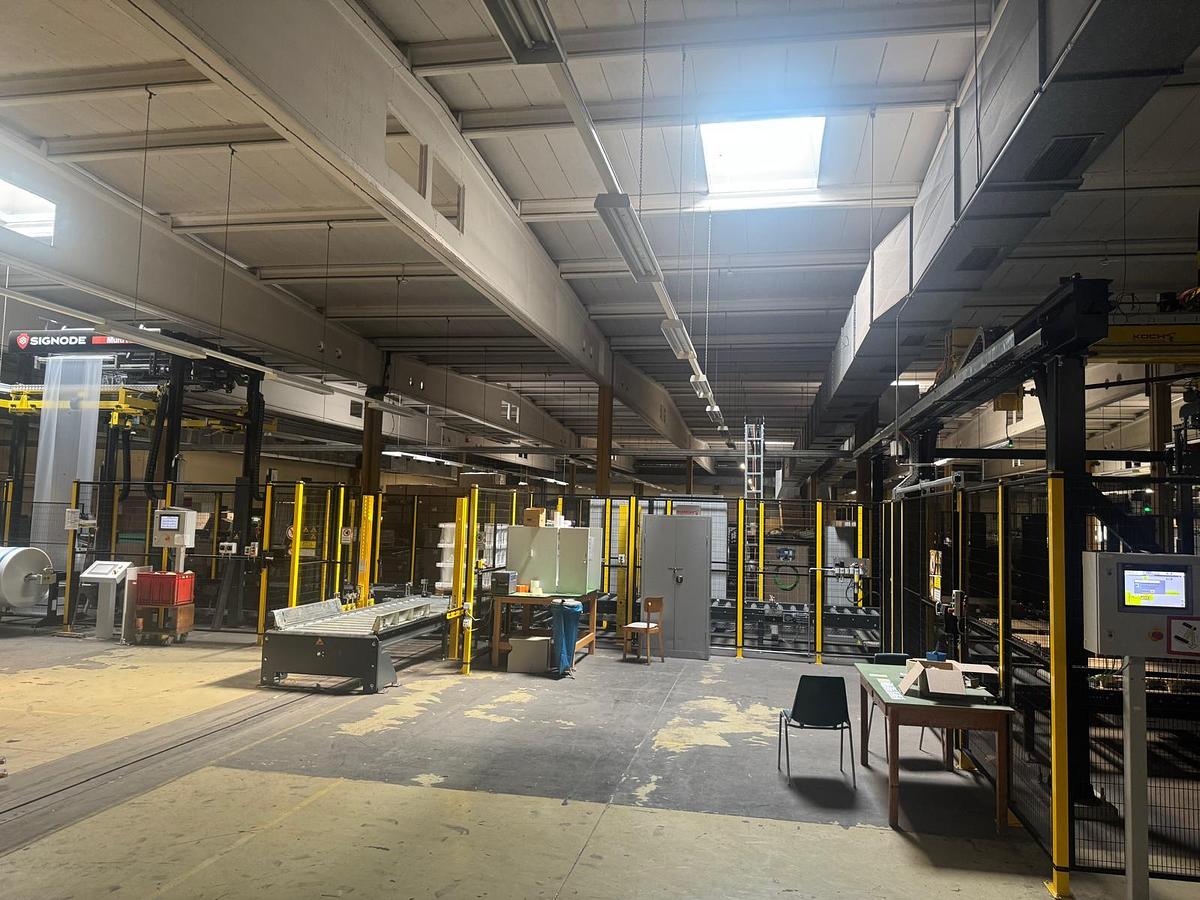

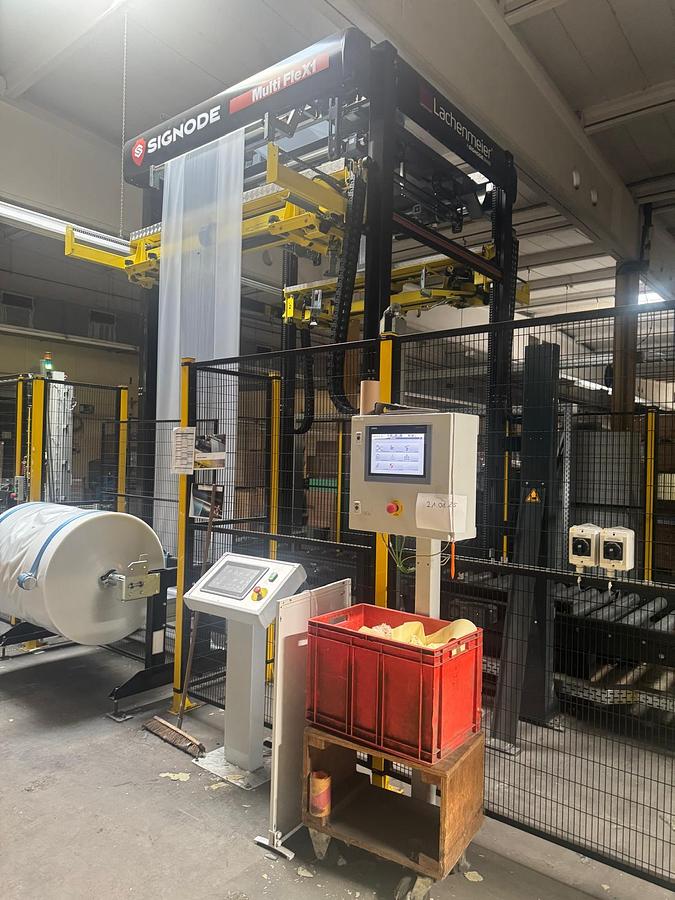

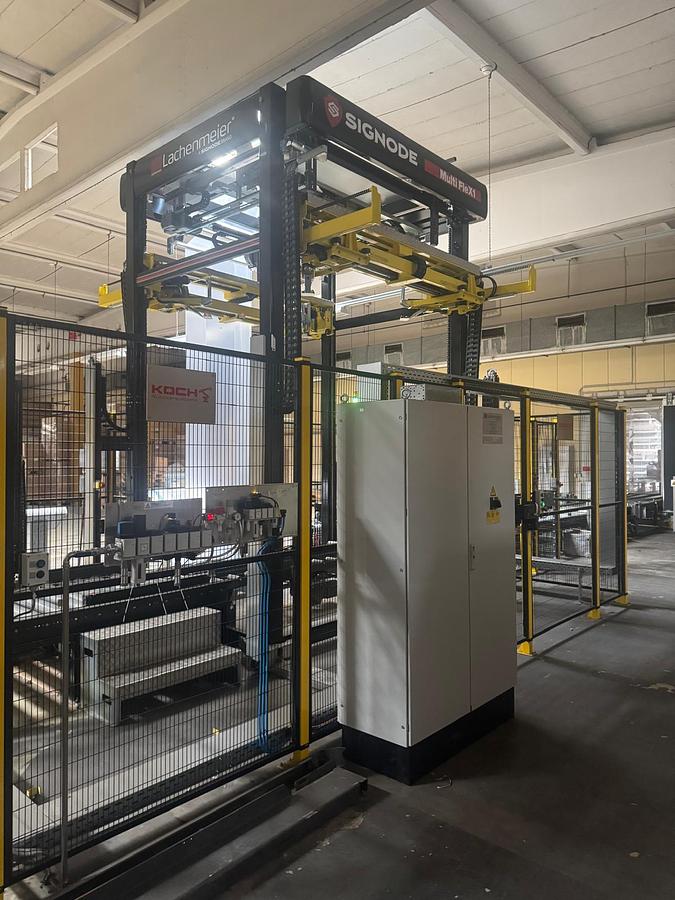

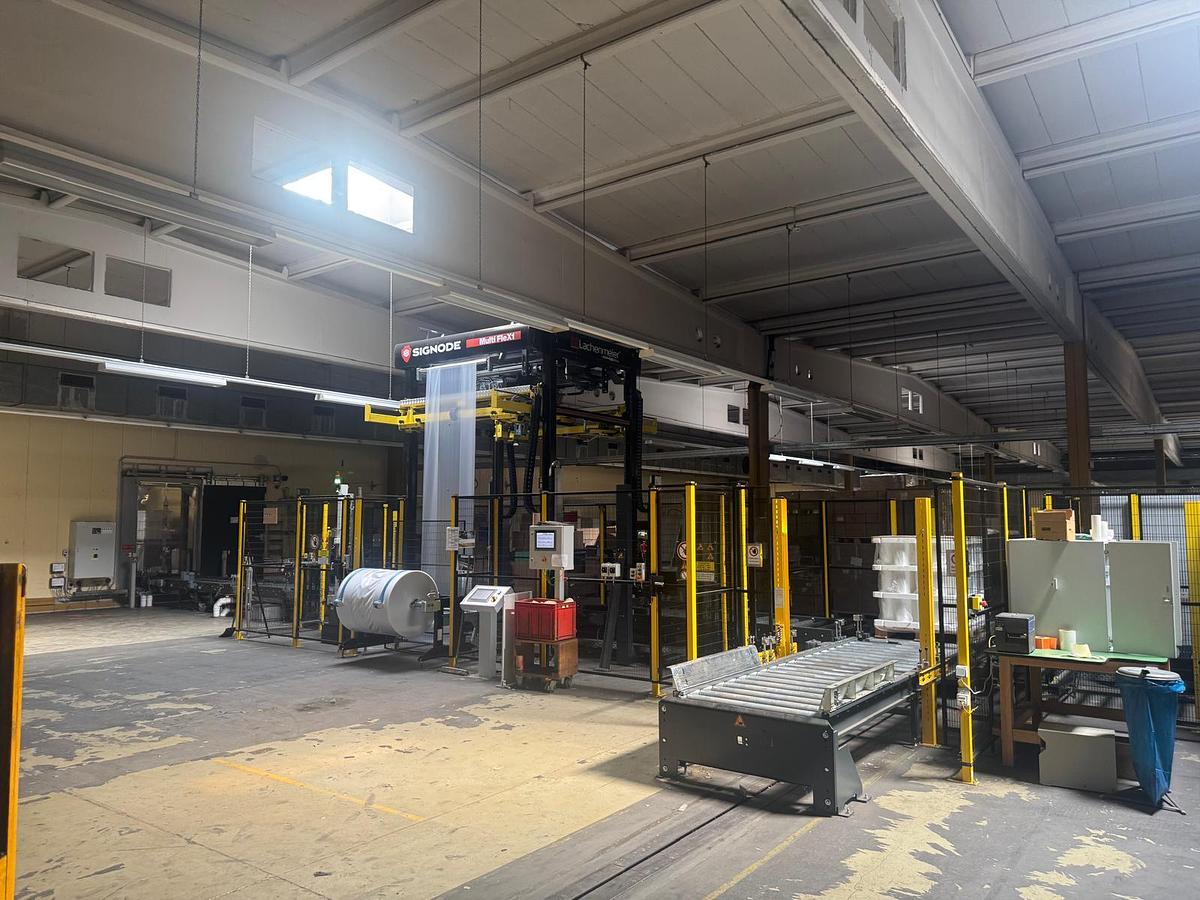

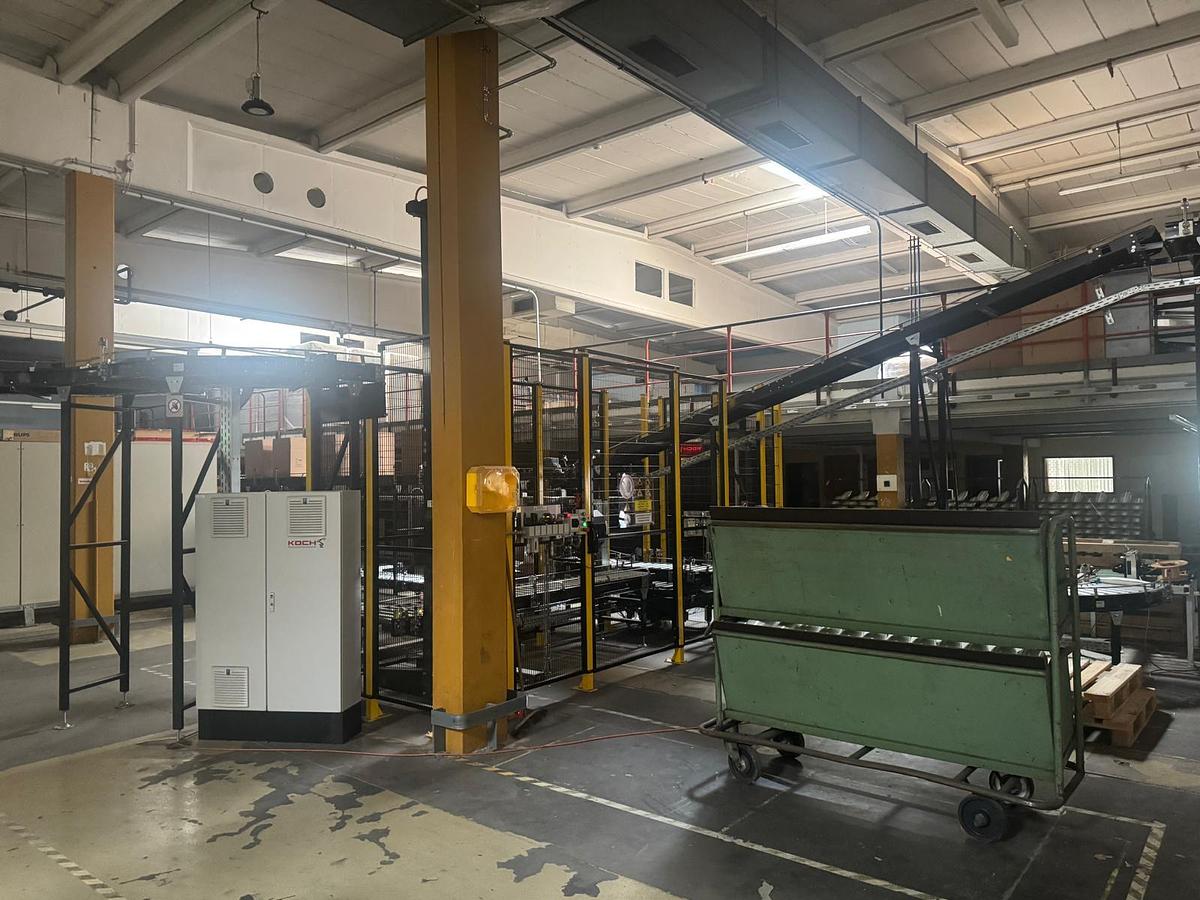

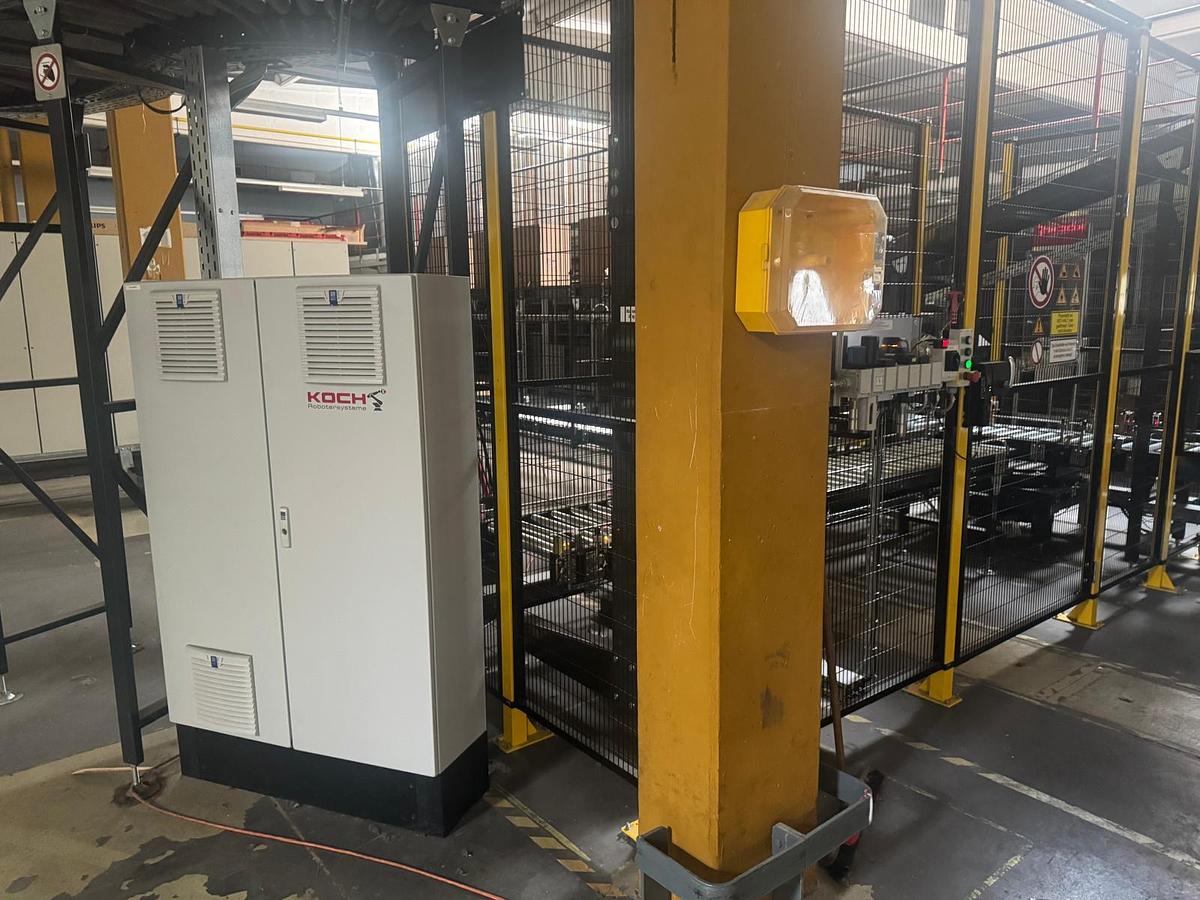

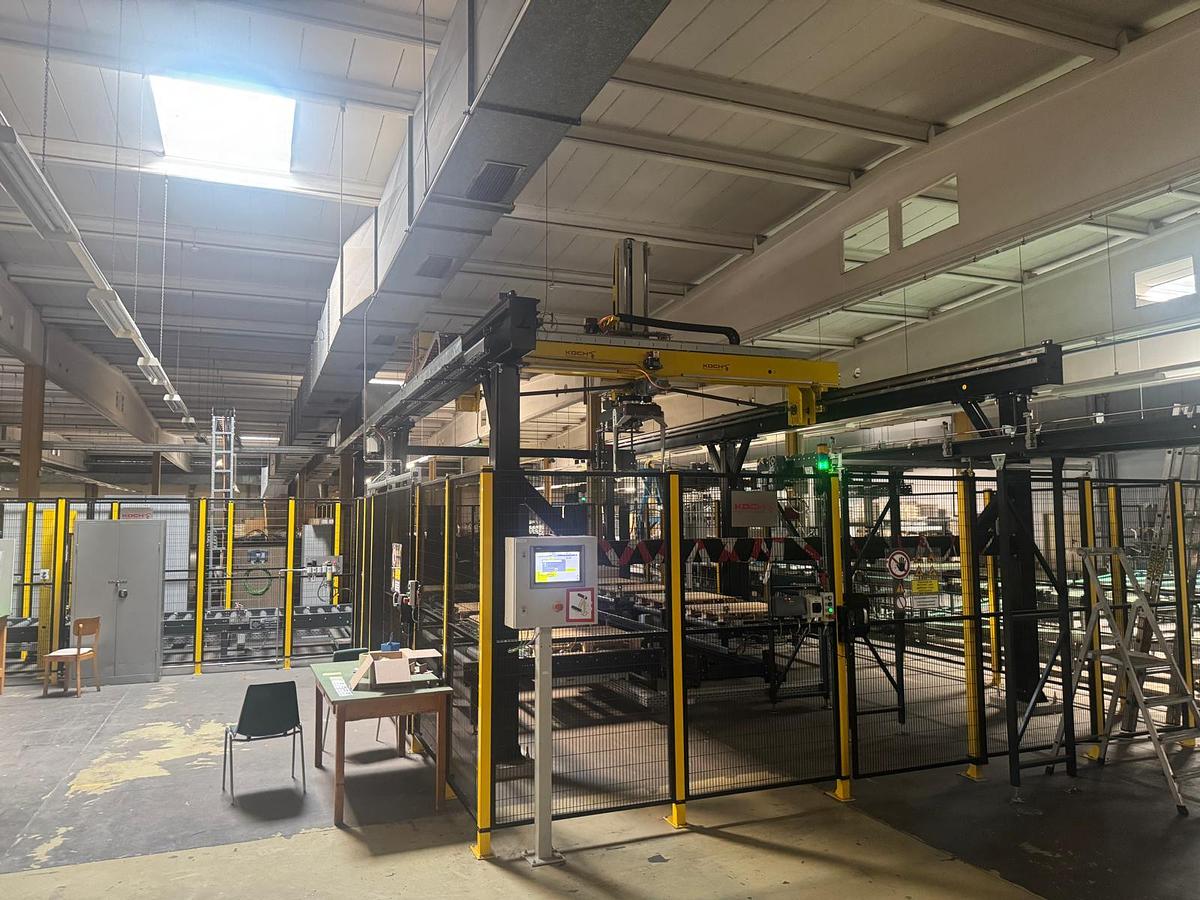

2023 KOCH Automated Carton Palletizing System

Manufacturer: KOCH

Type of Machine: Robotic Carton Palletizing System

Year of Manufacture: 2023

Intended Use: Palletizing of cartons. Designed for 2-shift operation, 16 operating hours per day, up to 5 days per week.

Performance: Maximum 156 products per hour, 15 load carriers per hour, 1 product per grip

Stacking Pattern: 4 to 5 products per layer, 2 layers per load carrier, 1 protective layer per load carrier

Technical Specifications:

• Maximum Height Including Load Carrier: 1,989mm
• Maximum Weight Including Load Carrier: 800 kg
• Robot Component - Series:axis system
• Robot Component - Year of Manufacture: 2022
• Robot Component - Weight: 68,000 N (without drives)
• Robot Component - Load Capacity: 150 kg
• Robot Component - Maximum Payload: 36 kg
• Packaging Unit Specification: Closed, dimensionally stable cartons. Item 1 dimensions 585 x 343 x 425mm, weight 36 kg. Item 2 dimensions 585 x 485 x 425mm, weight 36 kg.

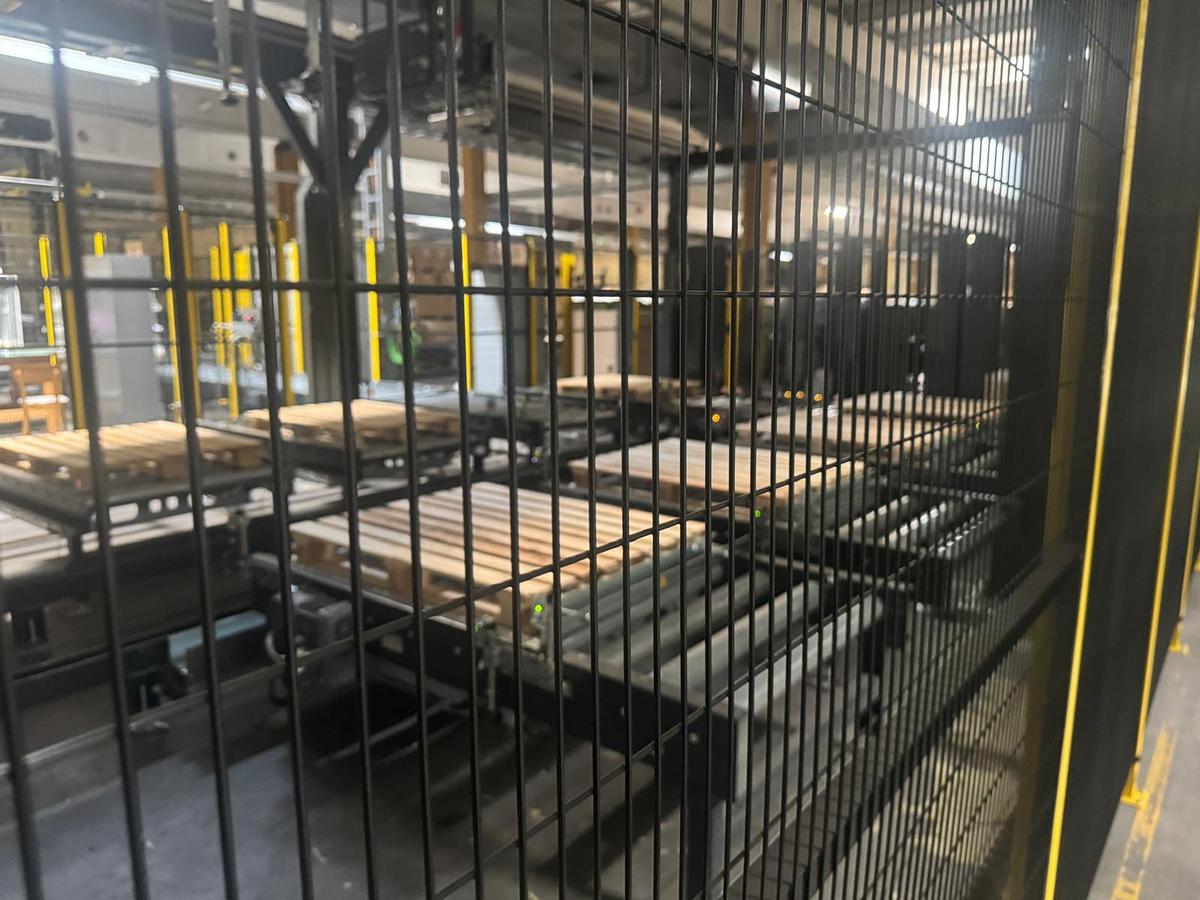

• Load Carrier Specification: Type CP1 reusable pallets, mixed new and used quality.
• Dimensions 1,200 x 1,000 x 138mm, weight 22 kg. Maximum 15 units per magazine.
• Protective Layer Specification: Chipboard material, moisture-sealed. Dimensions 1,200 x 1,000 x 10mm.

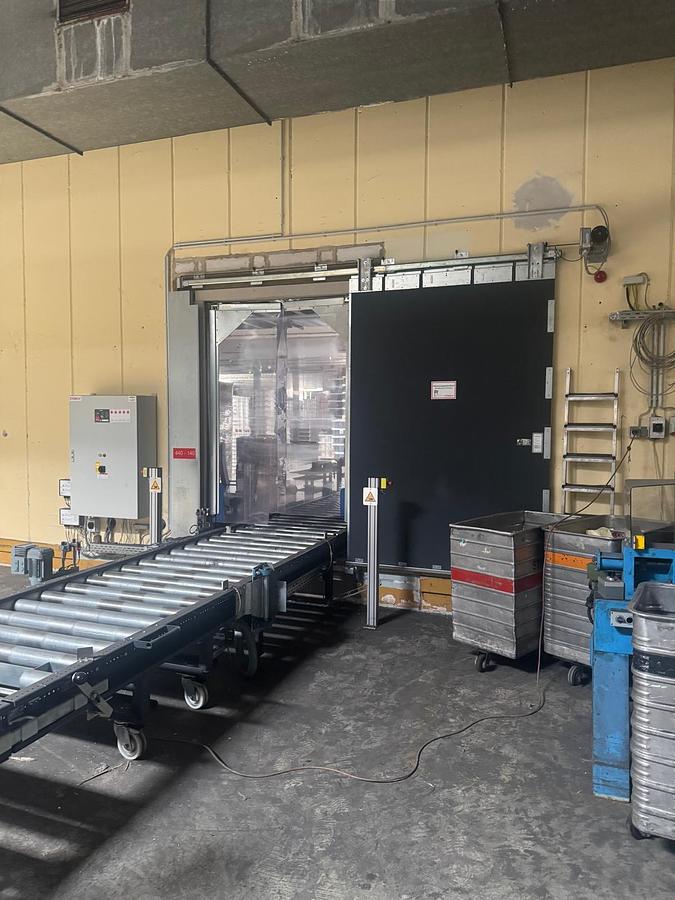

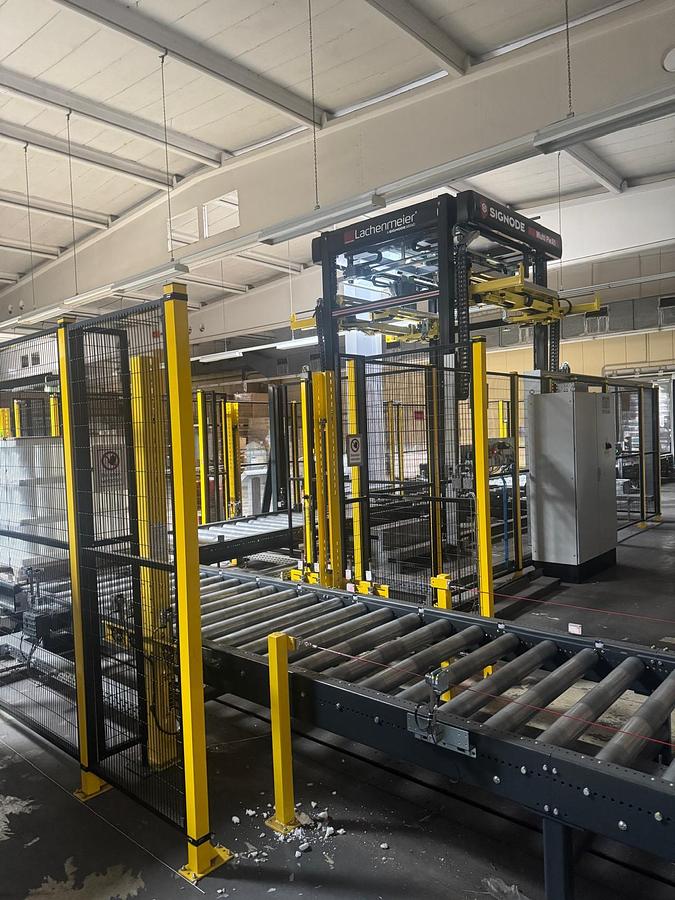

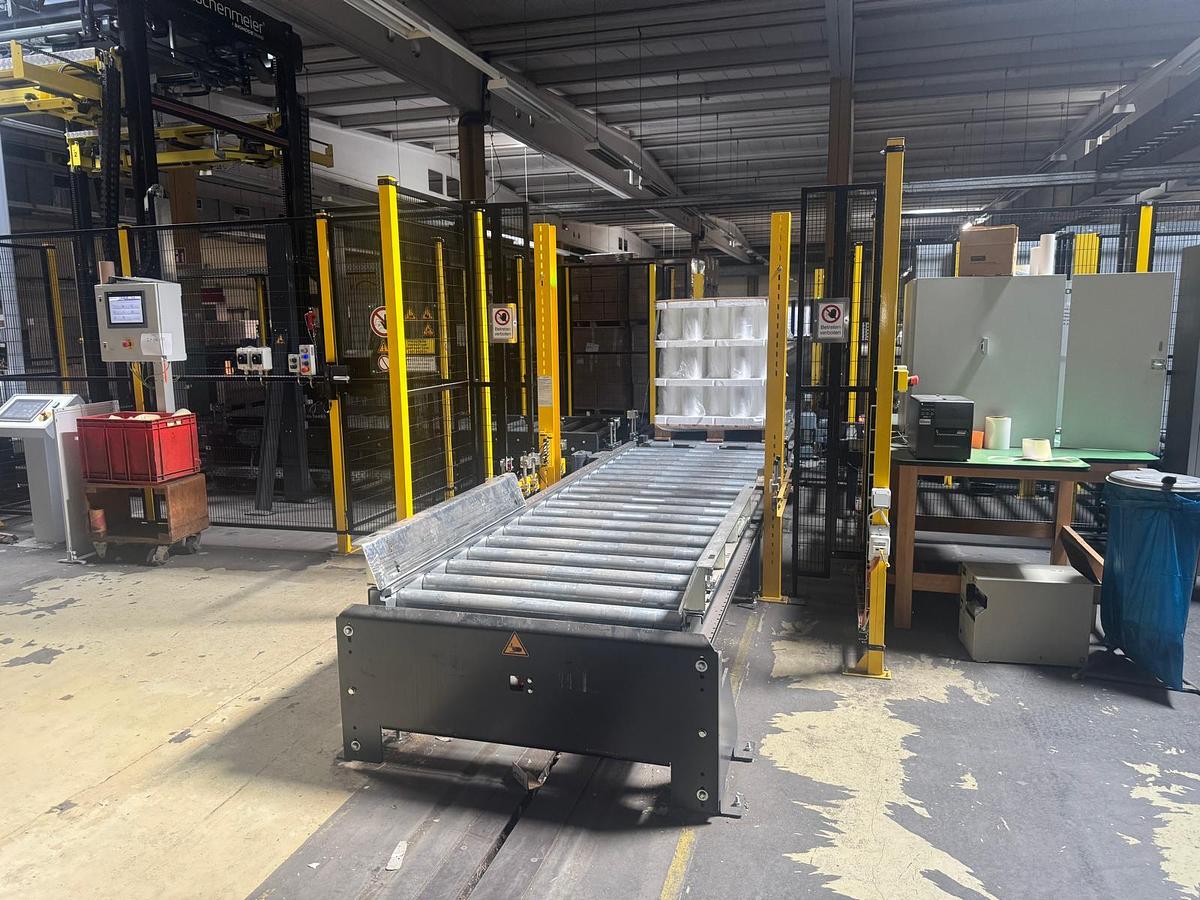

• Full Pallet Conveyor: Roller conveyor type. Conveying height 600mm. Usable width 1,060mm.
• Conveying speed 0.15 m/s. Maximum full pallet weight 1,000 kg.

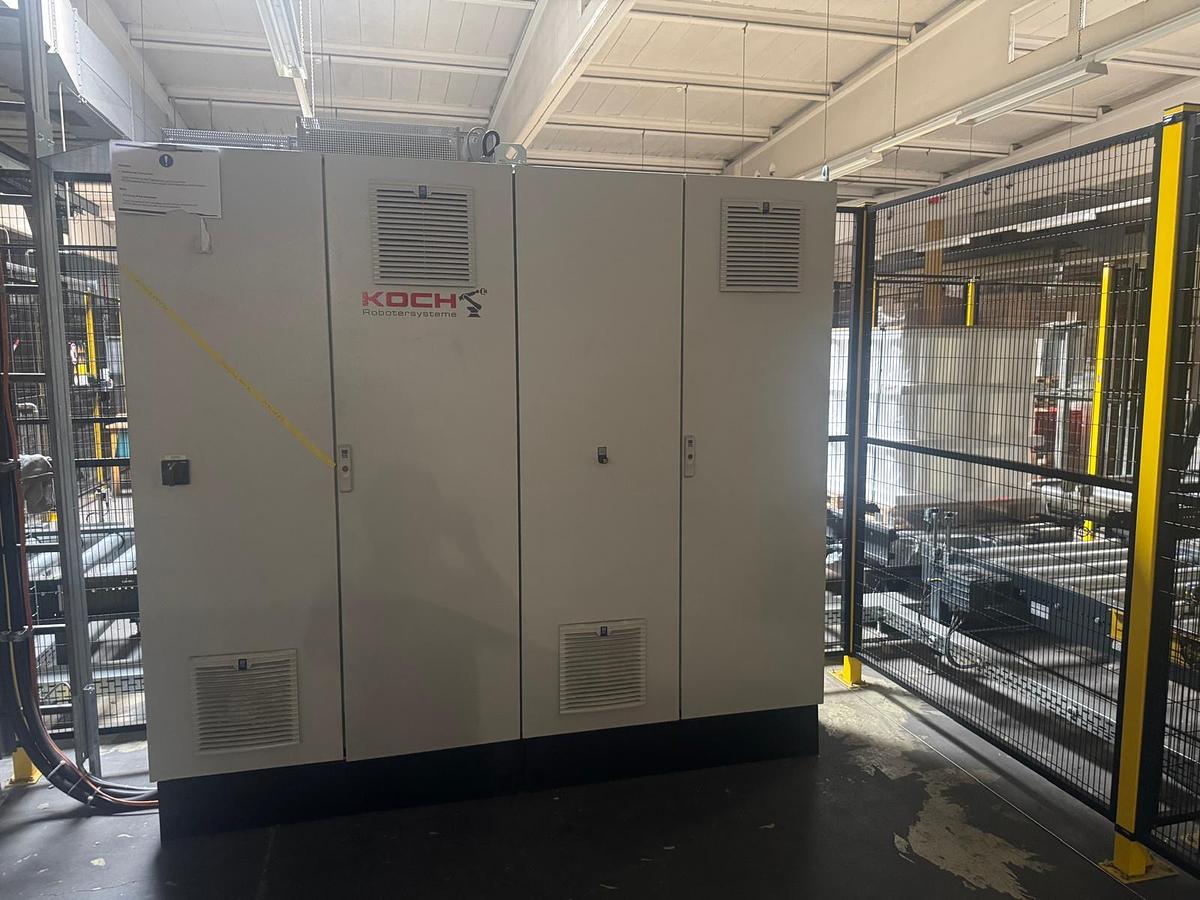

• Electrical Specification: Supply voltage 400V AC. Mains frequency 50Hz. Control voltage 24V
• DC. Mains type TN-S (L1, L2, L3, N, PE). Protection class IP54.
• Pneumatic Specification: Specified input pressure 6 bar. Maximum allowed input pressure 10 bar. Minimum input pressure 5 bar. Air condition: dry, oil-free.
• Environmental Requirements: Maximum ambient temperature +35C. Minimum ambient temperature +10C. Maximum temperature change 1.1 K per minute. Maximum relative humidity 70 percent. Atmosphere: dry, slightly dusty, non-aggressive, non-abrasive.

Explosion-free zone required
