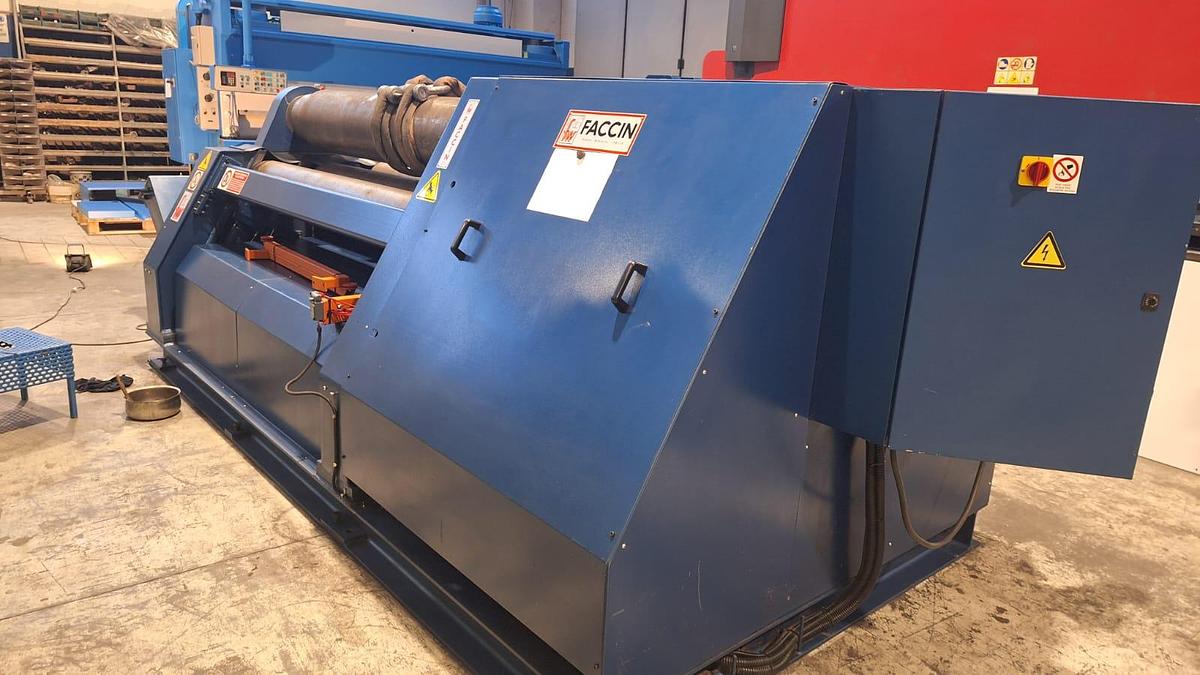

Faccin 4HEL2134 Plate Rolling Machine
Faccin 4HEL2134 Plate Rolling Machine
Contact us for price
Location:Italy
Specifications
| Manufacturer | Faccin |
| Model | 4HEL2134 |
| Condition | Used |
| Stock Number | 758705 |
| Geometry | Linear Guides |
| Maximum Plate Width | 2,100 mm |
| Maximum Plate Thickness | 28 mm |
| Top Roll Diameter | 350 mm |
| Pinch Roll Diameter | 330 mm |
| Side Roll Diameter | 240 mm |
| Main Drive Power | 18.5 kW |
| Rolling Speed | 7 m/min |
| Machine Weight | 11,500 kg |
| Length | 4,200 mm |
| Width | 1,950 mm |
| Height | 1,650 mm |

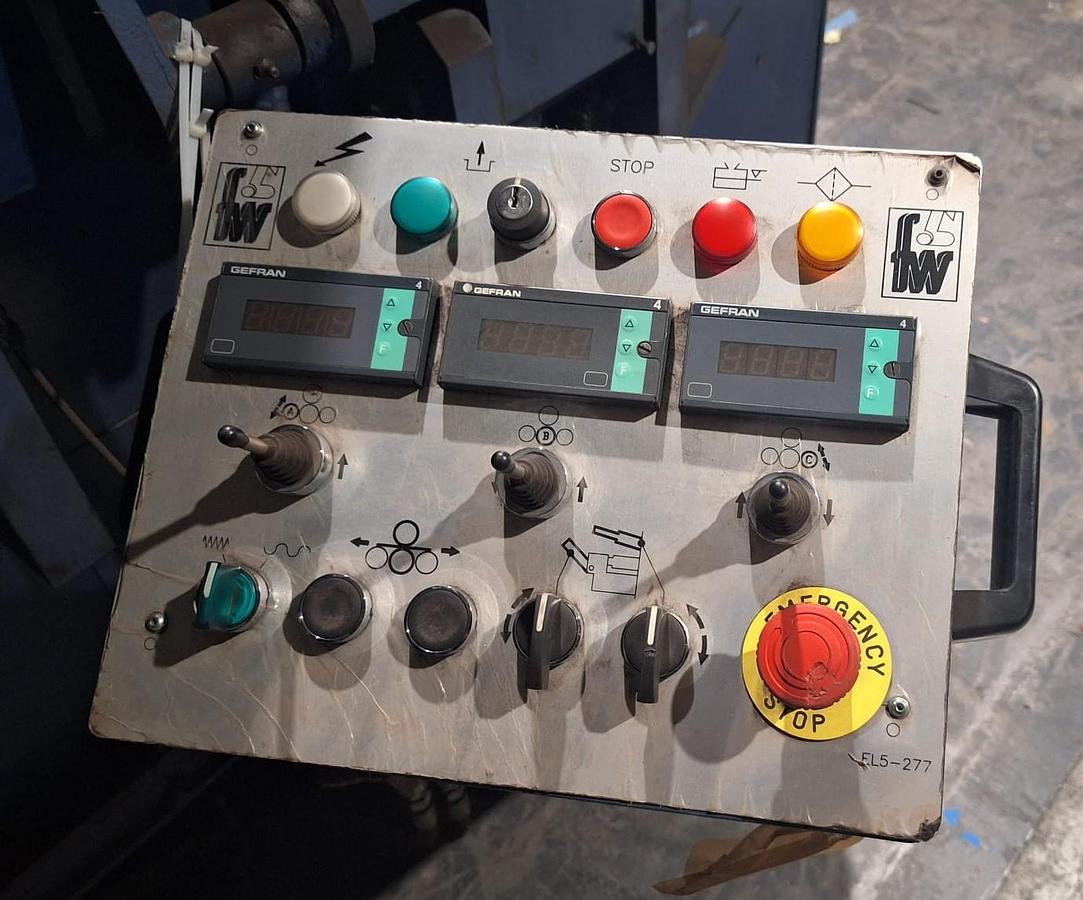

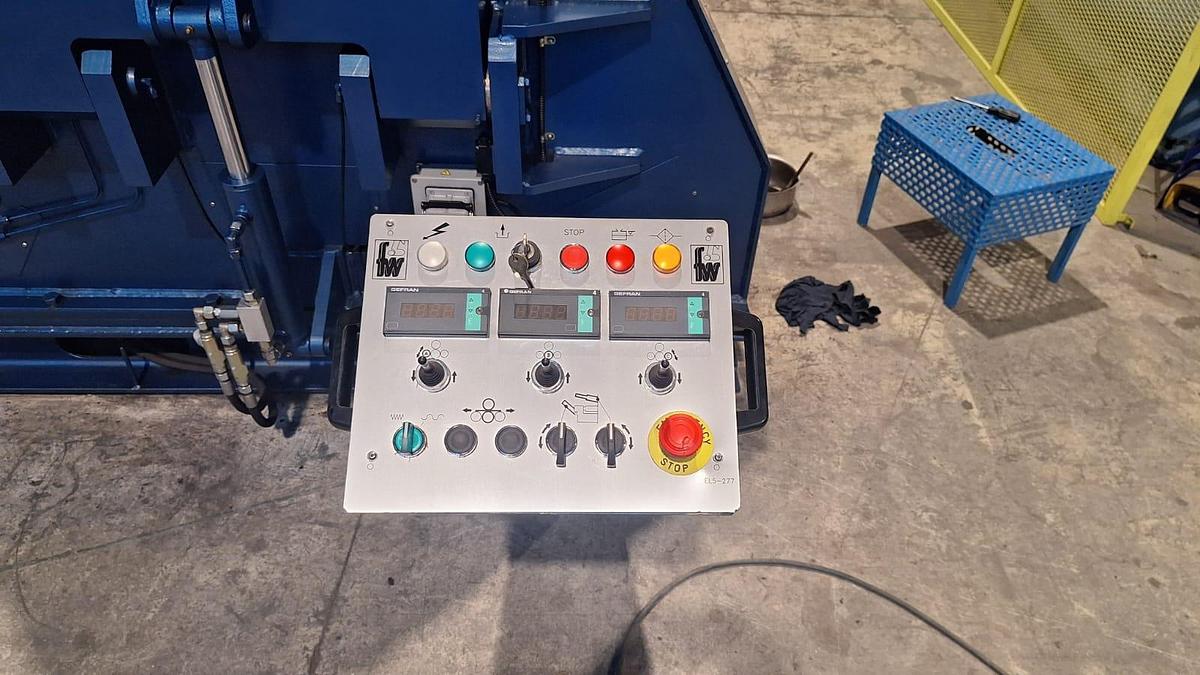

| Accessories | Digital roll position indicators (visualized rolls) |
| Performance - Carbon Steel 260 N/mm2, full width, min. shell dia. 1,700 mm | Rolling 25 mm, pre-bending 20 mm |
| Performance - Carbon Steel 260 N/mm2, full width, min. shell dia. 400 mm | Rolling 20 mm, pre-bending 16 mm |
| Performance - High-Strength Steel 360 N/mm2, full width, min. shell dia. 1,700 mm | Rolling 20 mm, pre-bending 16 mm |
| Performance - High-Strength Steel 355 N/mm2, full width, min. shell dia. 400 mm | Rolling 18 mm, pre-bending 14 mm |
| Performance - Carbon Steel 260 N/mm2, half width, min. shell dia. 1,700 mm | Rolling 30 mm, pre-bending 25 mm |
