2022 Koenig & Bauer Omega Intro 800

Manufacturer: Koenig & Bauer

Model: Omega Intro 800

Year of Manufacture: 2022

Type of Machine : Folding Carton Folder-Gluer Machine

Technical specifications

• Lower belts: 20 mm, upper belts: 19 mm
• Easy adjustment of upper transport units for different carton thicknesses
• Standard bearing sizes
• Maximum belt speed: 300 m/min
• Air consumption: 6–8 bar
• Machine length including side register: 12,800 mm
• Solid machine frame thickness: 15 mm
• CE certified
• EC Machinery Directive 2006/42/EC
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Easy belt change without removing shafts
• Position indicators included

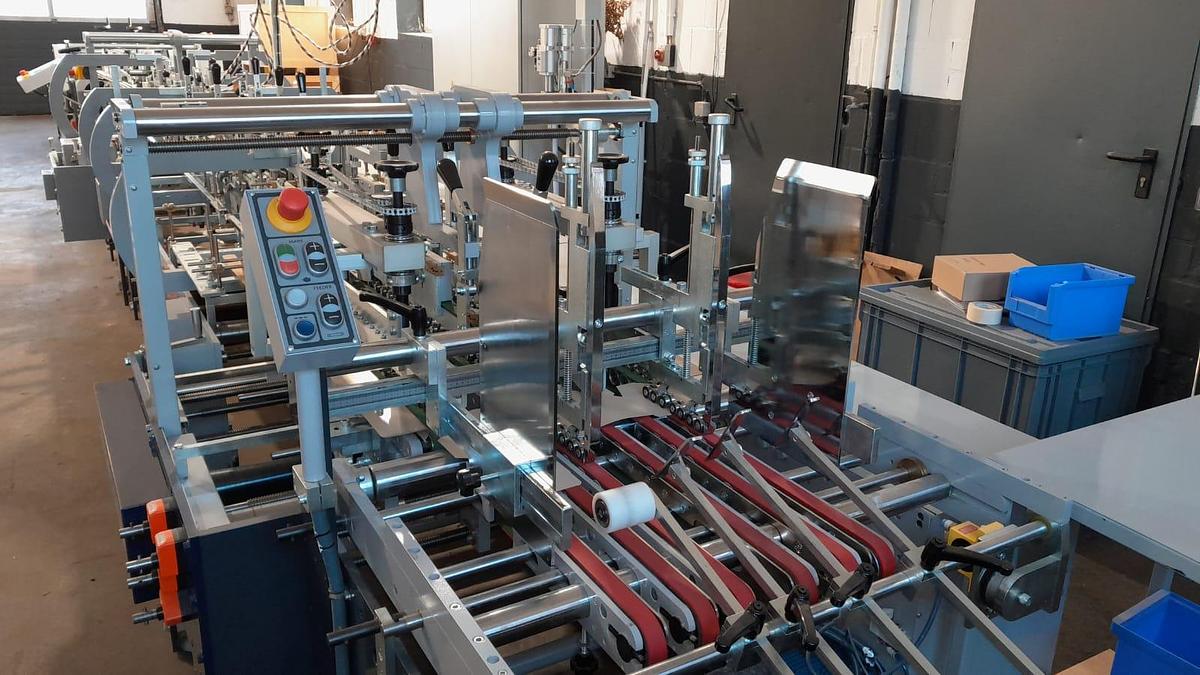

Feeder section

• 6 feeder belts, 26 mm
• Adjustable vibration motor and infeed assistance to separate blanks and prevent gaps or double feeding
• 2 adjustable stacking supports in different sizes
• Two hardened side guides, independently adjustable in four directions for accurate blank control
• Modular infeed guides with individually adjustable belt tension
• Feed magazine adjustable independently in four directions
• Length: 1,230 mm

Pre-breaking unit PF1 + PF2

• 2 lower and 2 upper transport units
• Pre-breaking up to 180 degrees for the first crease
• Pre-breaking up to 135 degrees for the third crease for longitudinal seam cartons
• Third crease belt width: 24 mm
• Glue flap pre-breakers on left and right side
• High-speed opener for third crease line
• Length: 3,000 mm

Folding bottom unit

• Hook-type folding system
• 3 sets (12 pieces) of folding curves in different sizes
• 6 folding hook holders
• Folding hooks available in different sizes

Final folding section

• Extra-long final folding section for smooth and accurate folding
• Lower belts: 24 mm, upper belts: 19 mm
• Independently adjustable belt speeds for folding zone, 20 mm and 30 mm
• Chrome-plated pressure rollers, adjustable in four directions
• Large glue pot on left side, diameter 226 mm
• 2 bronze standard glue discs, available in sizes from 2.5 mm to 13 mm
• Polyamide guides
• 2 sets of adjustable folding swords in different sizes
• Length: 2,700 mm

Delivery section

• Special delivery design for improved control of finished cartons
• Long delivery belts and stable construction for improved stacking under pressure belt
• Side guides for delivery of irregular cartons
• Adjustable end rollers for precise pressure belt feeding, including during carton overlap
• 2 lower and 2 upper extendable delivery belts, adjustable in four directions
• Belt tension adjustable during operation
• Electronic control system for continuous carton flow to pressure belt
• Length: 1,400 mm

Stacker / compression section

• Double infeed support with adjustable rollers for stacking irregular cartons
• Integrated pressure belt with pneumatic pressure adjustment
• Independent speed regulation based on carton flow
• Automatic side guides with independent adjustment for upper and lower transport belts
• Independent pressure belt adjustment
• Mounted on wheels, movable
• Working width: 600 mm
• Upper pressure belt length: 2,630 mm
• Total length: 4,300 mm

Electronic system

• Separate electrical cabinets
• Siemens control system S7-1200 series
• Omega control panel with 7 inch touchscreen for input and diagnostics
• Remote service via VPN router for fast access and diagnostics using eWON devices
• Omega counter with pneumatic kicker synchronized to machine speed
• Remote control unit included
• Programmable safety signal system
• User-friendly warning system for unwanted machine events
• 4 AC motors with Siemens drives
