2008 Hwacheon CUTEX 160

Manufacturer: Hwacheon

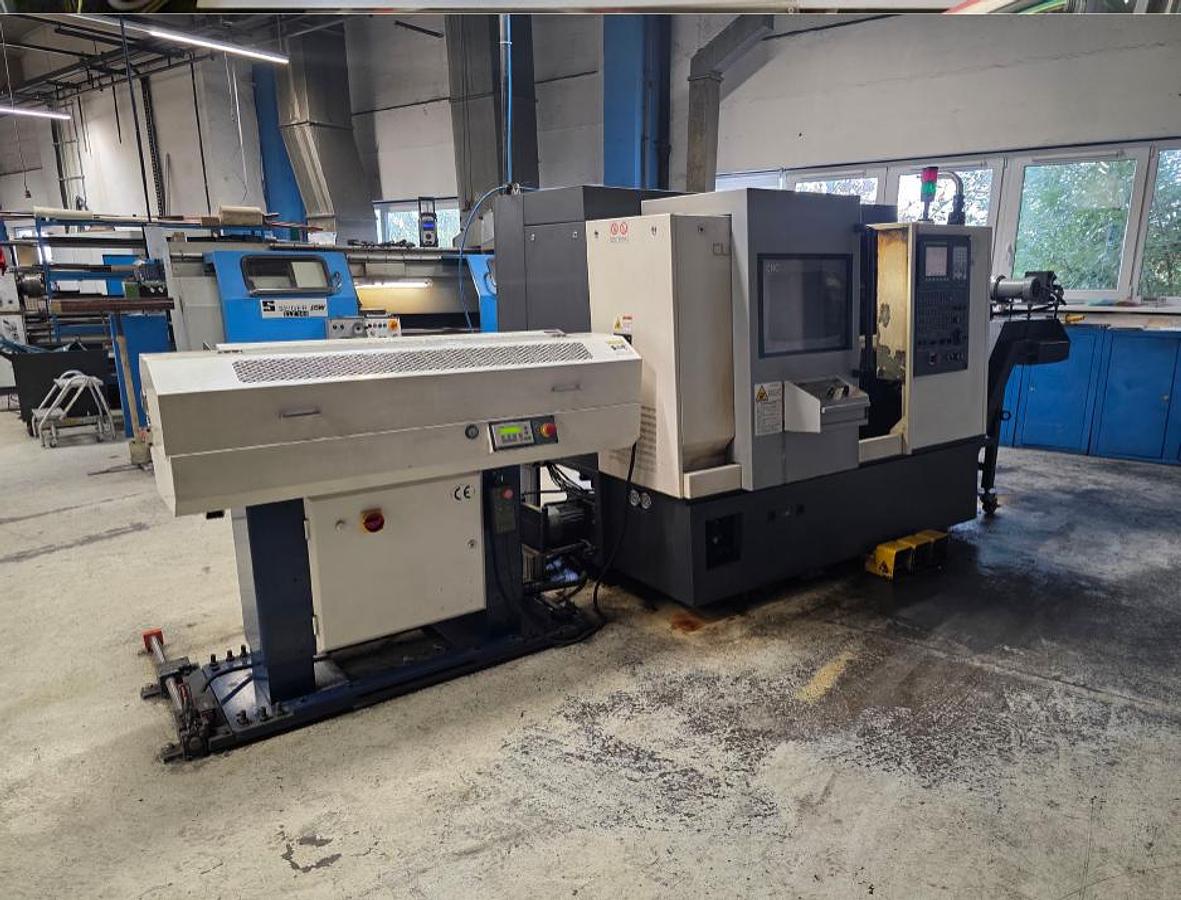

Model: CUTEX 160 with bar feeder (Samsys Multi 3000)

Year of Manufacture: 2008

Working Range

• Swing over bed 550 mm
• Max. turning diameter 300 mm
• Standard turning diameter 165 mm
• Max. machining length 300 mm

Spindle

• Standard spindle nose A2-5 (DIN 55026)
• Max. spindle speed 6,000 rpm
• Spindle bore 56 mm
• Main Drive
• Drive power (AC) 100% / 50% ED 5.5 / 7.5 kW

Feed Drives

Rapid traverse 36 m/min

Feed drive power (X/Z) 1.6 kW

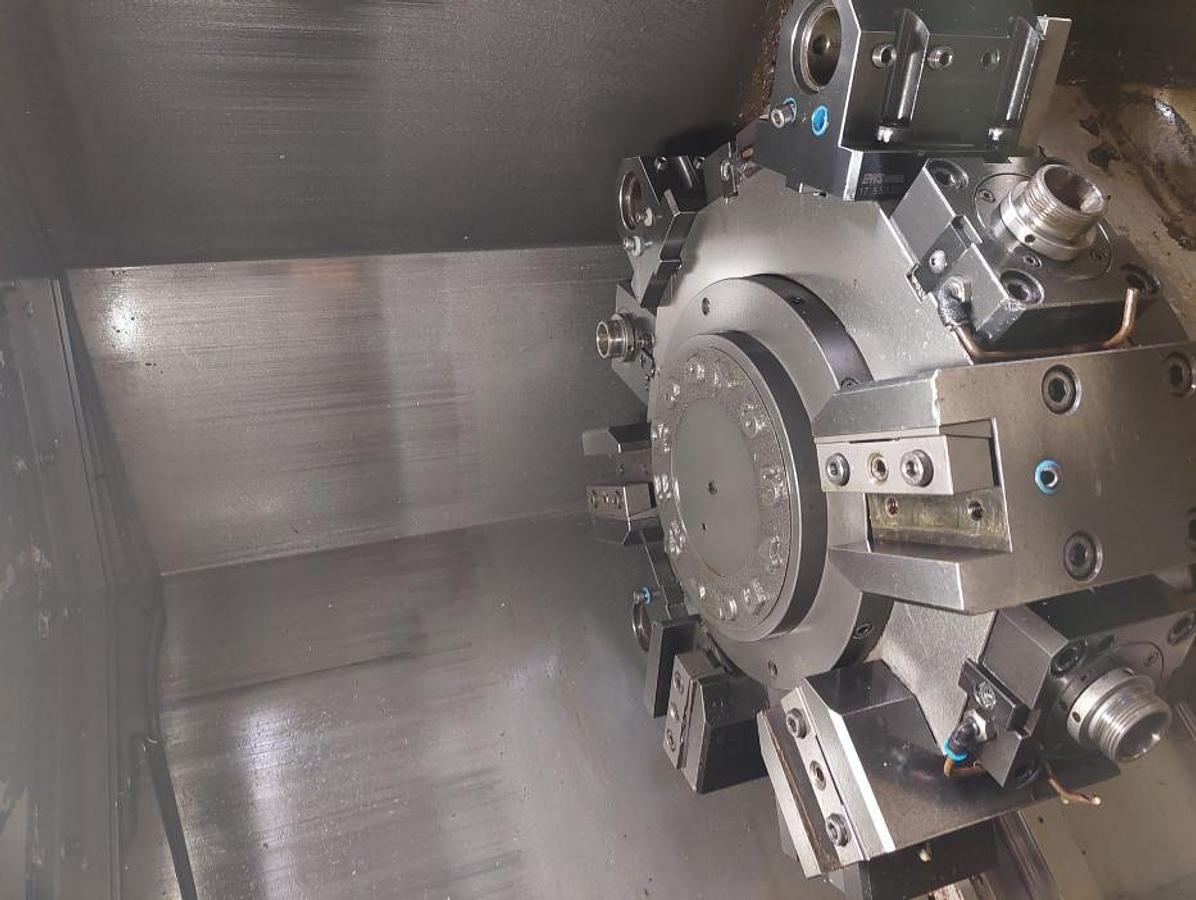

Tool System

Turret with direction logic

Number of tool stations 12

Tool holder size 25 x 25 / 32 mm

Turret disc option VDI 30

Index time station to station 0.2 sec.

Index time chip to chip 1.6 sec.

Clamping System

Hollow clamping cylinder, through-bore draw tube 46 mm

Tailstock

Quill diameter 60 mm

Quill travel 80 mm

Taper MK 4

General Machine Data

Machine weight 3,300 kg

Machine dimensions (L x D x H) 2 x 1.7 x 1.7 m

Electrical connection power 25 KVA
