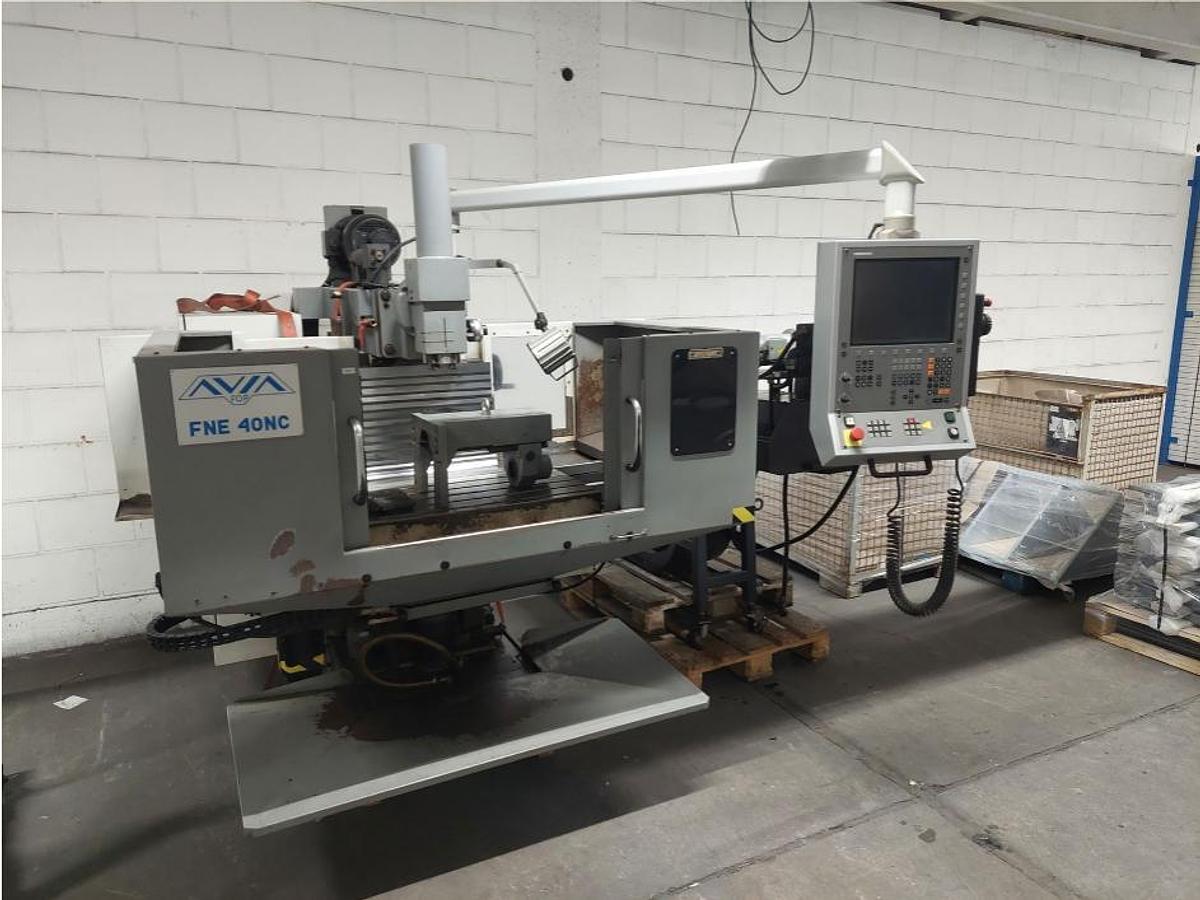

2006 AVIA FNE 40P
2006 AVIA FNE 40P
Contact us for price
Location:Germany
Description
Manufacturer: AVIA
Model: FNE 40P
Year of Manufacture: 2006
Fixed Angle Table
- Clamping surface: 400 x 800 mm
- T-slots: quantity / width / spacing: 5 / 14 x 80 mm
- Max. workpiece weight: 400 kg
- Max. / min. spindle nose to table distance: 500 / 115 mm
Vertical Console Table
- Clamping surface: 300 x 450 mm
- T-slots: quantity / width / spacing: 5 / 14 x 80 mm
Spindle Head (Horizontal)
- Tool holder: SK 40 / DIN 69871
- Spindle speed (2 ranges) stepless: 50 - 4,000 rpm
- Tool clamping force: 10,000 N
- Speed range switching: electro-hydraulic
Axis Travel
- X-axis: 620 mm
- Y-axis: 420 mm
- Z-axis: 400 mm
Feed Rates
- Feed control: stepless
- Feed X, Y: up to 6,000 mm/min
- Feed Z: up to 4,000 mm/min
- Rapid traverse X, Y: 6,000 mm/min
- Rapid traverse Z: 4,000 mm/min
Drive Motors
- Spindle motor S1 (100%): 6 kW
- Spindle torque S1 (100%): 145 Nm
- Hydraulic unit: 0.55 kW
- Coolant pump motor: 0.2 kW
Vertical Milling Head
- Tool holder: SK 40 / DIN 69871
- Spindle speed (2 ranges) stepless: 50 - 4,000 rpm
- Quill travel (manual): 80 mm
- Maximum tilt angle: +/- 45 degrees
- Tool clamping force: 10,000 N
- Weight of vertical head: 92 kg
Electrical Data
- Power supply: 3 x 400 VAC
- Control voltage: 24 VDC
- Frequency: 50 Hz
- Rated current: 35 A
- Total connected power: 9 kW
General Machine Data
- Machine weight: 2,100 kg (nameplate) / 1,900 kg (datasheet)
- Machine length: 2,850 mm
- Machine width: 2,200 mm
- Machine height: 2,000 mm
- Max. noise level: 82 dB
- Machine color: Graphite grey RAL 7024 / Light grey RAL 7035
Control System
- CNC control: Heidenhain
- 3-axis digital readout: Heidenhain ND 523
- Electronic handwheel integrated in control panel
- Swiveling / movable control panel
Standard Equipment Included
- Vertical milling head with tilt device
- Horizontal spindle with cover
- Hydraulic tool clamping for vertical and horizontal spindle including hydraulic unit
- Ball screws on all three axes (AVIA manufacture)
- Flat guideways X and Z, counter-guideways coated with Turcite plastic
- Protective bellows for horizontal guideways
- Protective bellows with aluminium lamellae for vertical guideways
- Automatic central lubrication for spindle and feed gearboxes
- Manual central lubrication for guideways
- Complete coolant system with pump
- Separate oil leak container
- Angle table 800 x 400 mm with work area guard
- Tailstock with support bearing
- Halogen machine lamp 24V
- Safety handwheels on all 3 axes
- Set of machine leveling feet
- Set of operating keys
- Operating manual
- Test report / inspection protocol
- CE certification

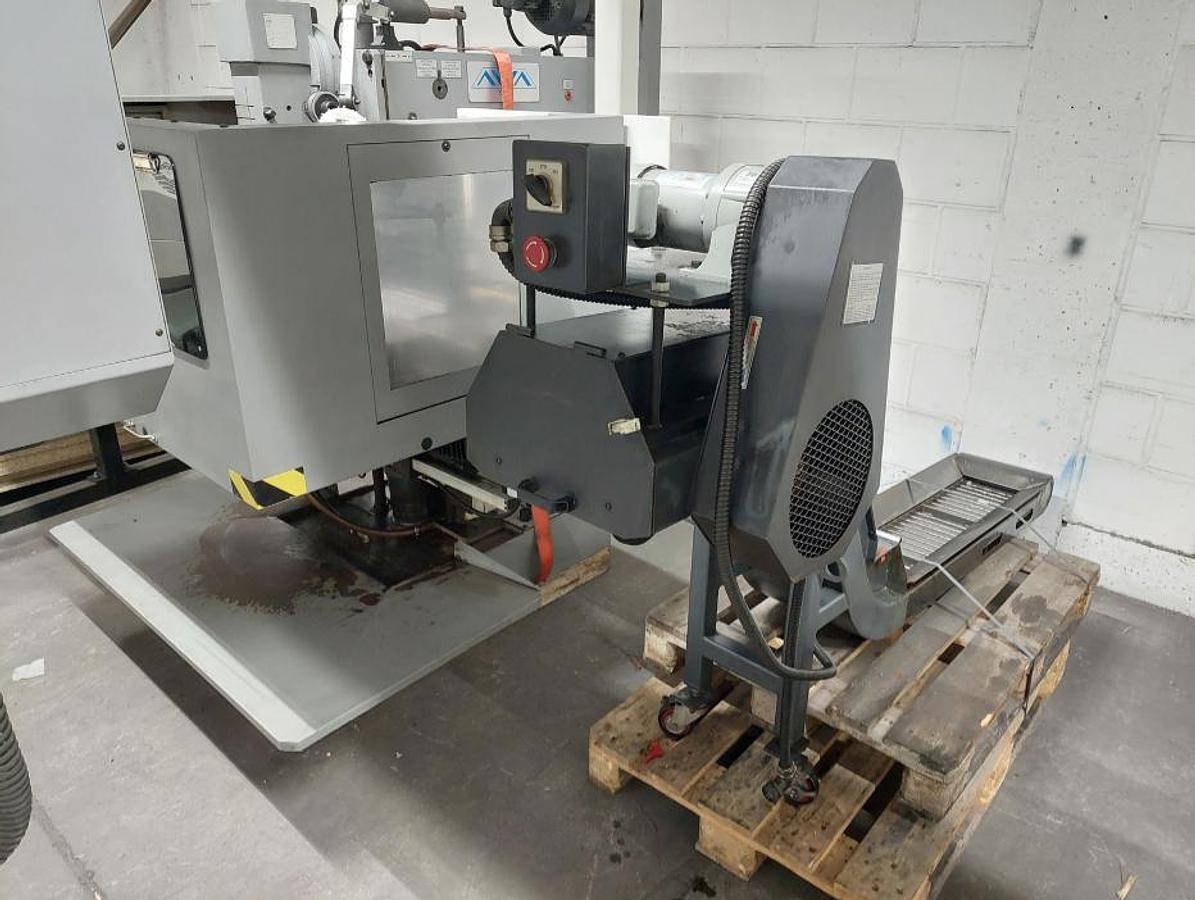

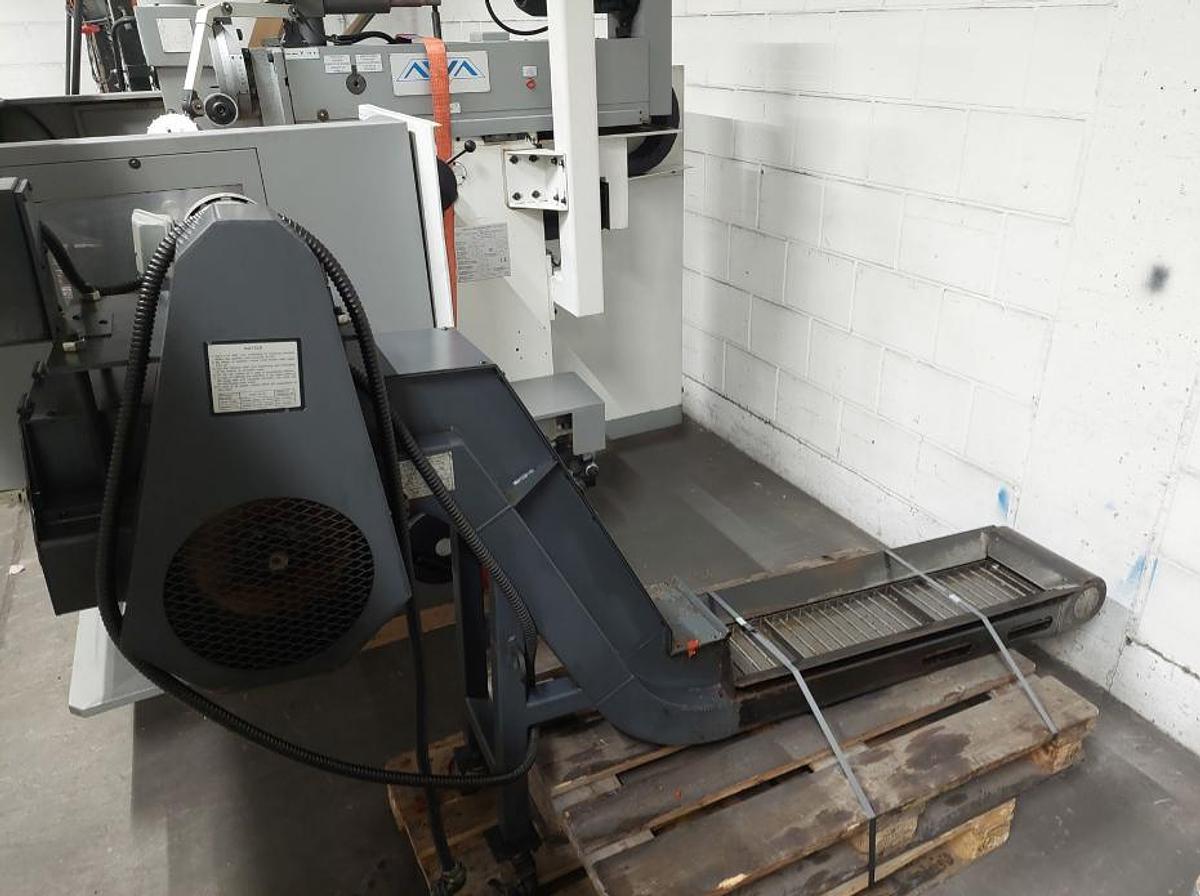

Chip Conveyor
Separate chip conveyor included

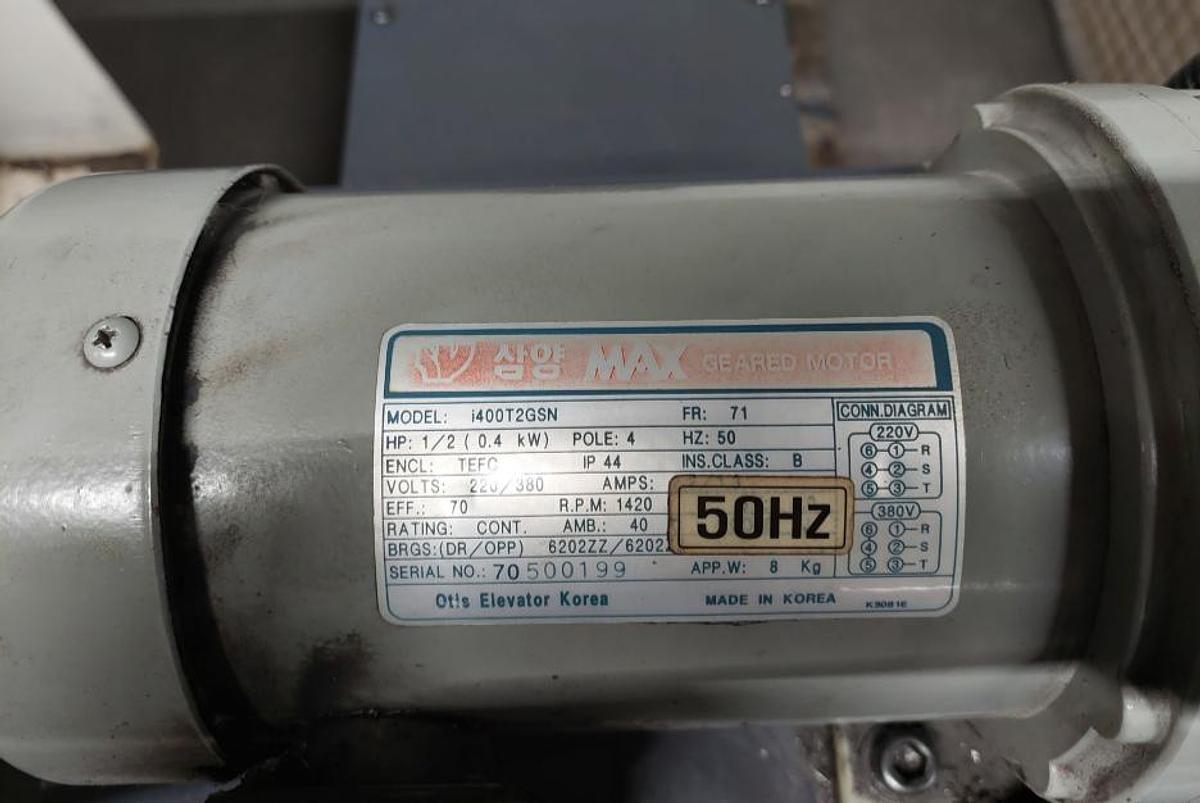

Conveyor motor: 0.4 kW / 1,420 rpm (Otis Elevator Korea geared motor, model i400T2G5N)
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
| Manufacturer | AVIA |
| Model | FNE 40P |
| Year | 2006 |
| Condition | Used |
| Stock Number | 757561 |
