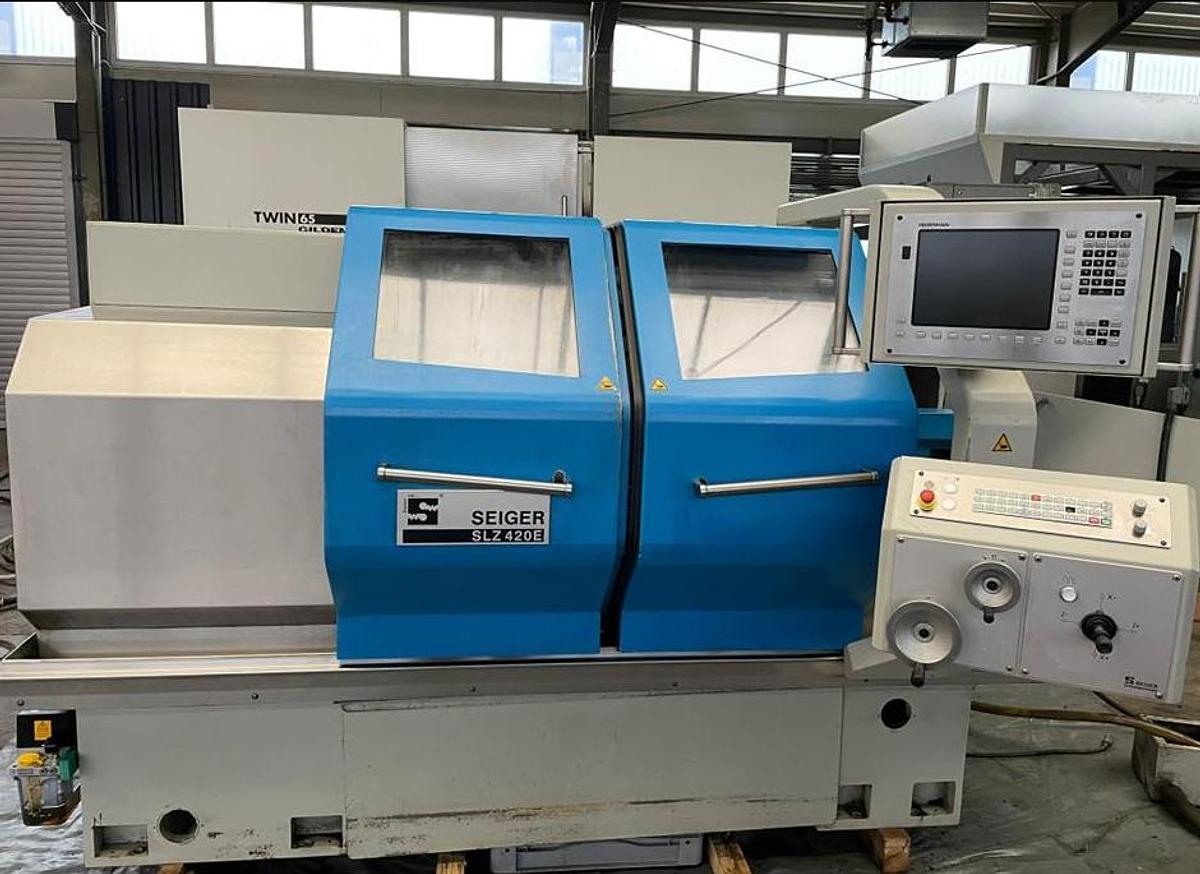

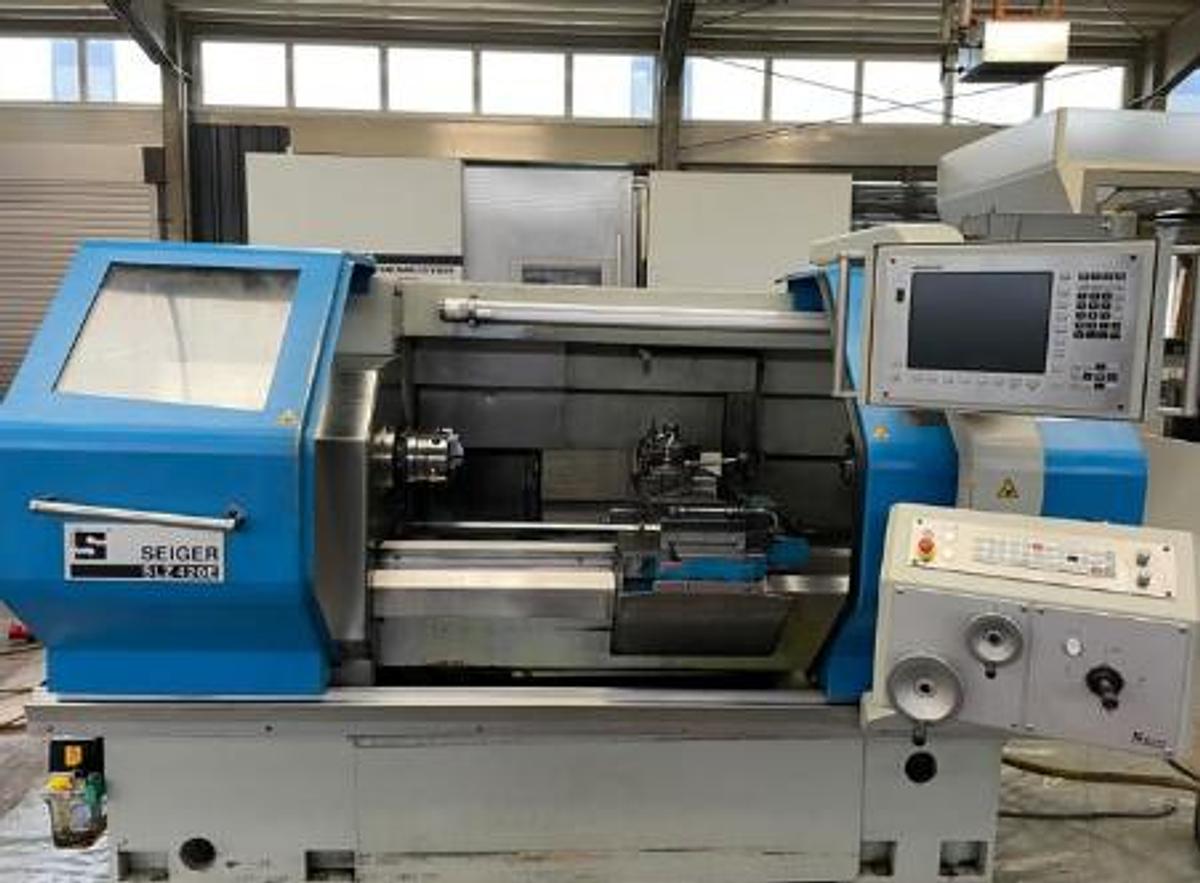

2015 Seiger SLZ 420E

Manufacturer:  Seiger

Model: SLZ 420E

Year of Manufacture: 2015

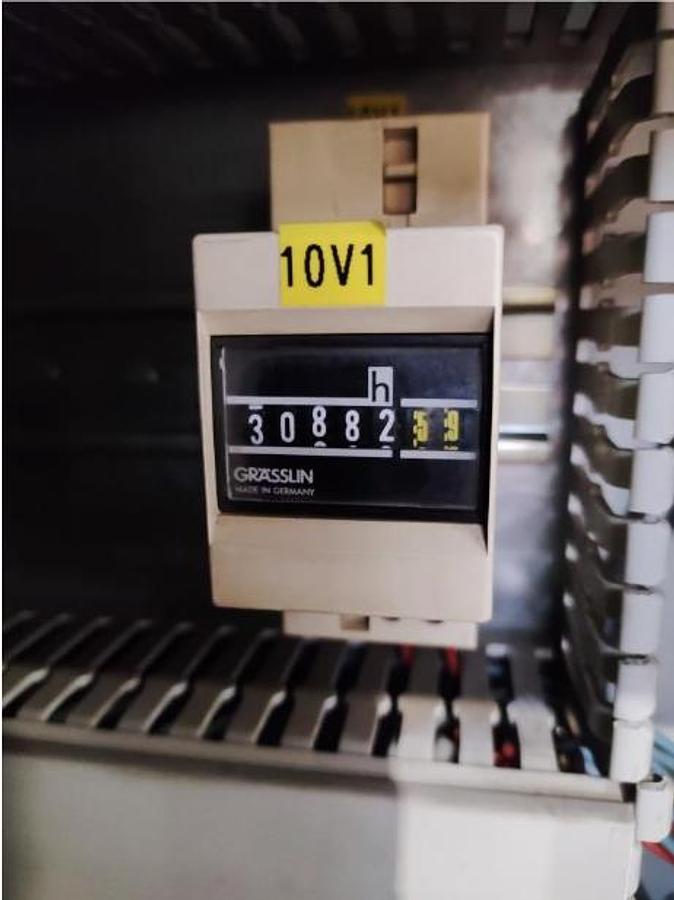

Operating hours: approx. 30,882 hours (as shown on hour counter)

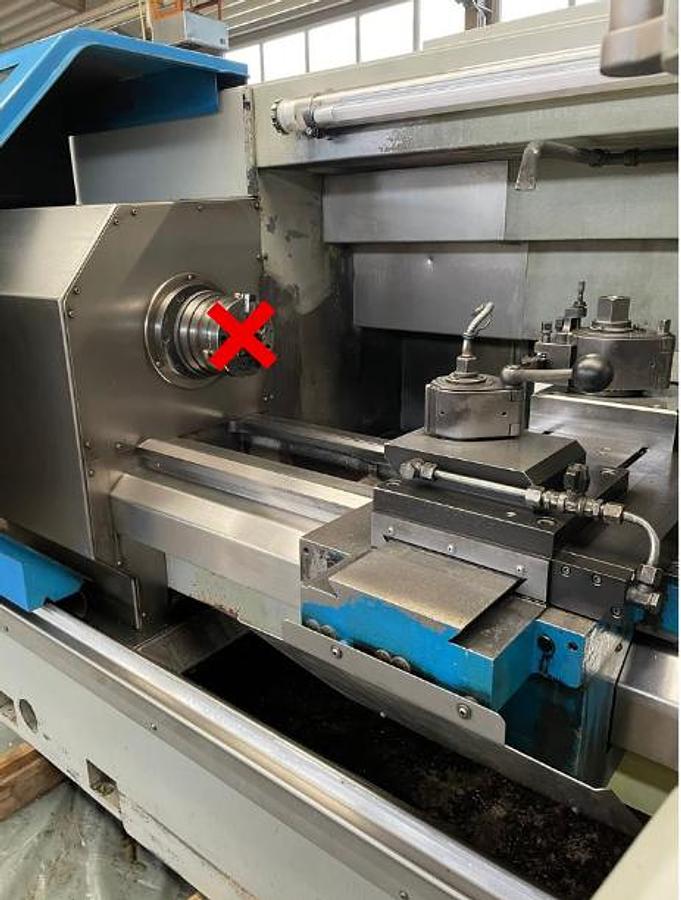

Note: Machine is sold without chuck

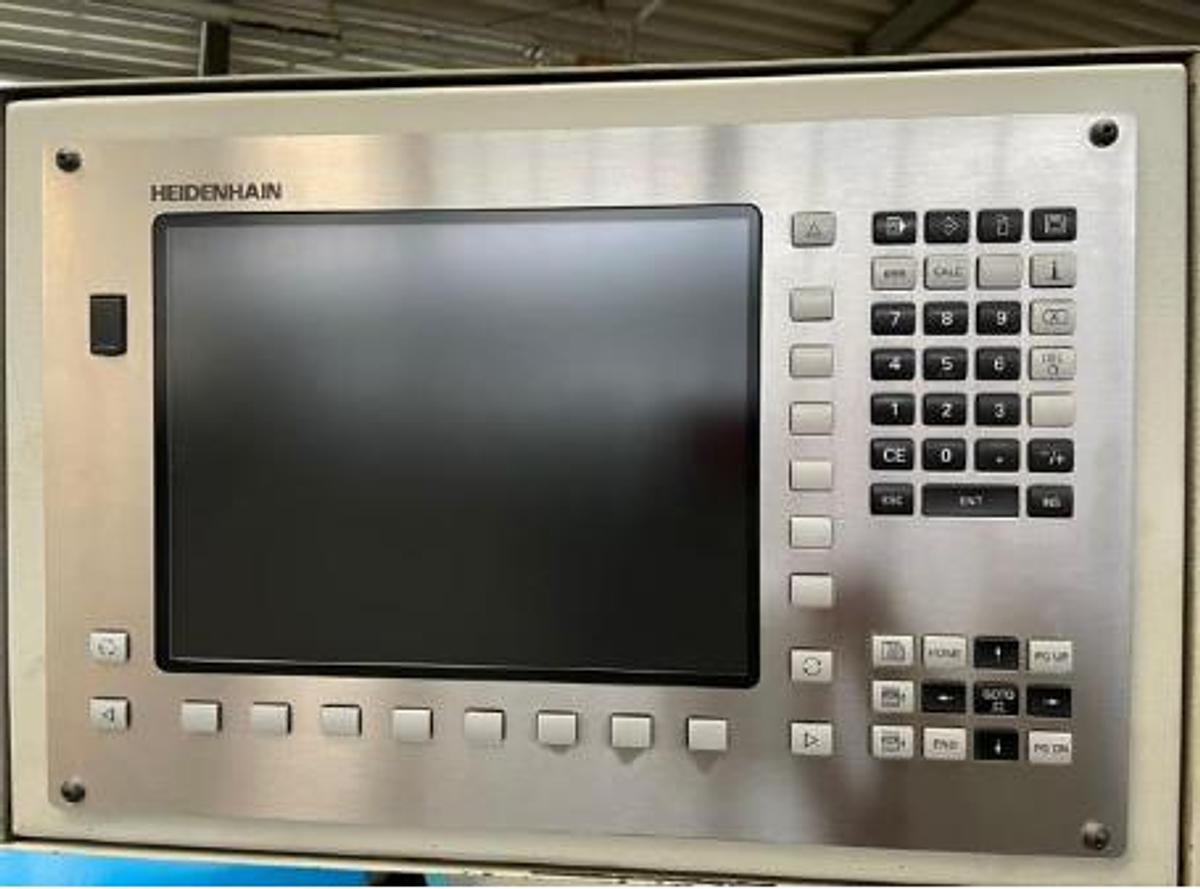

Control system: Heidenhain

Working Range

• Distance between centers: 1,000 mm
• Swing over bed: 430 mm
• Swing over cross slide: 220 mm
• Cross slide travel: 230 mm
• Bed width: 350 mm

Turning Tool

• Tool shank cross-section (height x width): 20 x 20 mm

Spindle

• Spindle nose: DIN 55027 size 6
•

• Spindle diameter at front bearing: 110 mm
•

• Spindle bore: 80 mm

Main Drive (AC)

• Drive power 100% / 60% ED: 9 / 11 kW
•

• Max. torque at spindle: approx. 200 Nm
•

• Max. torque with 2-speed planetary gearbox: approx. 750 Nm
•

• Spindle speed range: 1 - 3,600 rpm

Feed Drive (AC)

• X-axis feed force 100% ED: 4,000 N
•

• Z-axis feed force 100% ED: 5,000 N
•

• X-axis rapid traverse: 10 m/min
•

• Z-axis rapid traverse: 7 m/min

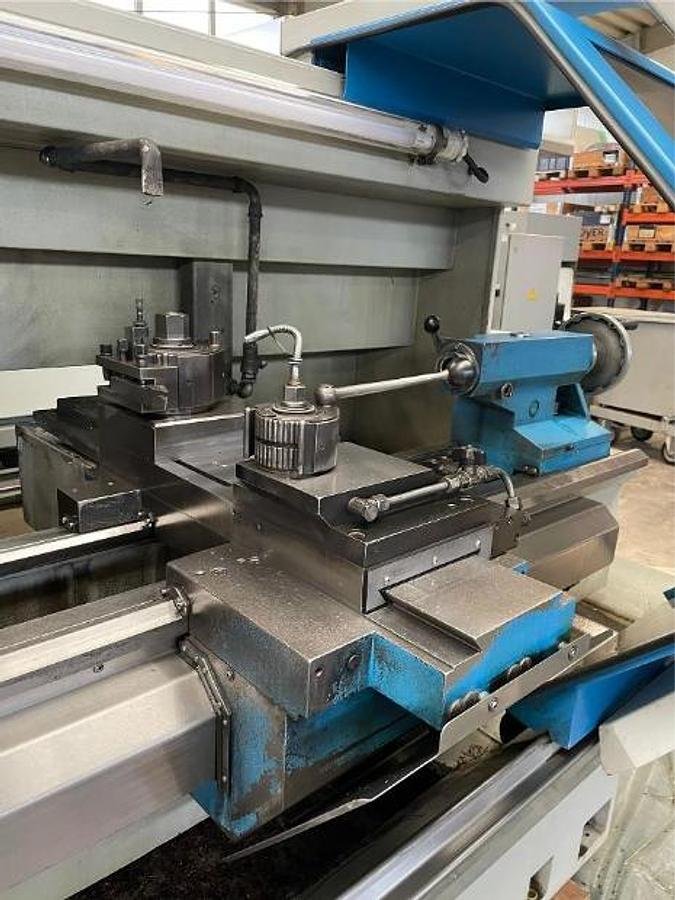

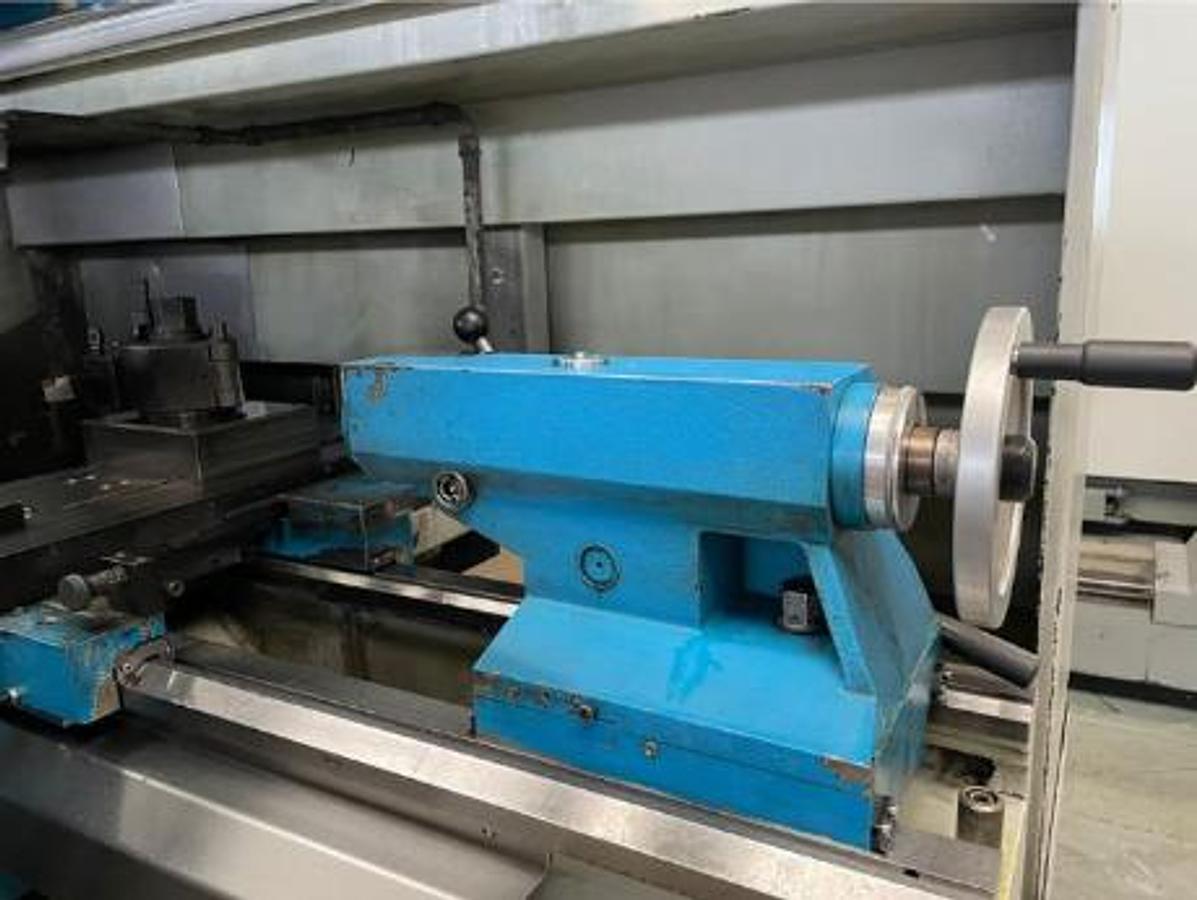

Tailstock

• Quill diameter: 70 mm
•

• Quill travel: 150 mm
•

• Quill taper (internal): Morse taper 5
•

• Fixed steady rest capacity: 12 - 150 mm
•

• Follow steady rest capacity: 12 - 125 mm

Pulse Lubrication System

• Flow rate: 0.1 l/min
•

• Pump pressure: 30 bar
•

• Tank capacity: 2 dm3

Pneumatic System

• System pressure: 6 bar
•

• Measuring system pressure: 1 bar
