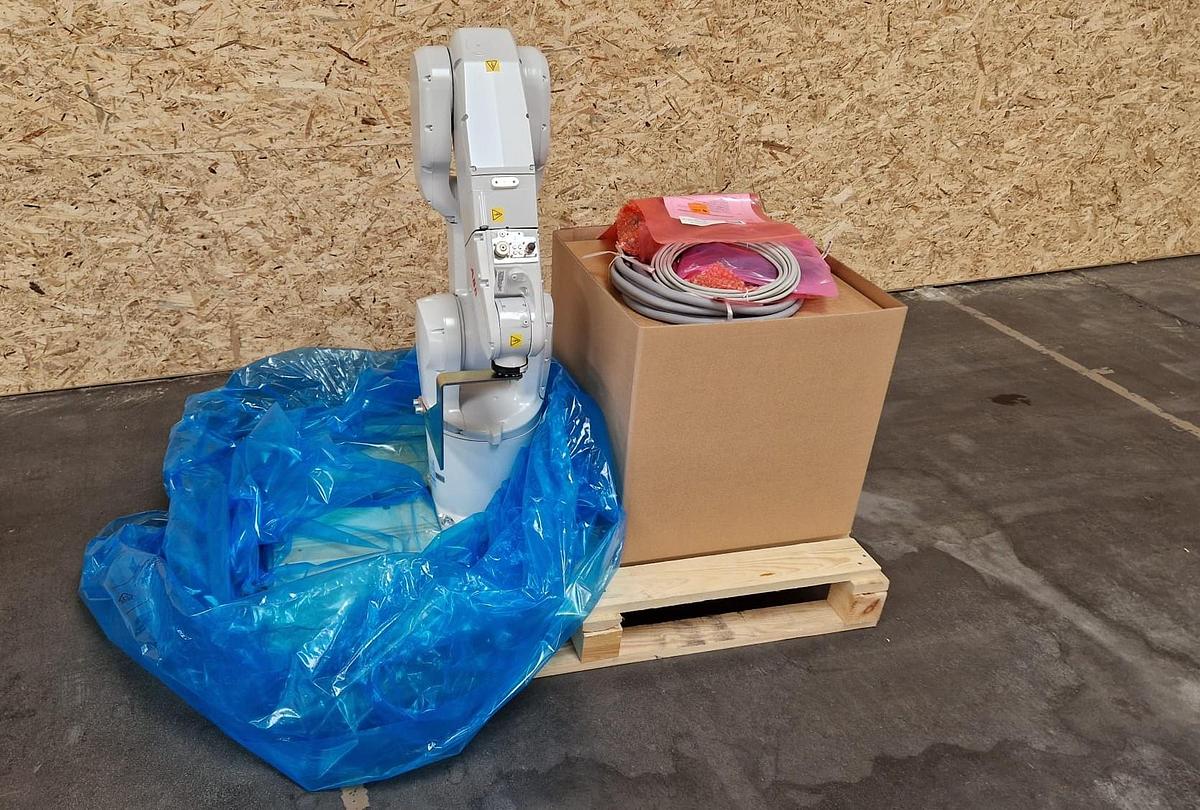

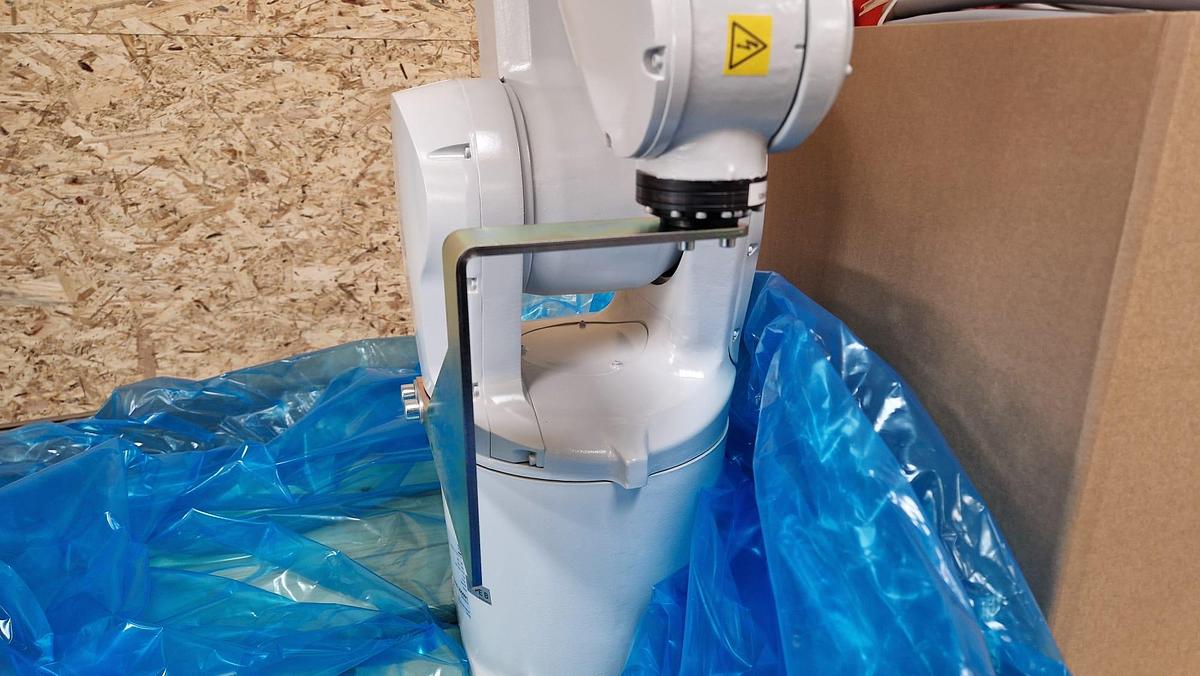

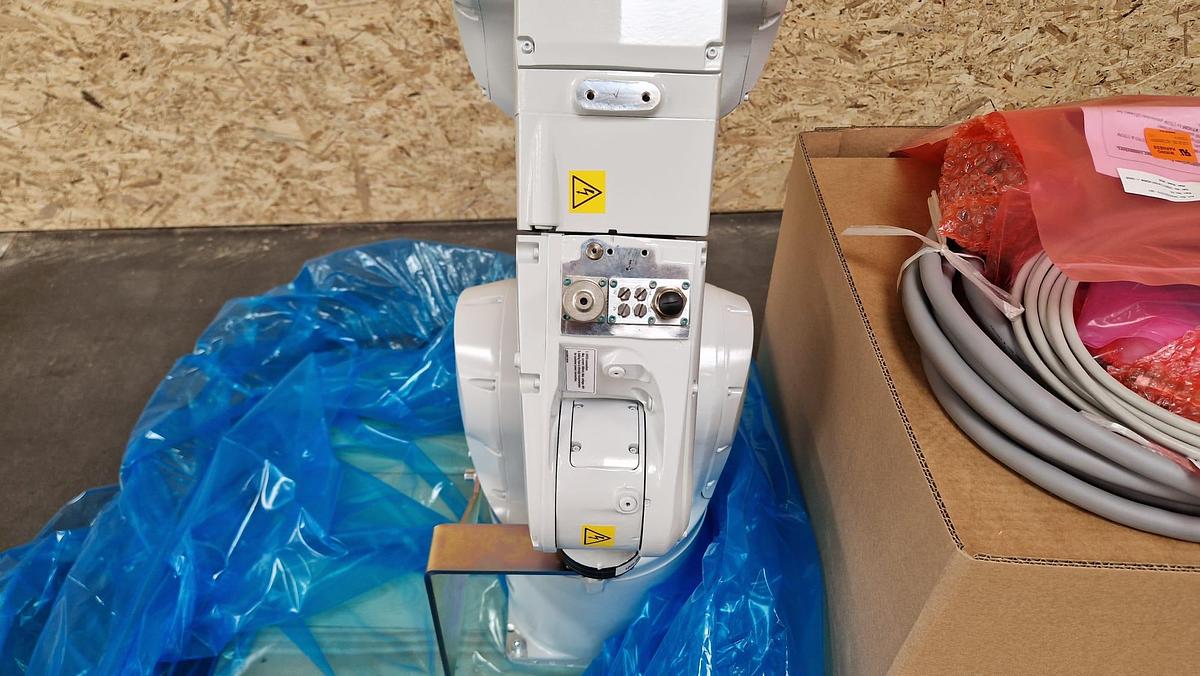

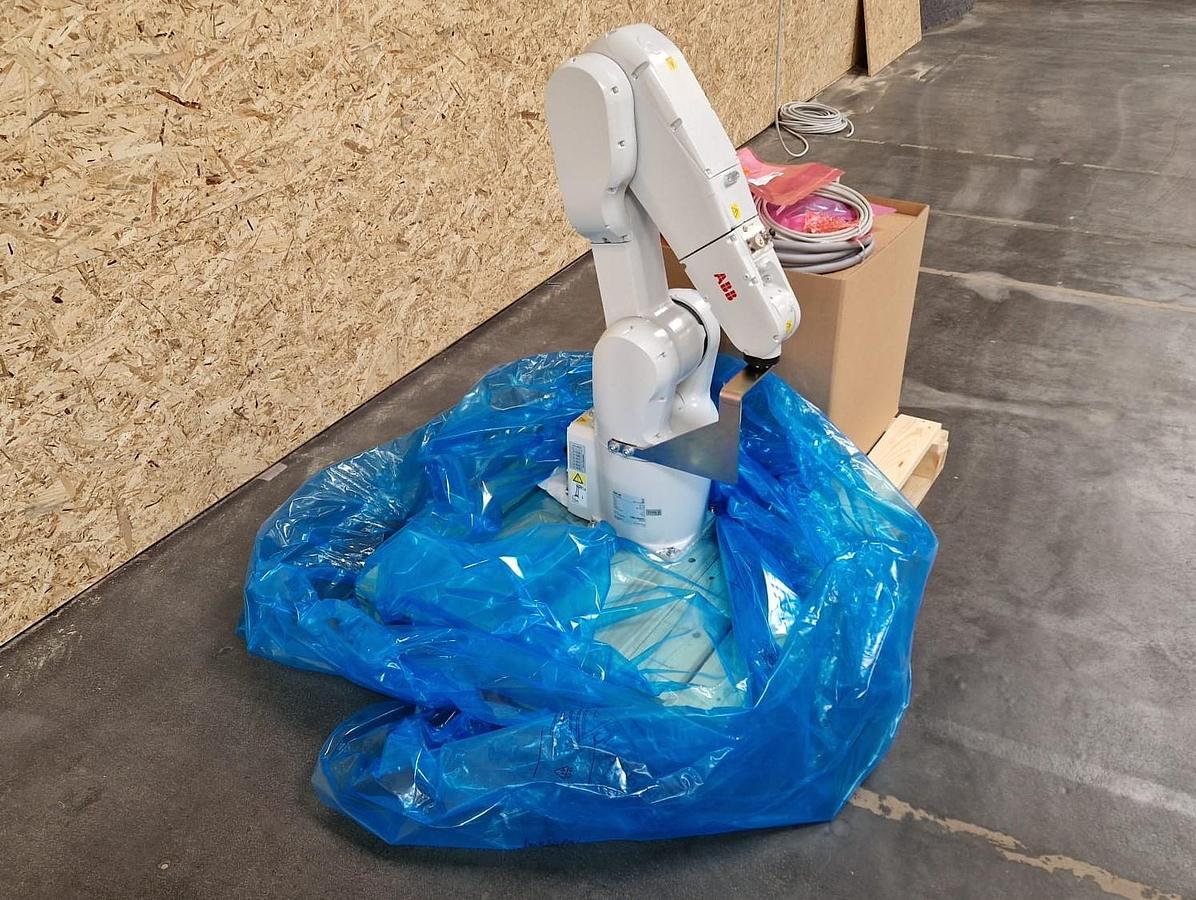

ABB IRB 1200-7/0.9 Omicore

Manufacturer: ABB

Model:  IRB 1200-7/0.9 Omicore

Warranty until 23.09.2026

Reach 901 mm

Load capacity 7 kg

Additional arm load 0.5 kg

Axles 6

Robot controller: Omicore C30

Position repeatability: 0.013 mm

Cycle time 7 kg version

1 kg pick & place cycle 25 x 300 x 25 mm: 0.4 s

Maximum TCP speed: 7.3 m/s

Max. TCP acceleration: 35 m/s²

Acceleration time: 0 –1 m/s 0.06 s

Robot footprint: 210 x 210 mm

Weight: 54 kg

MANIPULATOR

• Manipulator variant: IRB 1200-7/0.9
• Manipulator color: ABB Graphite White std
• Manipulator protection: Base 40
• Robot cabling: From the base side

STEERING

• Control variant: OmniCore C30
• Control Housing: Base
• inch rack mounting kit: Yes
• Operating temperature: max. 45 °C
• Mains voltage: 220–230 V AC +10%/-15%
• Connected Services: Wired LAN
• Ethernet Switch: 5-port Ethernet switch
• Additional logic 24 V power supply: 24 V, 8 A
• FlexPendant: FlexPendant 10 m
• PROFINET-SW device: PROFINET device
• Basic Digital 16 Inputs/16 Outputs: Basic Digital 16 Inputs/16 Outputs 1
• Operating mode selector switch: 3 modes, keyless

FLOOR CABLE

• Manipulator Cable – Length: 7 m
• Power cable: EU power cable, 3 m

ROBOTWARE

• World Zones: World Zones
• Path Recovery: Path Recovery
• RobotStudio Connect: RobotStudio Connect
• FlexPendant Basic Apps: Essential App Package
• FlexPendant-independent apps: Software package

APPLICATION

• Media and Communication: Ethernet, Parallel, Air
• Connector set axis 4: CP/CS bus, Proc 1 axis 4
• parallel cable – length: 7 m
• Ethernet cable – Length: 7 m
