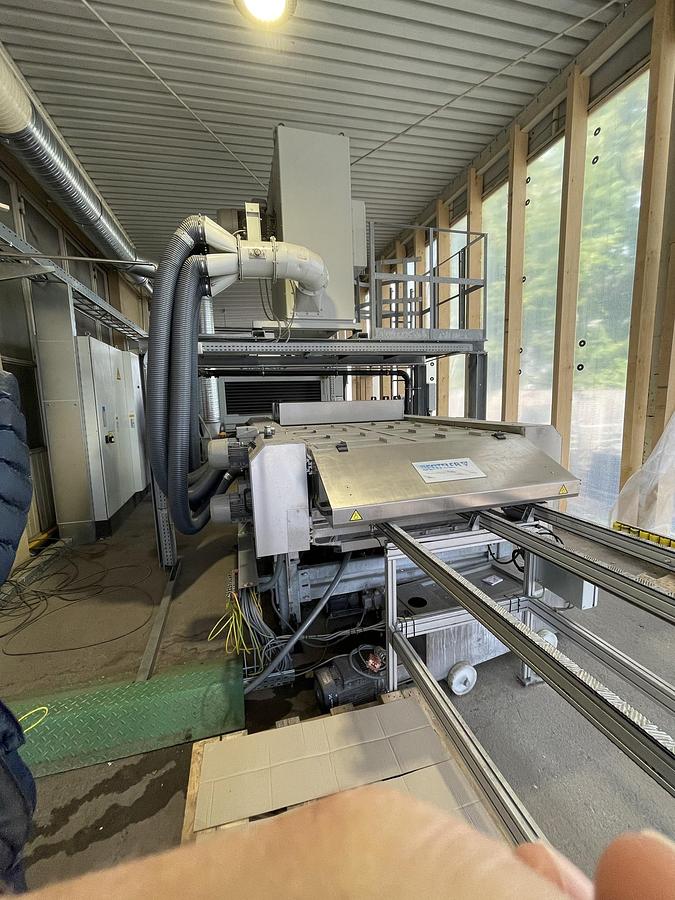

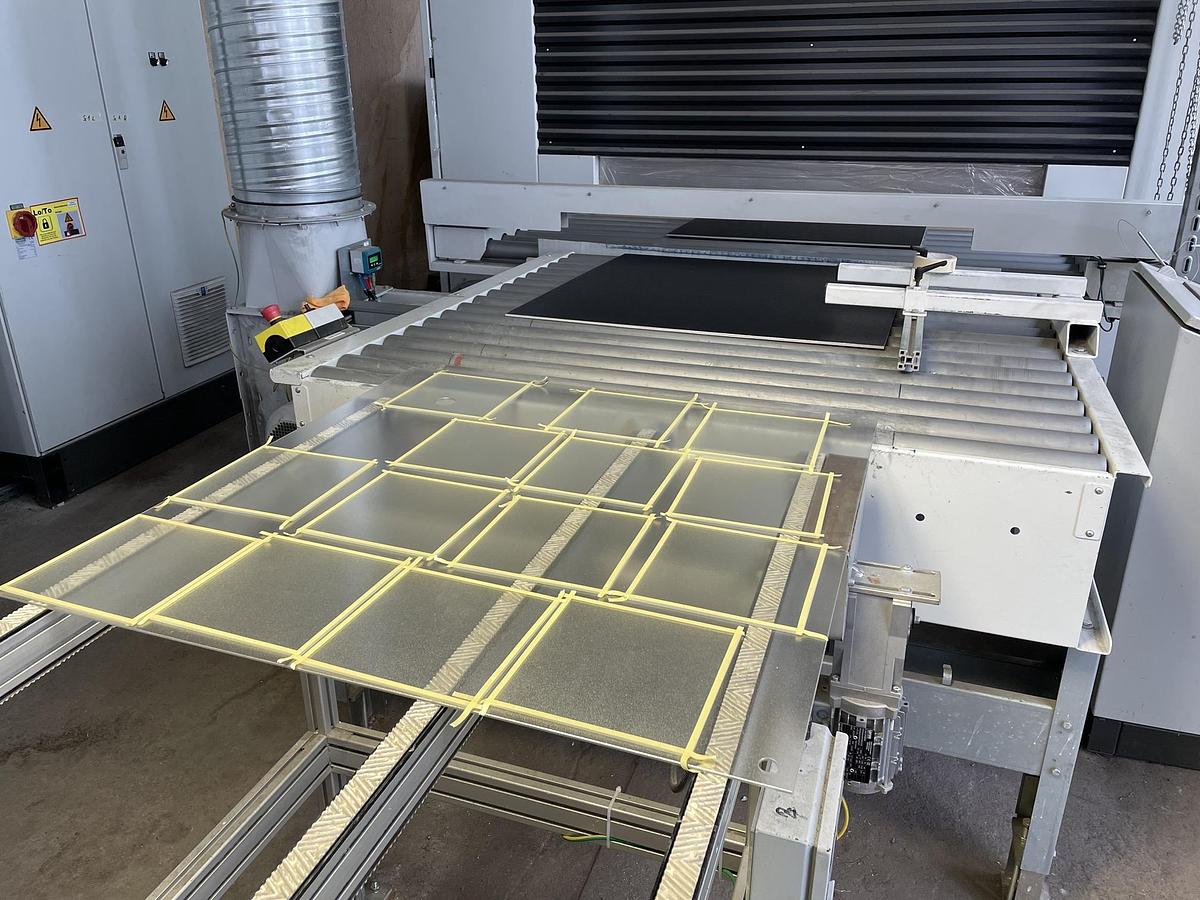

Used Venjakob VEN SPRAY ONE Automatic Spray Painting Machine

Manufacturer: Venjakob

Model: VEN SPRAY ONE

Type: Automatic flat-line spray coating machine with dry filter extraction

Control: 15-inch touch screen PC with recipe management system

Compliance: CE-certified, user interface and documentation available in local language

Technical Specifications

• Overall dimensions (L x W x H): 4,084 x 4,000 x 2,600 mm
• Working width: 1,300 mm
• Feed speed: 1 to 4 m/min
• Gun traverse speed: 0.4 to 2.0 m/sec, infinitely variable (max. 25 double strokes)
• Electrical connected load: 11 kW
• Maximum supply air: 7,000 m3/h
• Maximum exhaust air: 7,000 m3/h
• Compressed air consumption: approx. 100 NL/h (varies with equipment)
• Minimum workpiece size: 250 mm x 25 mm x 6 mm
• Maximum workpiece size: unlimited length x 1,300 mm width x 50 mm height
