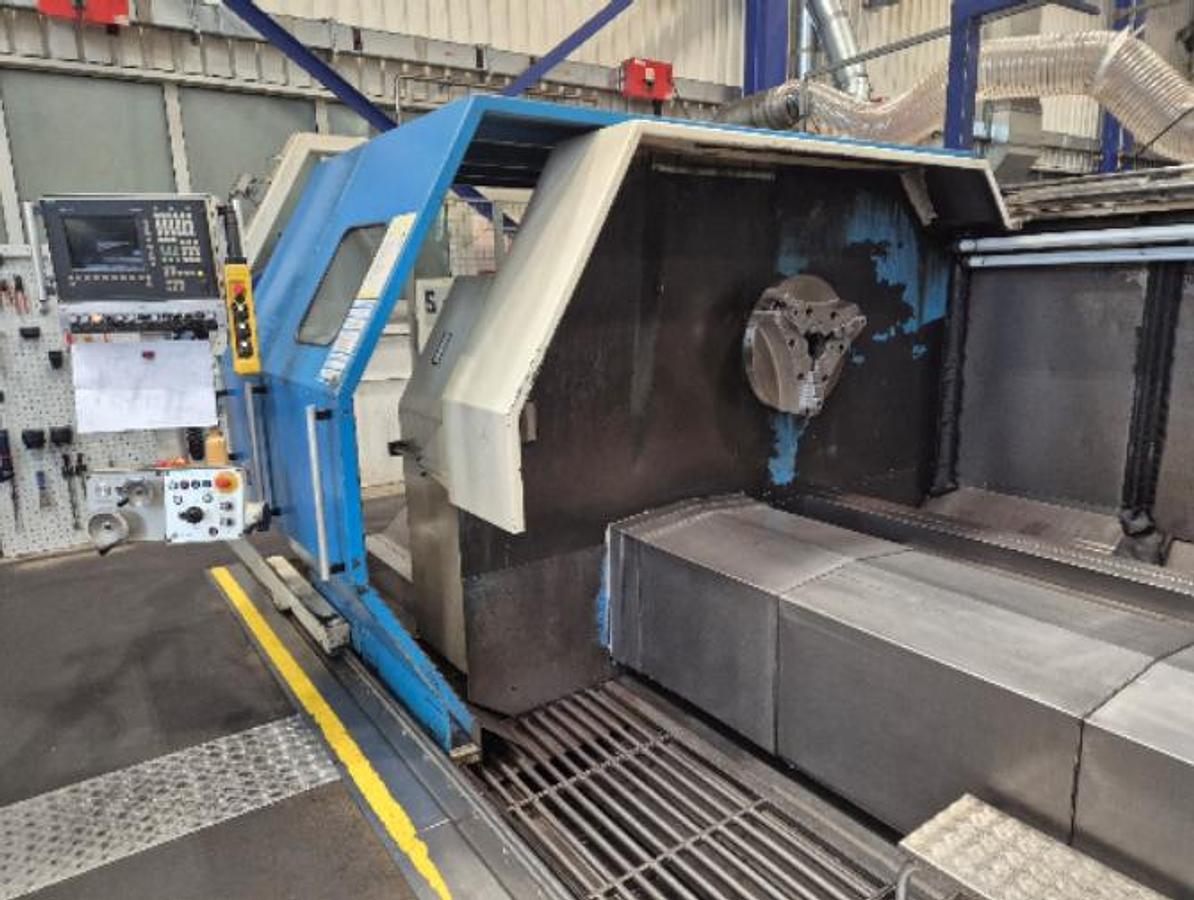

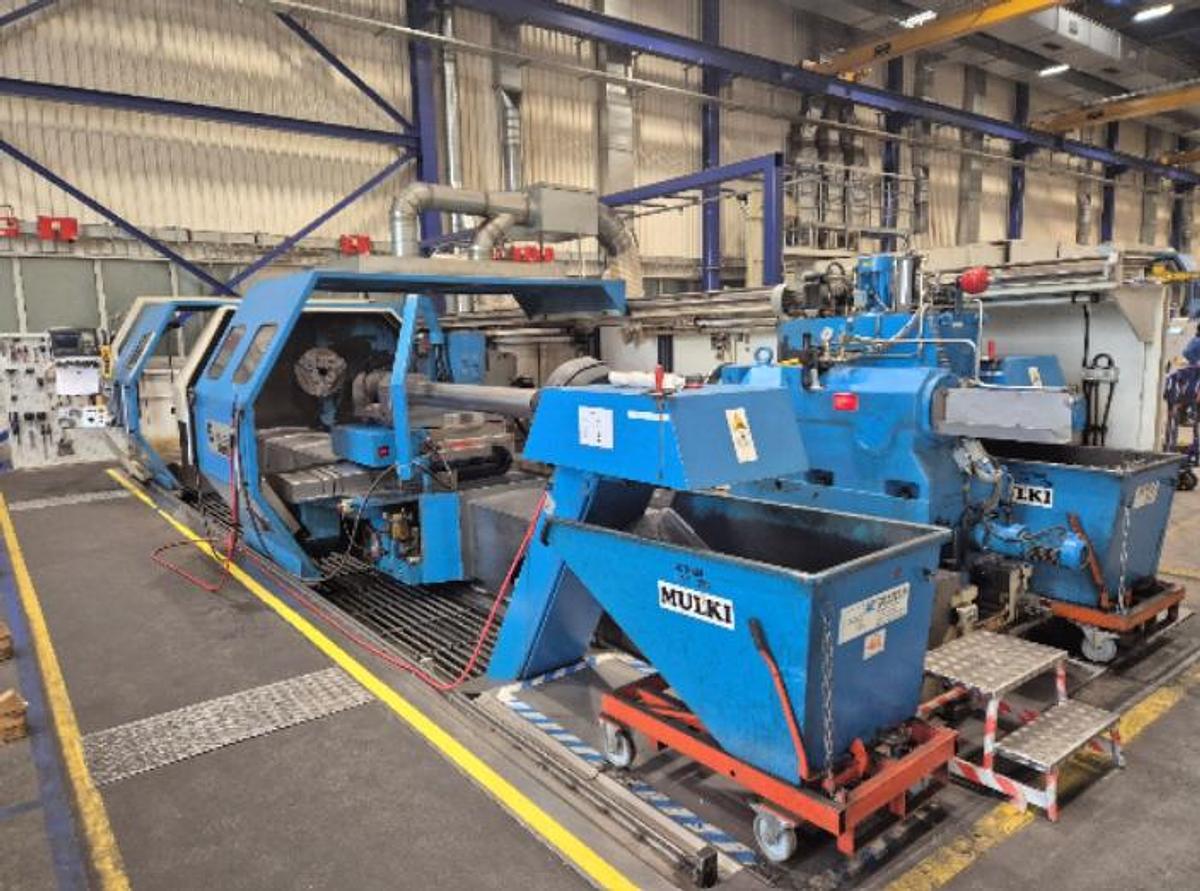

2002 Seiger SLZ 1500-6000 Lathe

Manufacturer:  Seiger

Model: SLZ 1500-6000

Year of Manufacture: 2002

Machine Type : Lathe

CNC Control: Siemens 840D

Control Type: Contouring control, 2-axis

Condition: Used

Centre Distance: 6000 mm

Swing Diameter Over Bed: 1500 mm

Swing Diameter Over Cross Slide: 1100 mm

Cross Slide Travel (X-Axis): 760 mm

Bed Width: 1350 mm

Turning Tool Cross Section: 40 x 40 mm

Spindle

• Spindle Head: DIN 55027, Size 15
• Spindle Bore: 128 mm
• Chuck: Forkardt F400 (D159578)
• Speed Range: 3.55 to 710 rpm
• Max. Torque at Spindle: 12,000 Nm

Drive and Feed

• Main Drive Power: 52 kW (54 kW at 100% ED / 70 kW at 60% ED)
• Supply Voltage: 400 V
• X-Axis Feed Force (100% ED): 25,000 N
• Z-Axis Feed Force (100% ED): 35,000 N
• X-Axis Rapid Traverse: 4 m/min
• Z-Axis Rapid Traverse: 4 m/min
• Feed Range: 0.001 to 4 m/min
• X-Axis Torque: 27 Nm
• Z-Axis Torque: 50 Nm

Turret and Tooling

• Number of Tool Positions: 12

Tailstock

• Quill Diameter: 220 mm
• Quill Stroke: 315 mm
• Internal Taper: Morse Taper 6 (MK 6)

Workpiece Capacity

• Max. Workpiece Weight Between Centres (without steady): 9,000 kg
• Max. Workpiece Weight Between Centres (with one steady): 10,500 kg
• Max. Workpiece Weight Face Chuck Mounted: 2,500 kg

Machine Weight and Dimensions

• Total Machine Weight: approx. 31,000 kg
• Machine Dimensions (L x W x H): 12,500 x 4,200 x 2,800 mm

Included Accessories

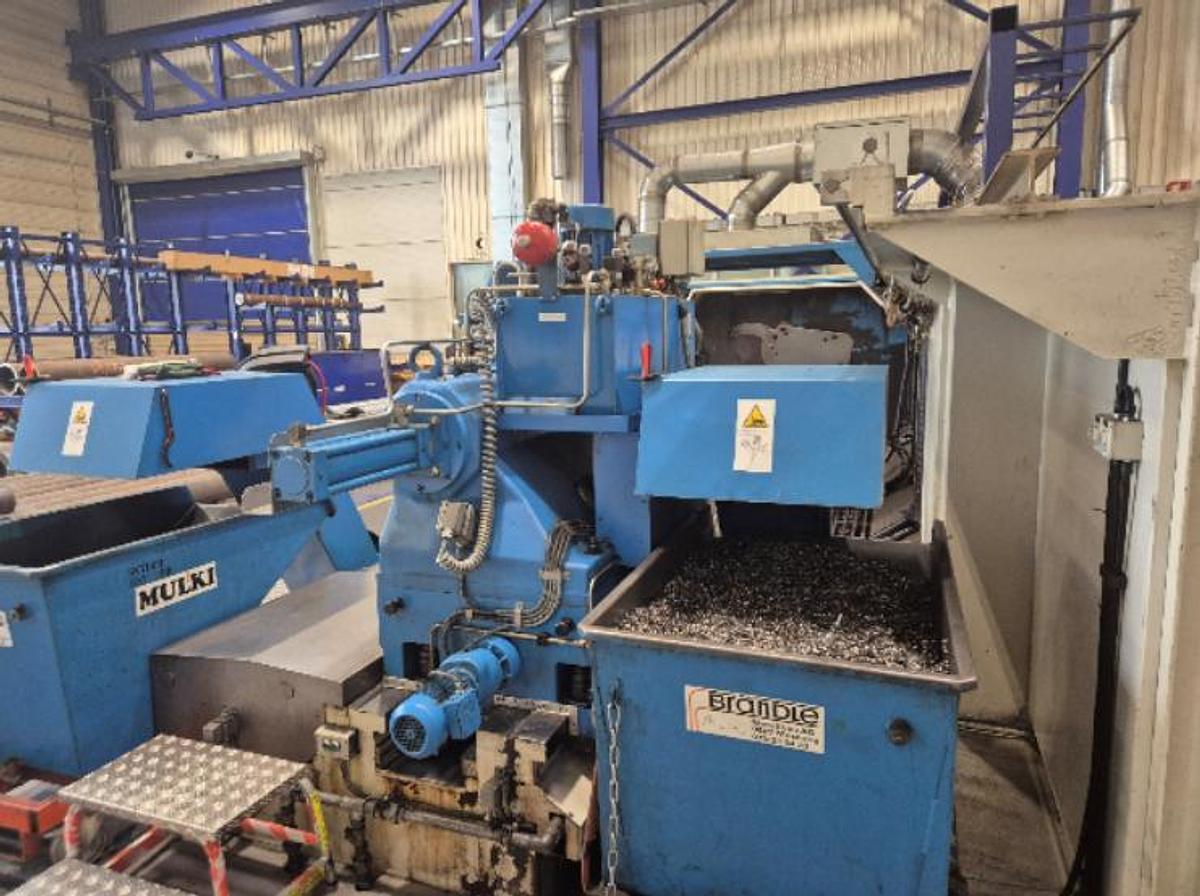

• Chip conveyor

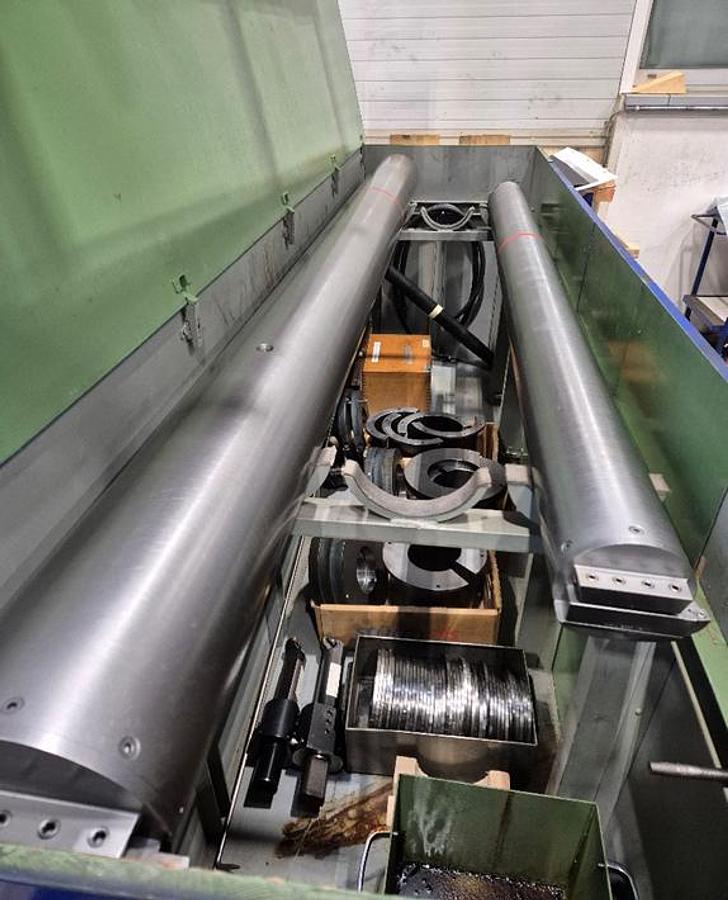

• Boring bar set: 3 bars (diameter 120 mm, 150 mm, and 180 mm) with matching half-shell collet sleeves

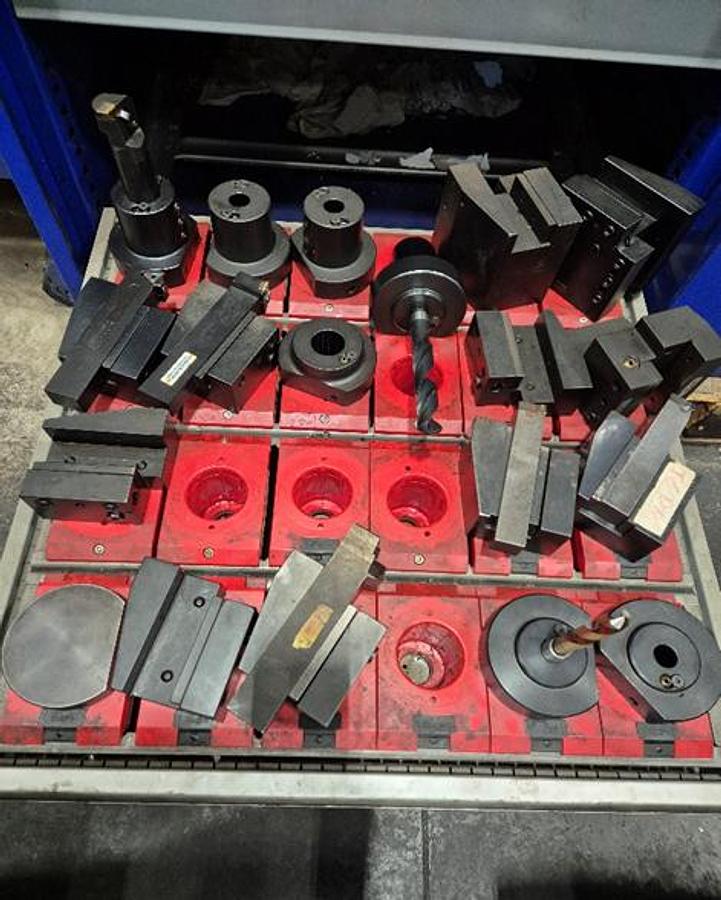

• Various tool holders

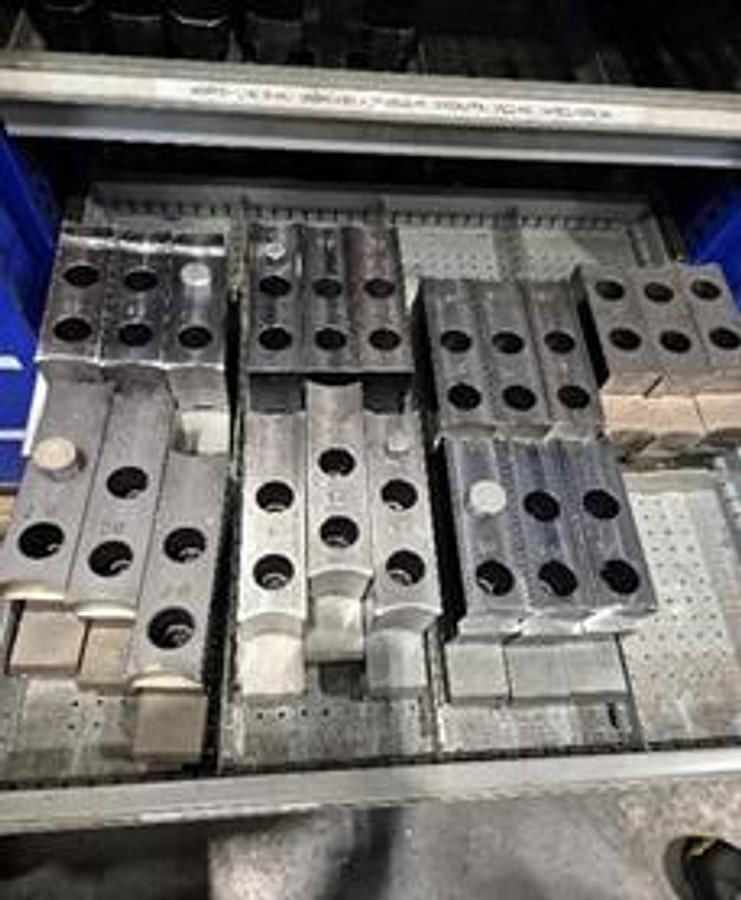

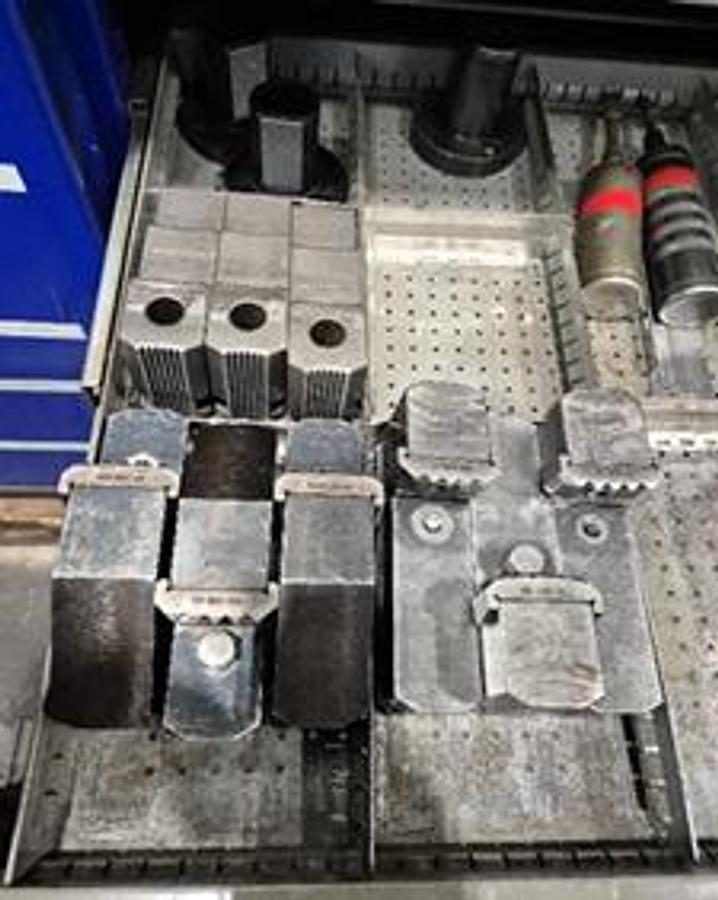

• Hard and soft chuck jaws, various sizes
• Turning centres
• Machine and control manuals

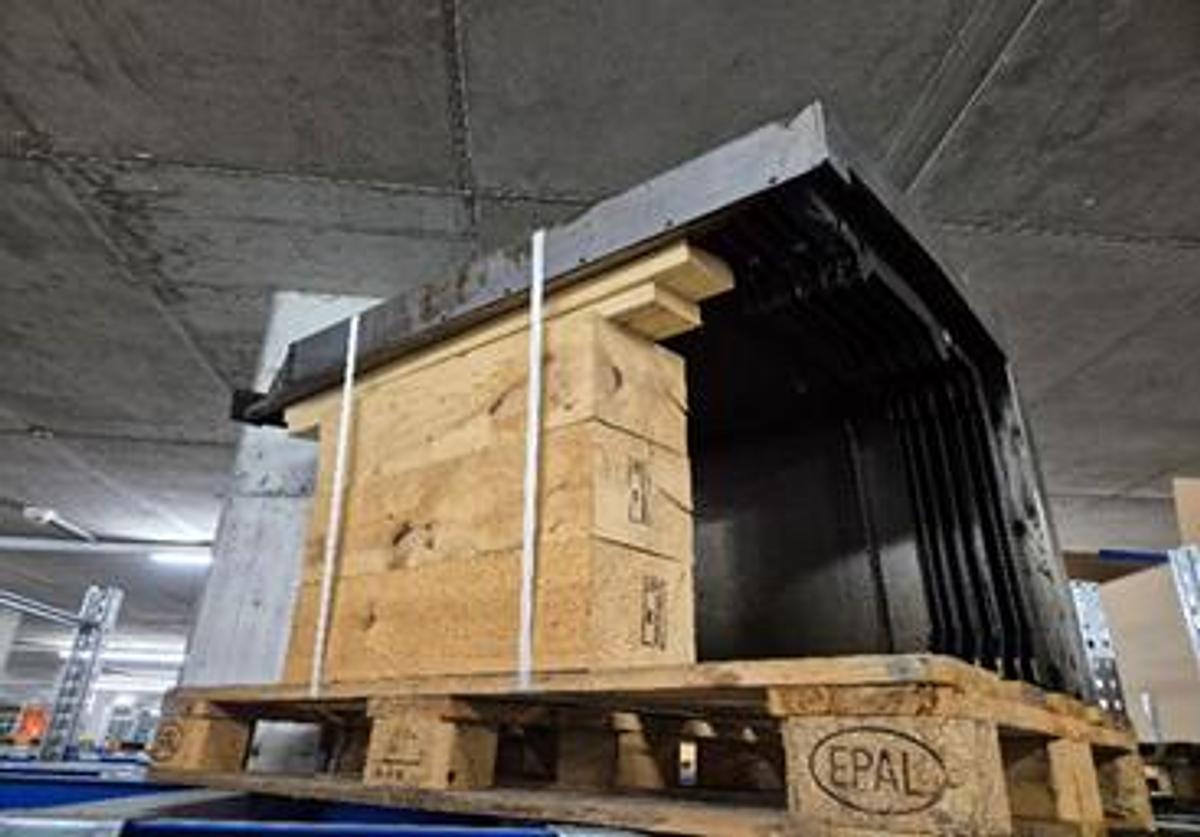

• Telescopic cover between spindle and X/Z slide (requires revision)
