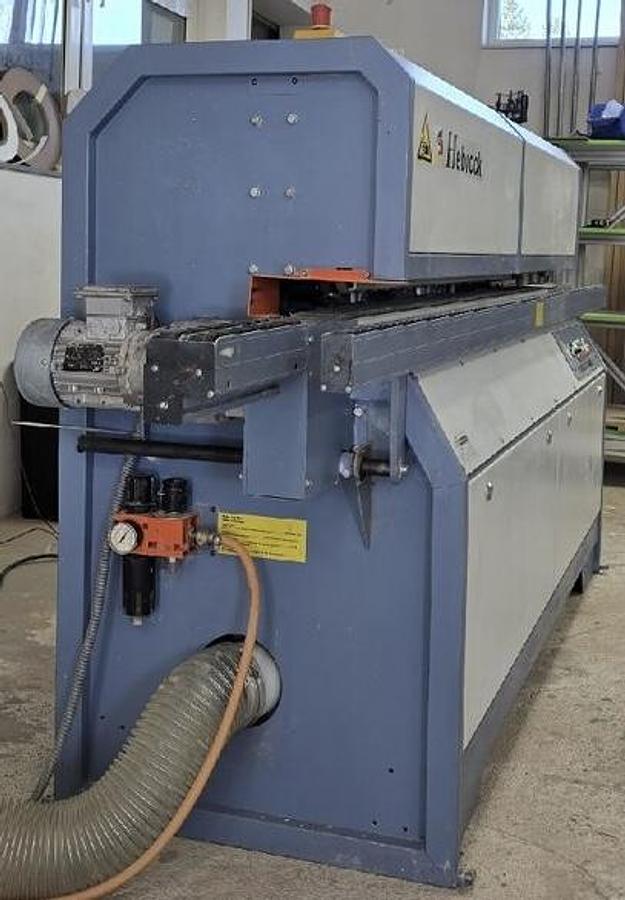

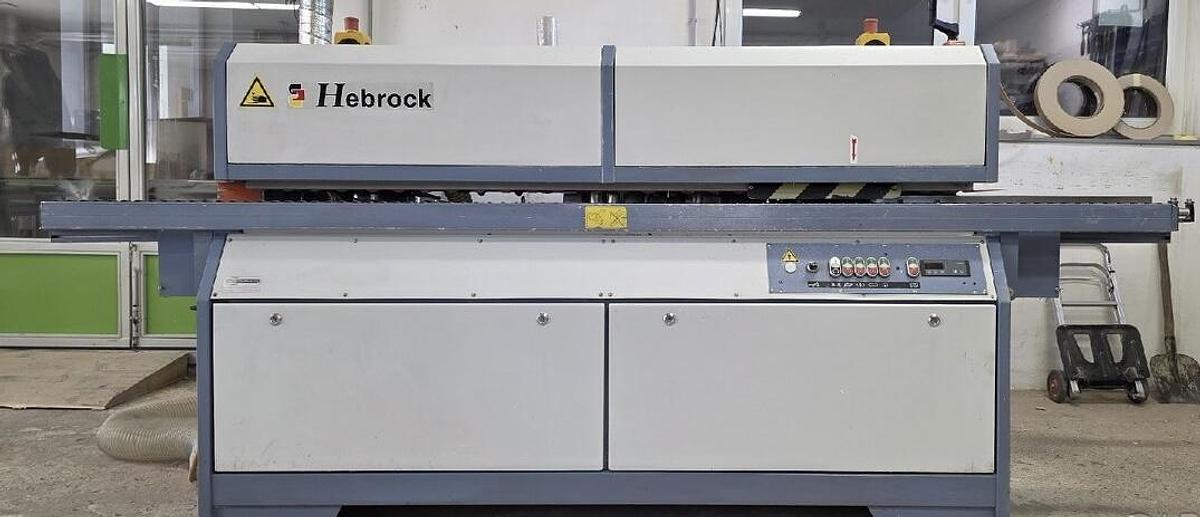

2011 Hebrock F2

Edge banding machine

Type: F2

Manufacturer: Hebrock

Year: 2011

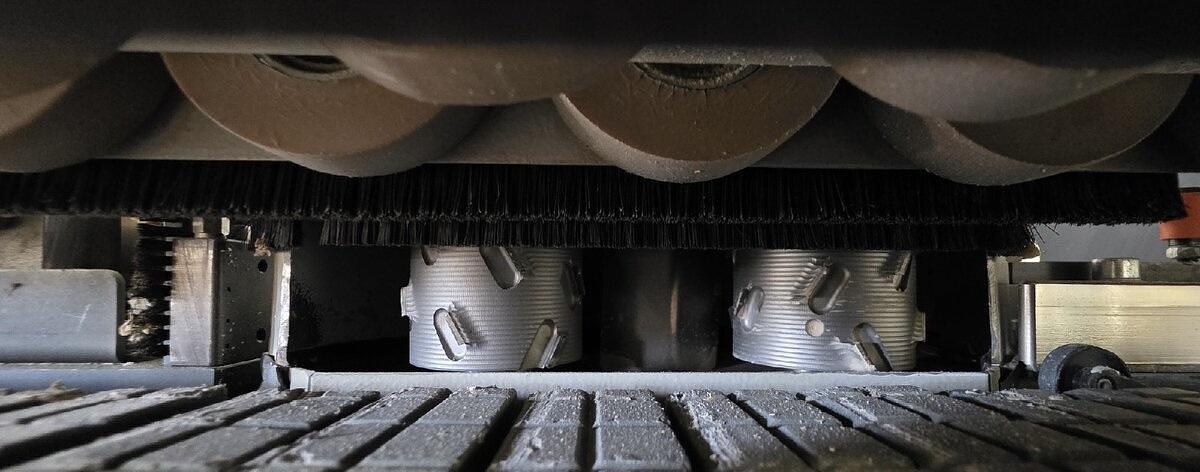

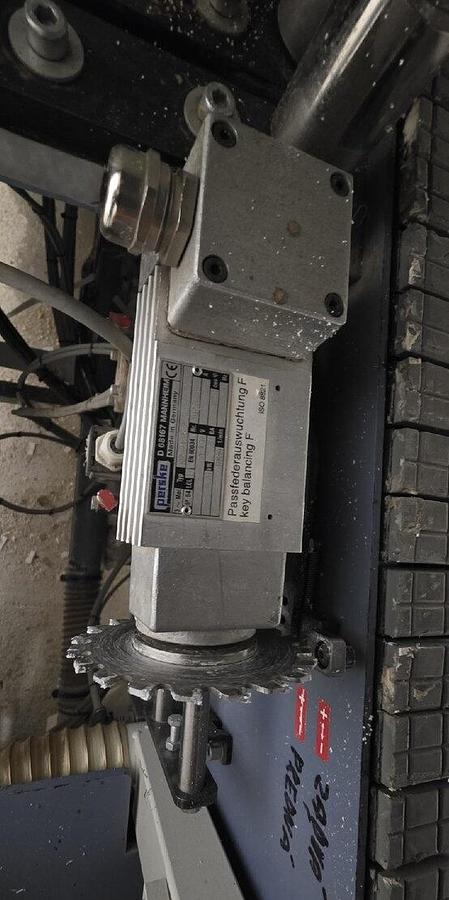

Pre-milling Unit:

2 diamond tools for a perfectly clean edge without tear-out.

Thanks to powerful motors, it easily handles edging of plywood and blockboard.

1 set of pre-milling cutters is installed, plus 1 completely new spare set.

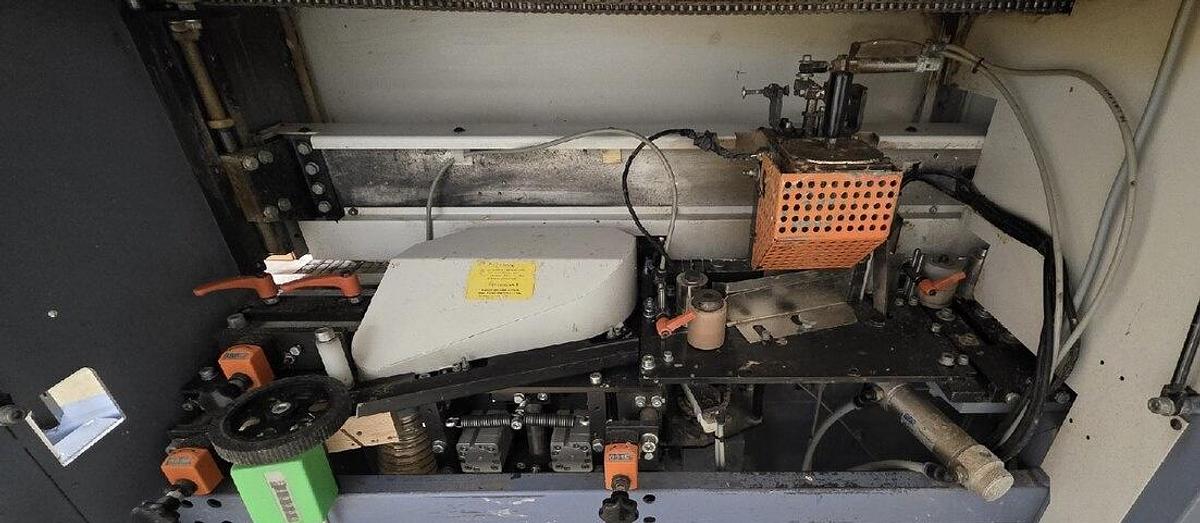

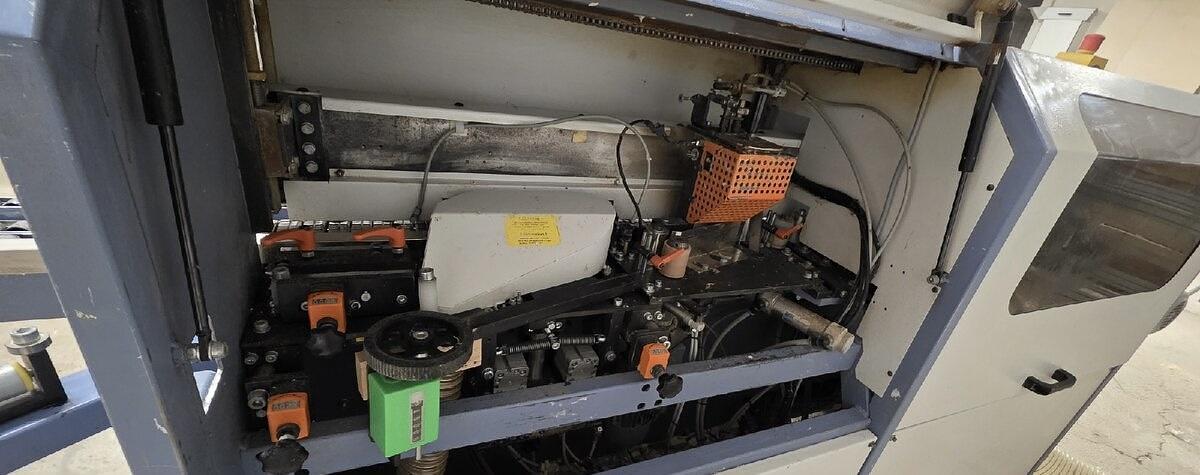

Glue Unit:

Top glue pot with fast heating, approx. 3.5 minutes.

We used exclusively Dorus K351 glue, which causes only minimal build-up in the glue pot and ensures a perfect glue line, especially on white and light-colored decors.

Pressure Rollers:

3 rollers, with the first one rubber-coated and with increased pressure for complete adhesion and strong bonding of the edge to the panel.

End Trimming Saw:

Precise trimming of edge ends.

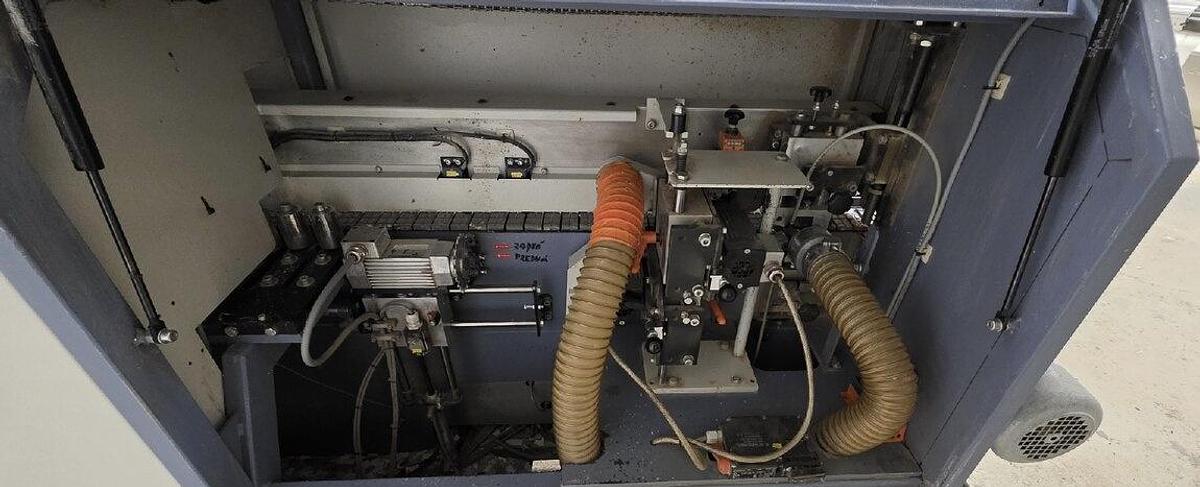

Milling Unit:

Multifunction cutters for R1, R2 radius rounding or 45° chamfer milling of the top and bottom edge.

Surface Scrapers:

For removing glue residue and final surface cleaning.

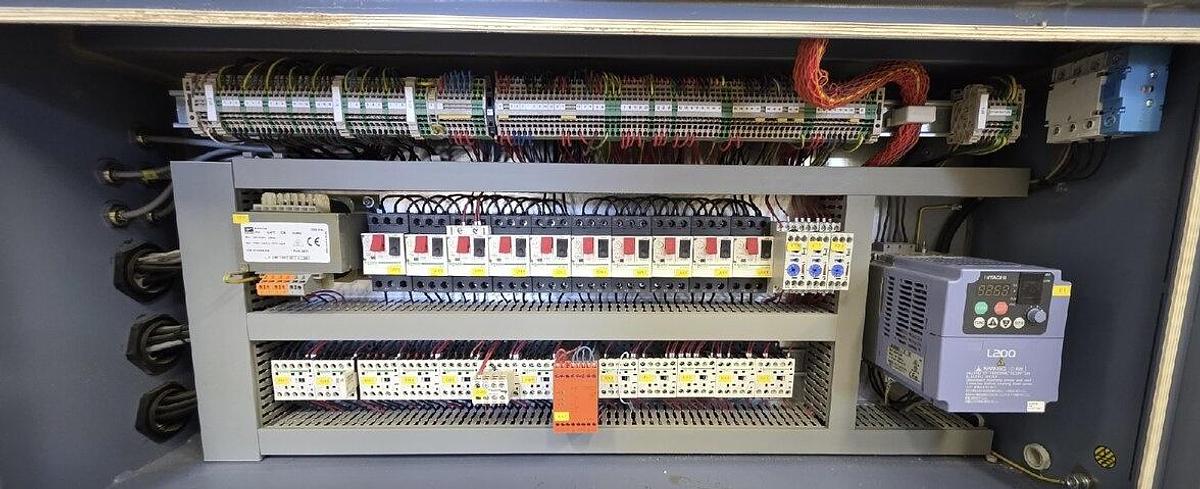

Controls:

• Simple push-button operation.
•


Technical Specifications:

Edge thickness: 0.3–2 mm

Workpiece thickness: 8–43 mm (with fine pre-milling adjustment)

Minimum panel length: 160 mm (when end trimming)

Minimum panel width: 55 mm (advantageous for edging narrow strips/lamellas)

Feed speed: approx. 7 m/min

Machine dimensions: approx. 3350 × 1300 × 700 mm

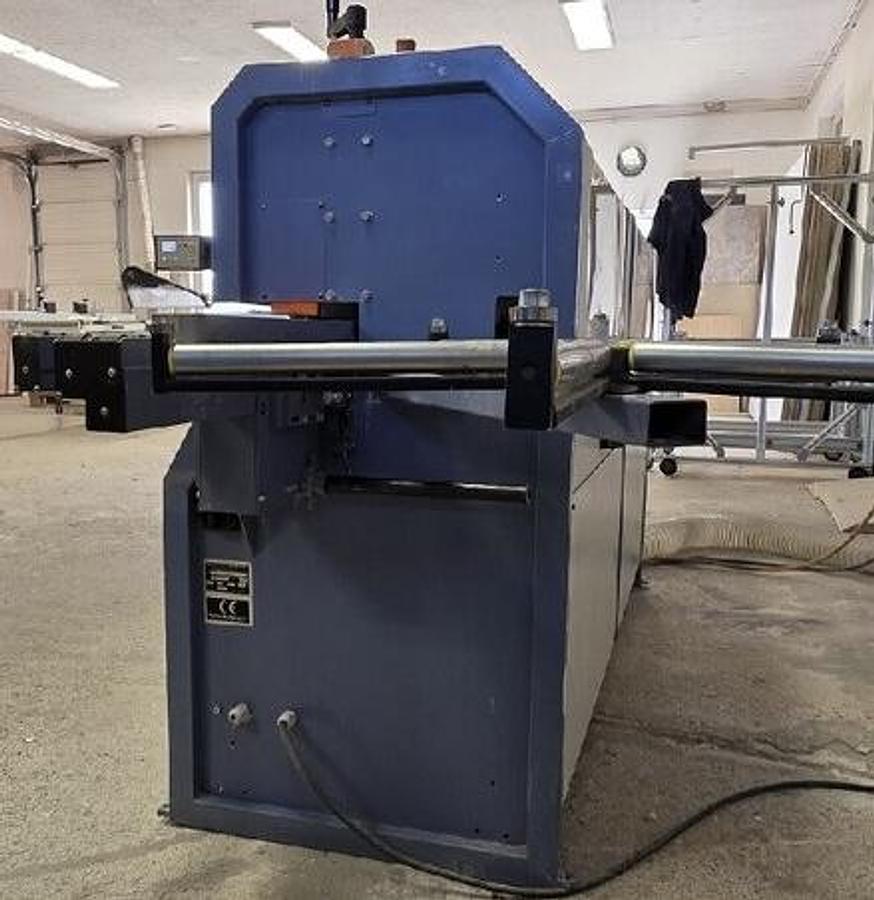

Extendable support: approx. 70 cm – useful for long workpieces

Compact machine length: only 3.3 m

Weight: approx. 620 kg

Power supply: 400 V / 50 Hz

Machine in good condition, fully functional, under power
