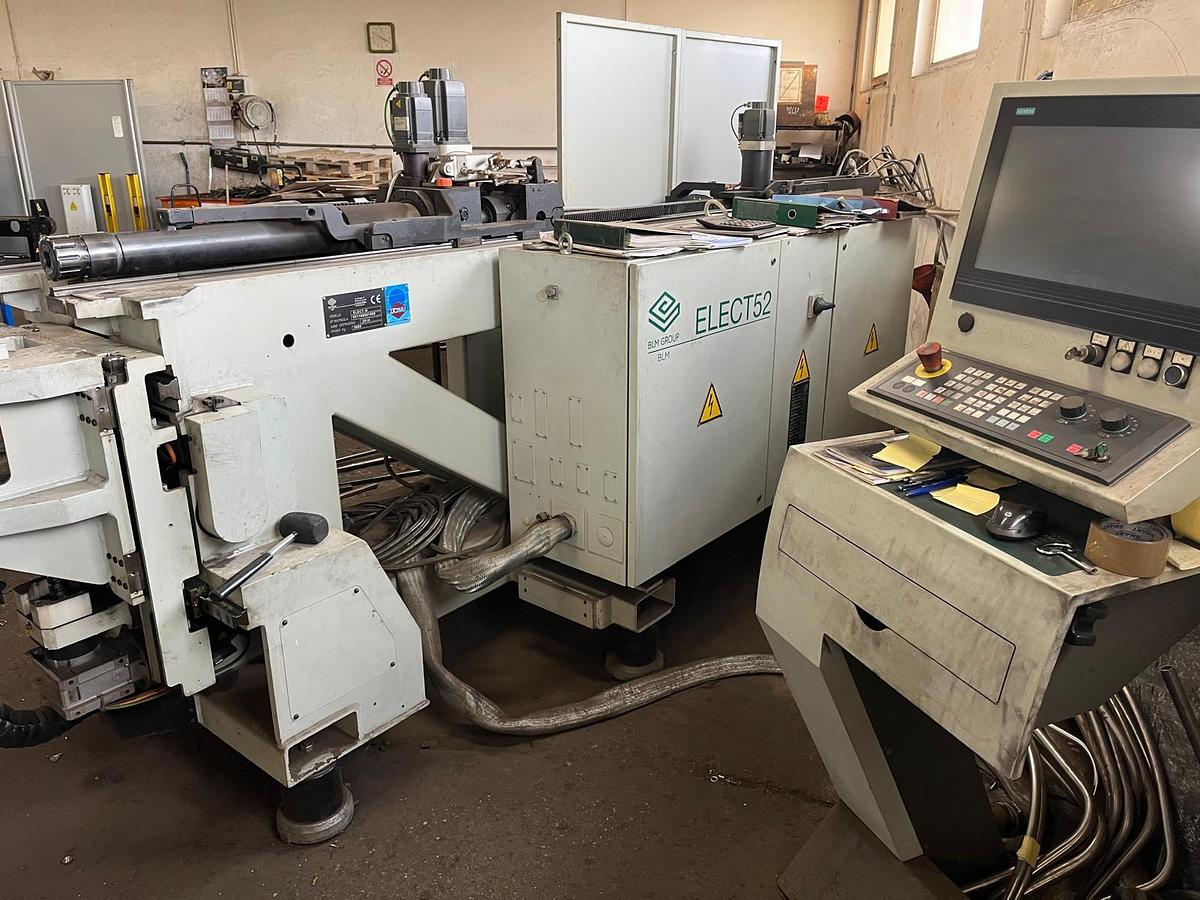

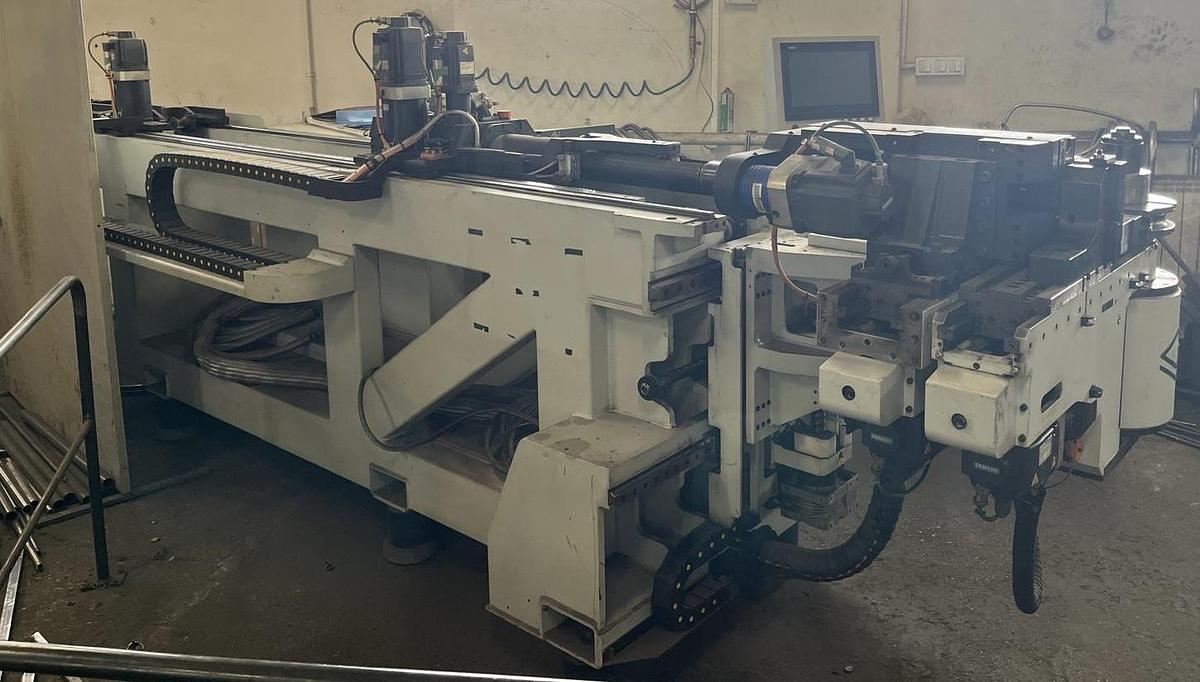

CNC tube banding machine

Type: ELECT 52

Manufacturer: BLM

Year: 2016

Fully electric dual-direction tube bending machine (9-axis)

Control: Siemens SIMOTION

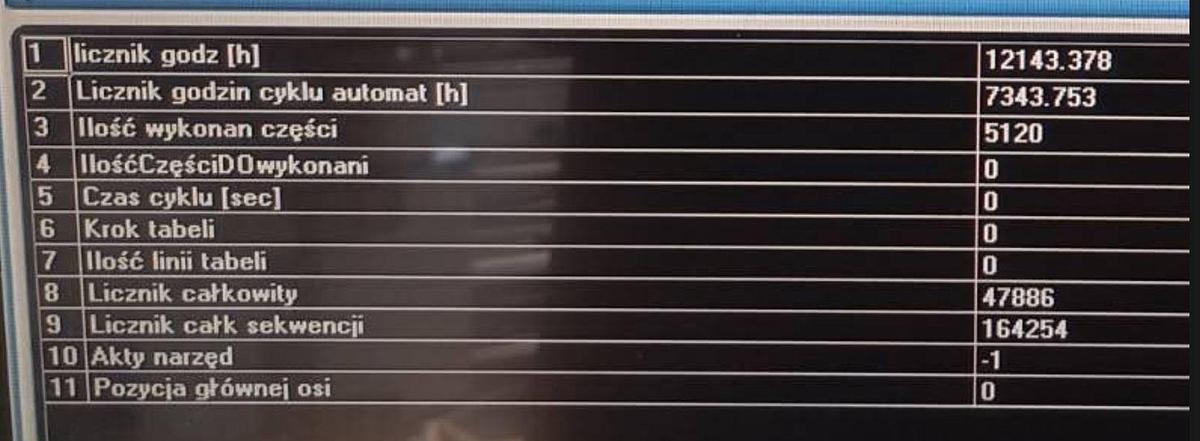

Cycle hour counter: 7344

Number of parts produced: 5143

Mandrel rod set length: 4.2 m + extension of usable length to 4.5 m

3D visual programming system (VGP3D) – software for 3D graphical programming with feasibility analysis and bending process optimization

B-RIGHT – automatic springback and elongation correction

BOOSTER 20 – pushing booster with 2000 kg force

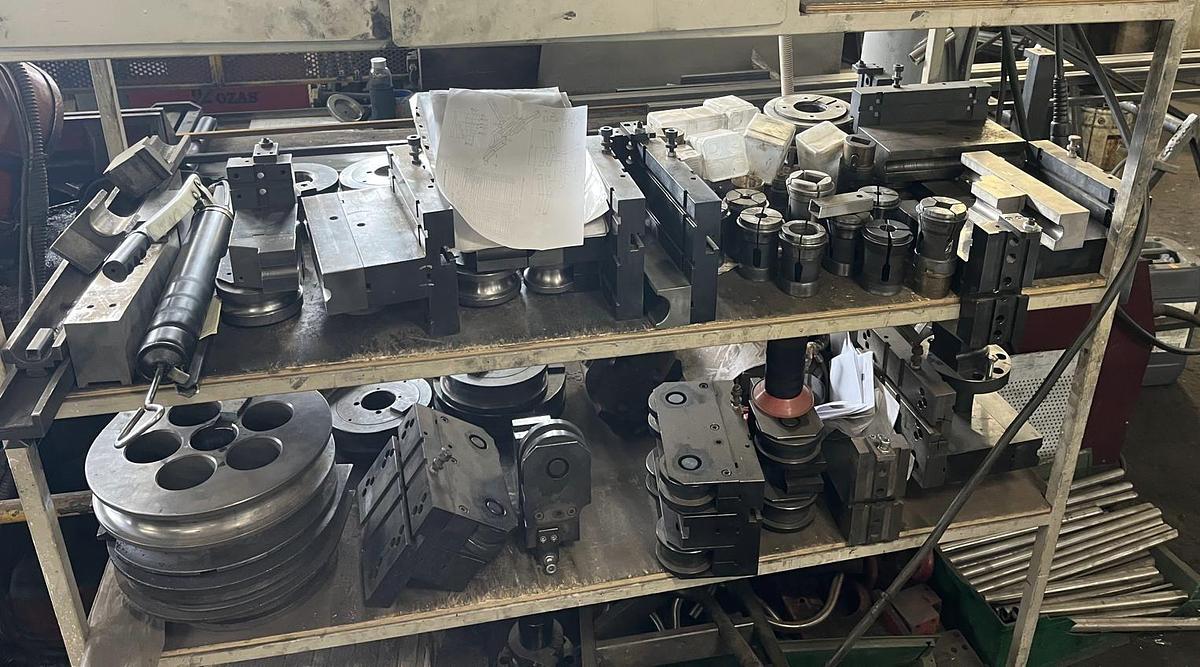

Machine toolings:

bending tools for tubes:

Ø17.2 (r-68.6 mm) fixed and variable radius + collet (pinza) + clamping plate + adapters + mandrel

Ø21.3 (r-70.7 mm) fixed and variable radius + collet (pinza) + clamping plate + adapters

Ø26.9 (r-83.5 mm) fixed and variable radius + collet (pinza) + clamping plate + adapters + mandrel

Ø33.7 (r-107 mm) fixed radius + collet (pinza) + clamping plate + adapters

Ø42.4 (r-156 mm) fixed radius + collet (pinza) + clamping plate + adapters

bending tools for closed profiles:

20x20 (r-115 mm) fixed and variable radius + collet (pinza) + clamping plate + adapters

30x20 (r-115 mm) fixed and variable radius + collet (pinza) + clamping plate + adapters + three levels

30x30 (r-130 mm) fixed radius + collet (pinza) + adapters + pneumatic drive cylinder under the head

Machine in good condition, fully functional, under power
