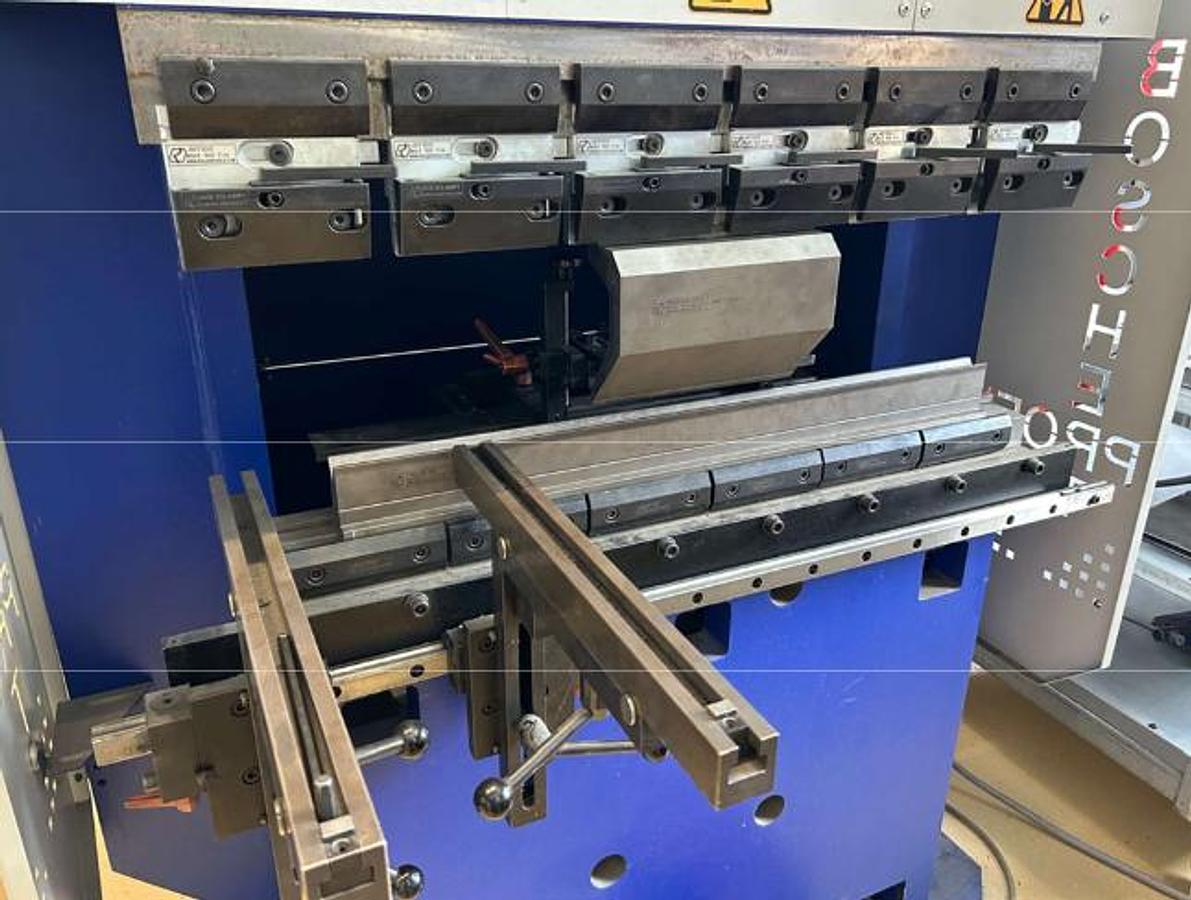

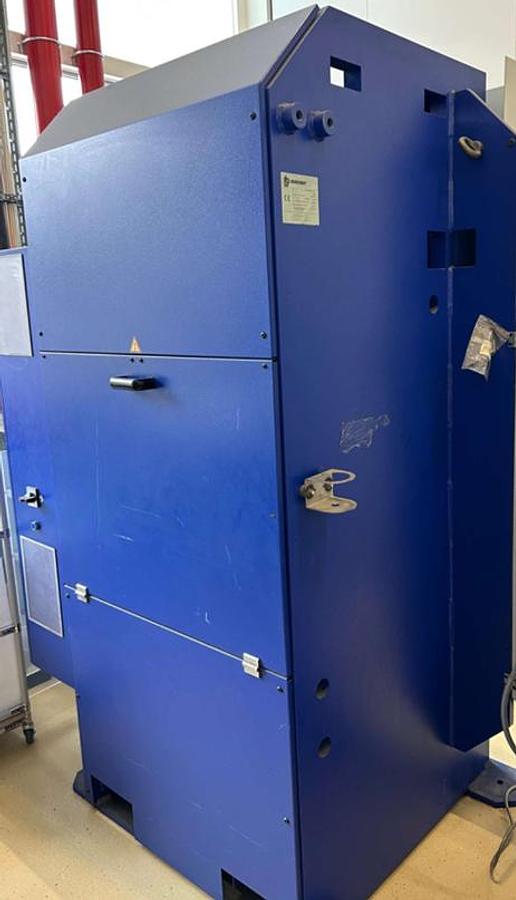

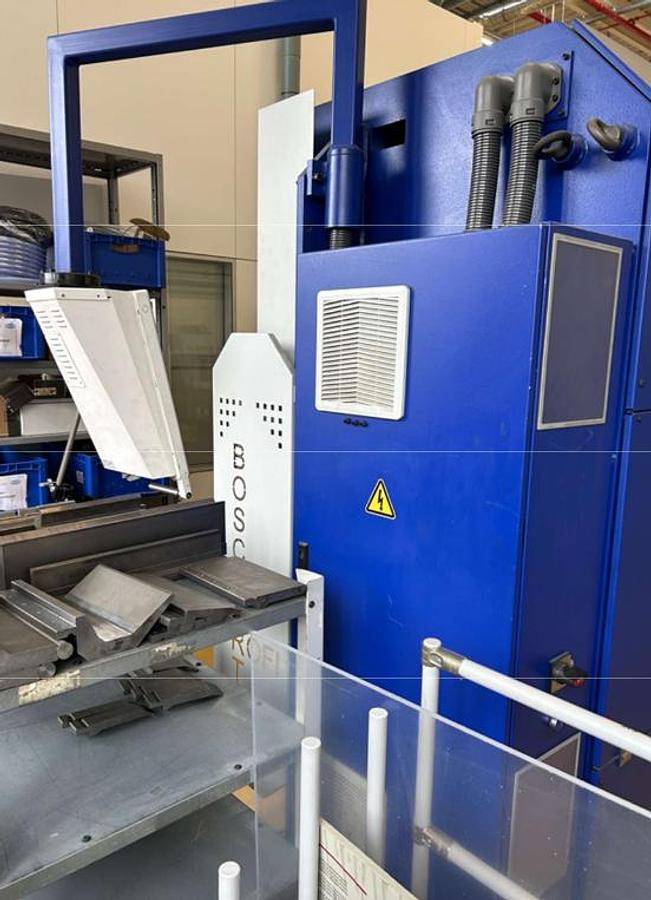

2012 Boschert Profi Bend 28/100 CNC

Manufacturer: Boschert

Model:  Profi Bend 28/100

Year of Manufacture:  2012

Type of Machine : CNC die bending press

Technical Specifications

• Press force: 28 tonnes
• Bending length: 1000 mm
• Maximum sheet thickness: approx. 10 mm
• CNC control: Cybelec ModEva Pac / CybTouch 15

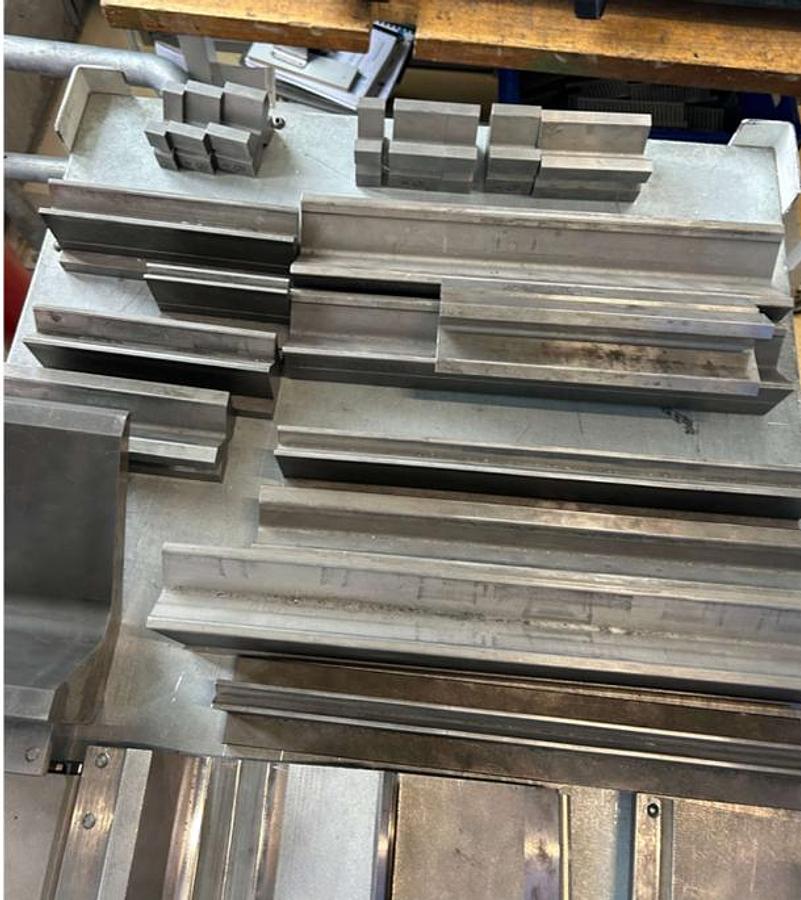

• Tool clamping system: WILA mechanical
• Backgauge: 2 lateral height-adjustable depth stops with 2 stop faces each
• Backgauge (Y-axis): programmable, 99 programmes up to 30 steps each
• Bending angle repeatability: 0.02 mm
• Handwheel for bending angle adjustment

Electrical Data

• Power supply: 3 x 400 V / 50 Hz
• Connected load: 5.5 kVA
• Control voltage: 24 V
• Required fuse: 3 x 16 A

Machine Condition

The machine was used exclusively in a research and testing environment throughout its life, resulting in very few operating hours.
