2026 NeoDen K1830 Pick and Place Machine

Manufacturer:NeoDen

Model: K1830

Year of Manufacture:  2026

Type of Machine :  Pick and Place Machine

Technical Specifications

- Number of heads: 8 (fully closed-loop control system)

- Mounting speed: 16,000 CPH maximum

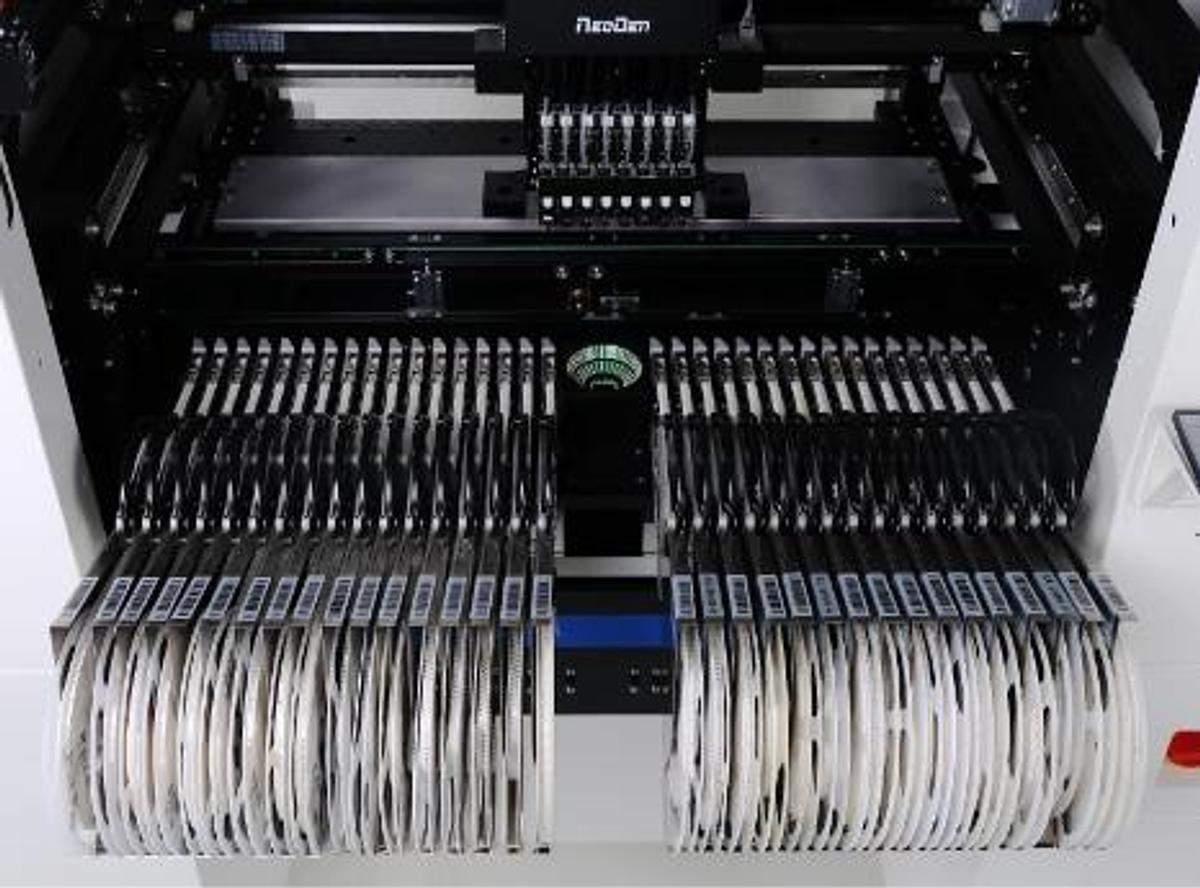

- Number of tape reel feeders: 66 (electric and pneumatic)

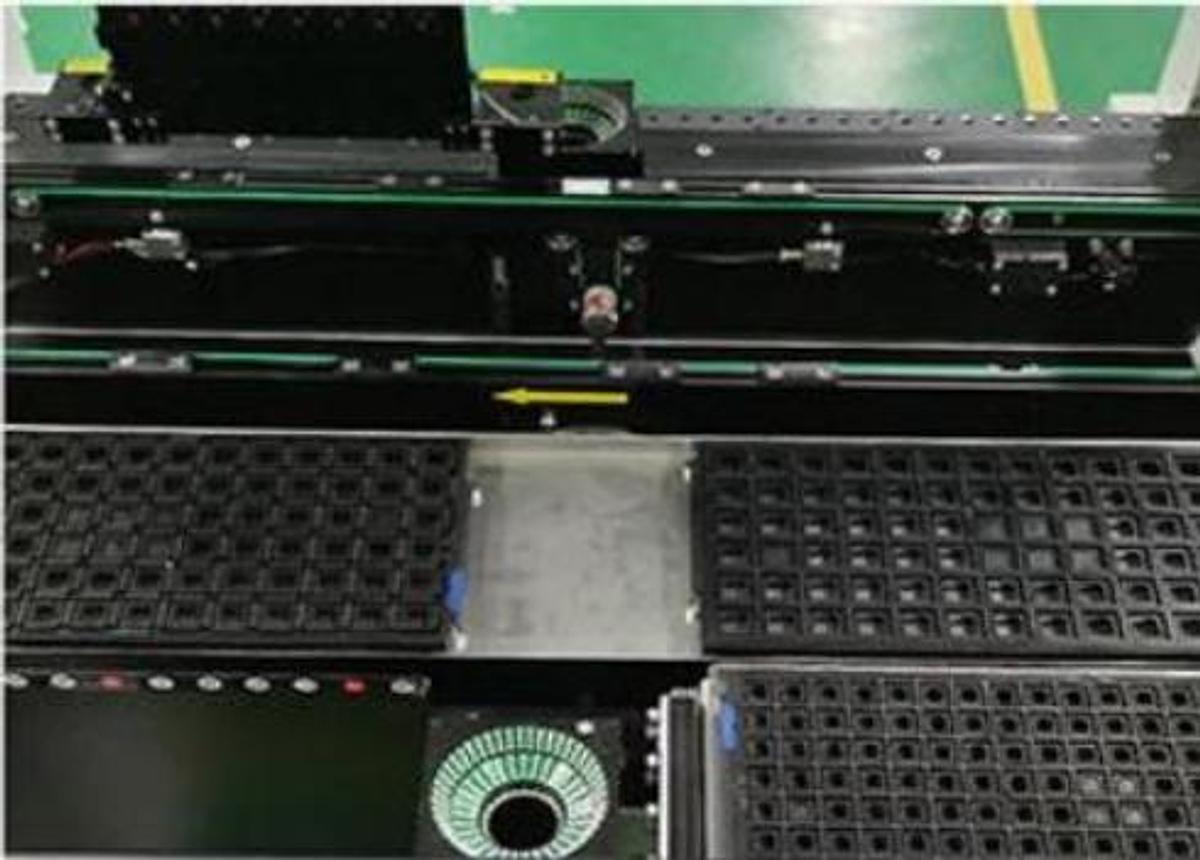

- Number of IC trays: 10

- Placement area: 540x300 mm (1500 mm optional)

- Maximum mounting height: 18 mm

- Mark camera recognition system: 2 groups, left and right, US ON sensors

- Flying camera recognition system: 2 groups, front and rear, US ON sensors

- Operation system: patented SMT Mounting Operation System V1.3

- XY motion feedback control: SPM/IBG magnetic linear encoder

- XY drive motor: Panasonic A6 750W servo motor

- Repeat position accuracy: 0.01 mm

- Compressed air: more than 0.6 MPa, maximum flow rate 37 L/min

- Voltage: AC 110V/220V, 50Hz/60Hz

- Machine dimensions: 1290x1060x1300 mm (L x W x H)

- Net weight: 360 kg

Key Features and Highlights

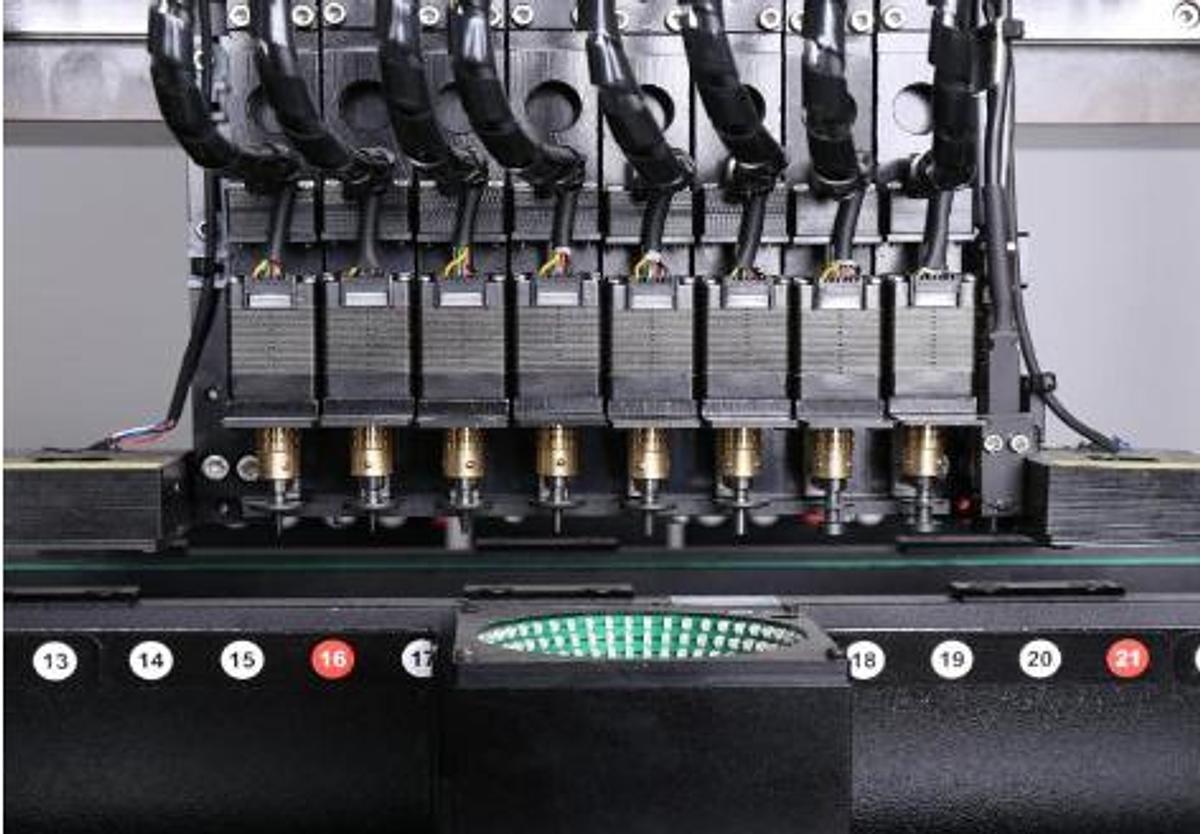

- 8 independent heads with fully closed-loop control system supporting simultaneous pick-up

from all 8mm feeders at up to 13,000 CPH real speed

- Double mark camera plus double side high precision flying camera system for high speed and

accuracy with real-time calculation

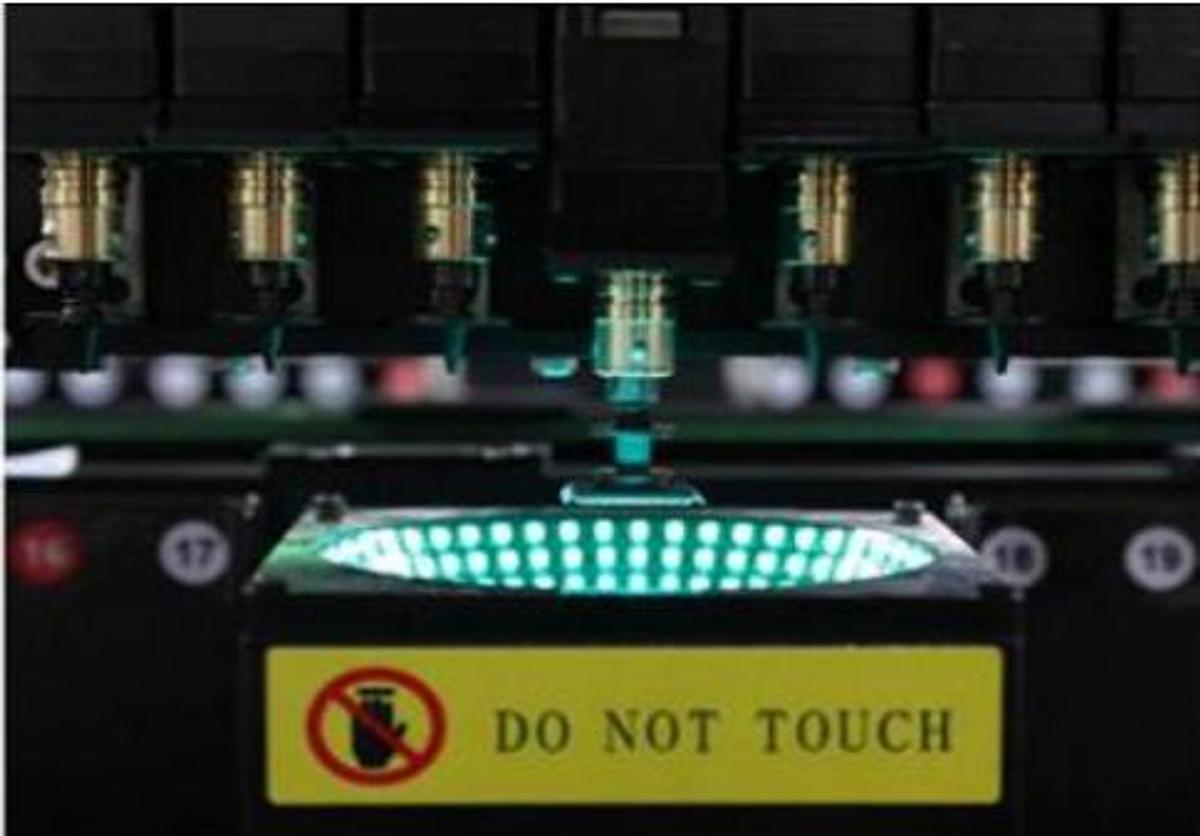

- 4th generation high speed flying camera recognition with US ON sensors and 28mm industrial

lens for flying shots and high accuracy recognition

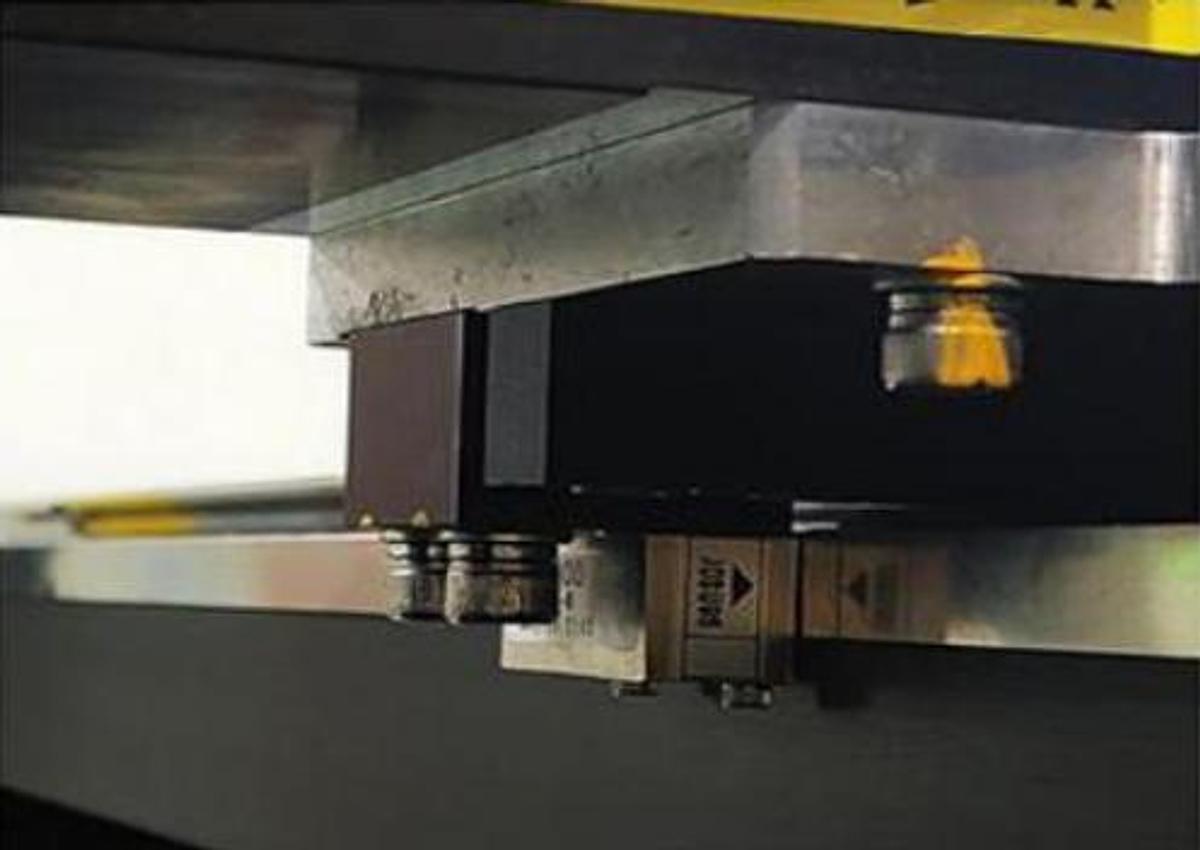

- Magnetic linear encoder system real-time monitoring of machine accuracy with automatic error

parameter correction

- Marble body construction weighing 360 kg for rock-solid stability without vibration during

high-speed operation

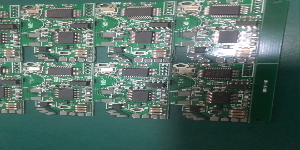

- Precision placement of 0201, QFN, and QFP fine-pitch IC components with high accuracy

- Patented sensor technology supporting both standard and black PCB mounting with high

accuracy

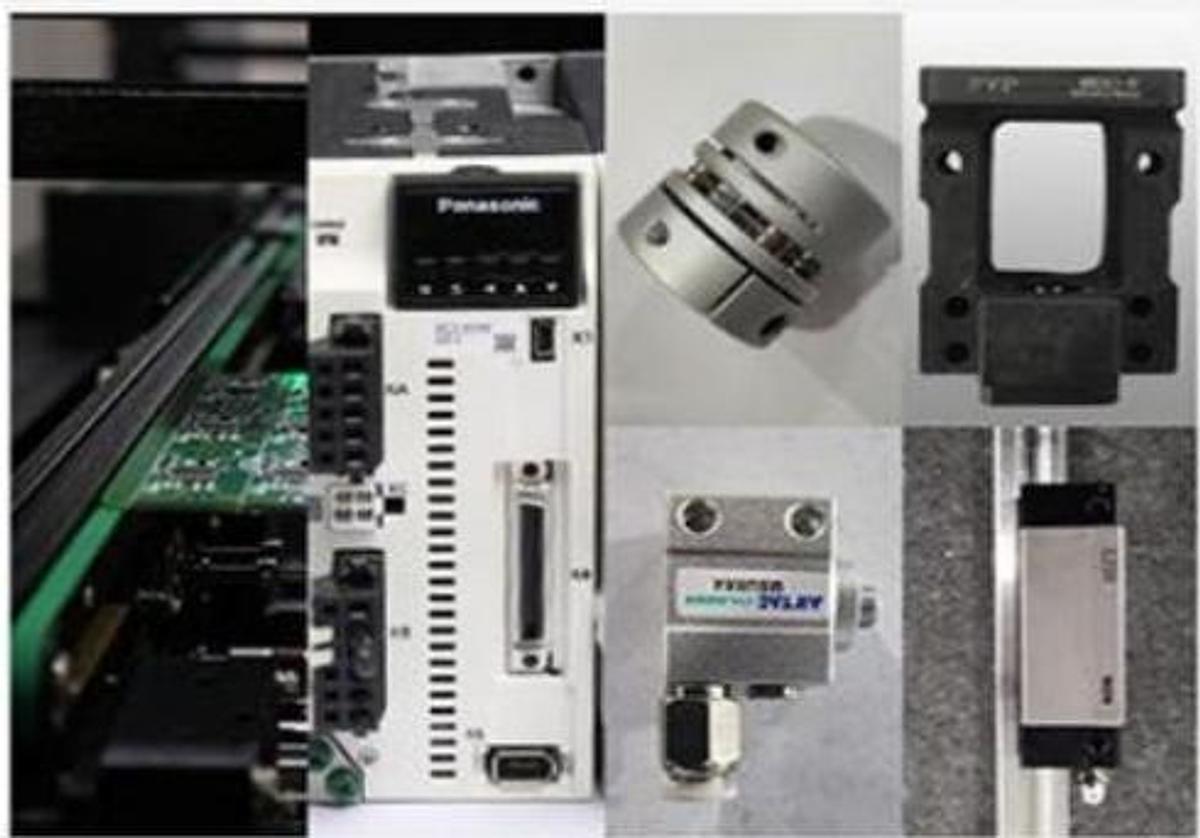

- Premium branded components: Panasonic A6 servo motor and Miki high performance coupling

from Japan; Sungil base, WON linear guide, and Airtac valve from Korea

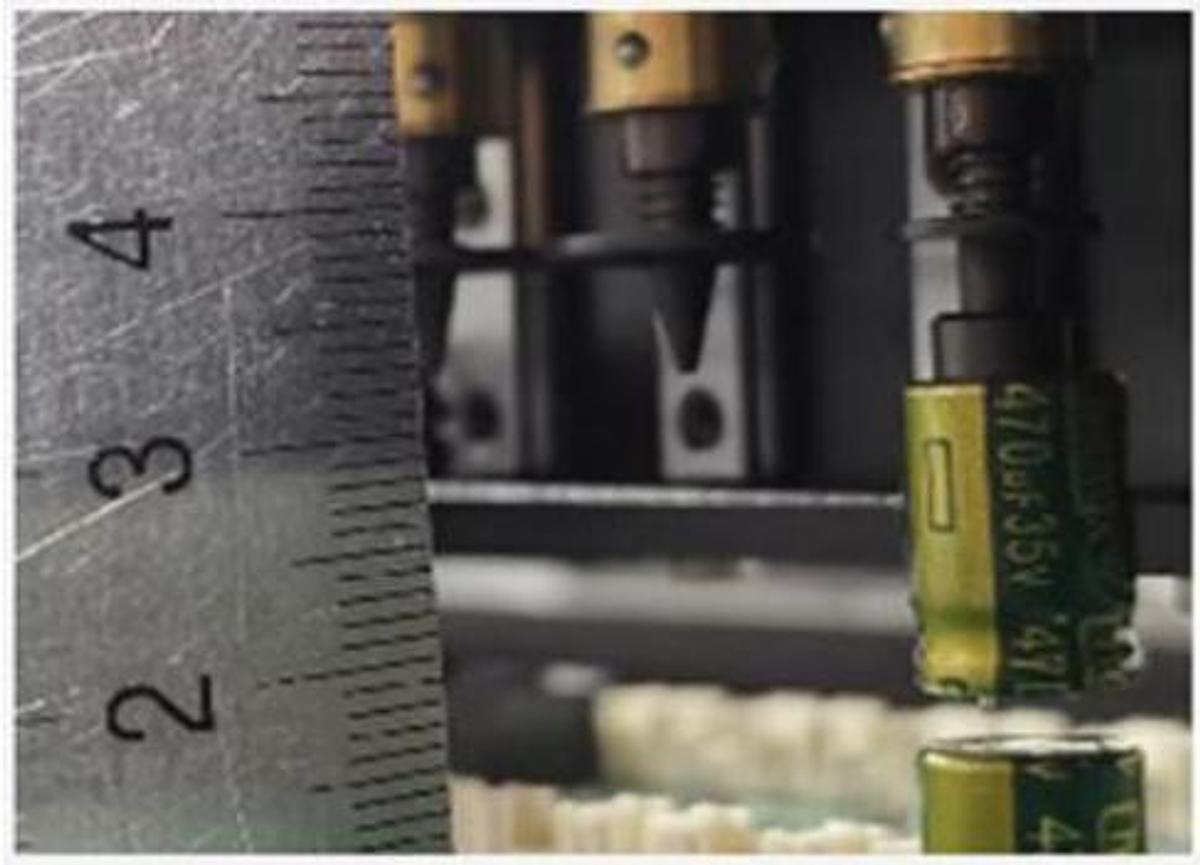

- Maximum mounting height of 18 mm with precision design and stable performance

- Support for up to 4 pallet trays of chips (optional configuration)

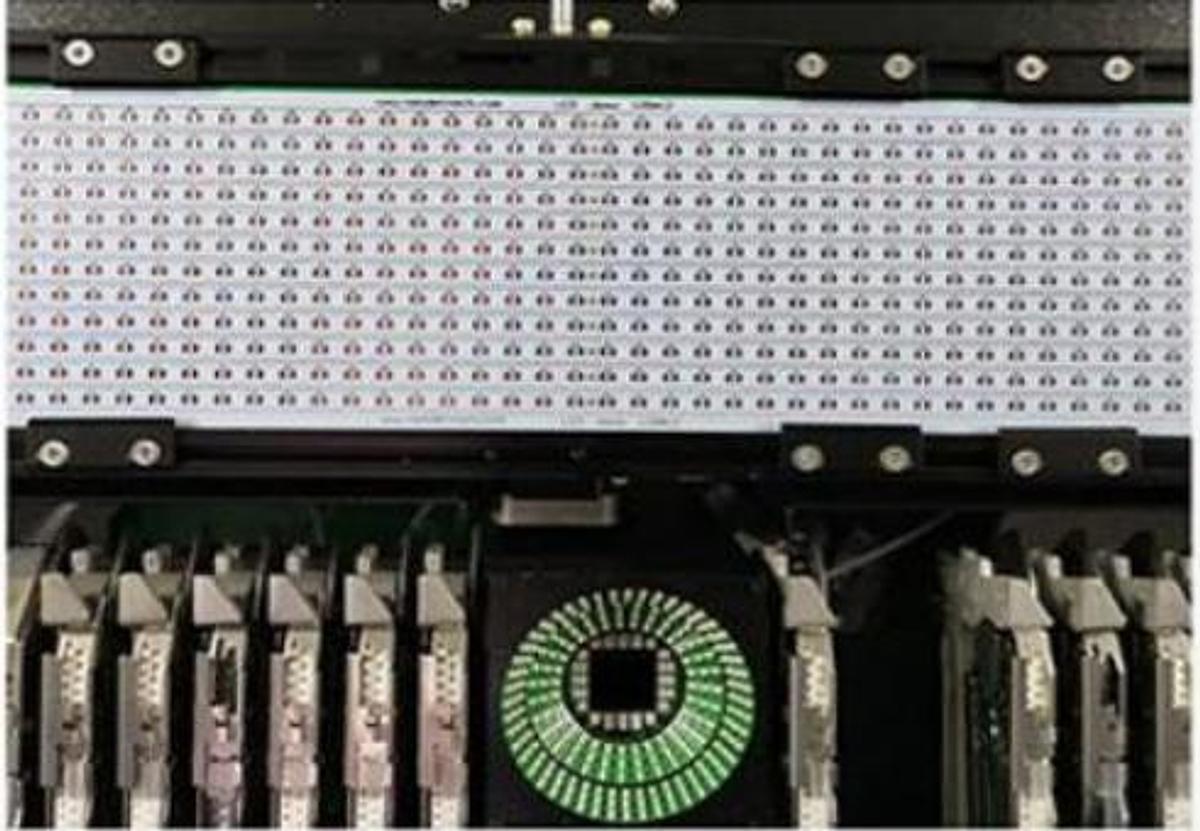

- Support for 1.5M LED light bar placement (optional configuration)

- Intelligent programming interface with 1-click coordinate import identifying top and bottom

layers automatically

- Automatic component footprint library recognition with factory standard library included

- Lifetime free software upgrades (FOC)
