2015 Brückner 2 section 1850 digital-textile dryer

2015 Brückner 2 section 1850 digital-textile dryer

Contact us for price

Available quantity: 1

Nijmegen, Netherlands

Description

The Brückner 2 section 1850 digital-textile dryer is a state-of-the-art industrial dryer designed for drying and heat-setting of digital textile prints on polyester and other synthetic fabrics.

The machine has 0 operating hours and is brand-new.


Machine Description:

  • The machine consists of two sections, each with a length of 18.5 meters (60.7 feet).
  • The dryer features an innovative air circulation system with a closed loop design for efficient heat transfer and uniform drying.
  • The machine is equipped with advanced infrared heating technology and an efficient exhaust system for fast and energy-saving drying.
  • The dryer also features a user-friendly control system with a touch screen interface for easy operation and monitoring of the drying process.
  • The machine is designed with a compact footprint, and it can be easily integrated into a digital textile printing production line.

Specifications:

  • Maximum fabric width: 1850mm (72.8 inches)
  • Maximum production speed: 30 m/min (98.4 ft/min)
  • Heating method: Infrared radiation
  • Number of heating zones: 3 per section
  • Temperature range: Up to 250°C (482°F)
  • Control system: Touch screen interface with PLC control
  • Exhaust system: High-performance exhaust fan with adjustable air flow
  • Power supply: 380V, 50Hz, 3-phase
  • Total power consumption: 67 kW
  • Dimensions (L x W x H): 39.4m x 3.5m x 3.5m (129.3 ft x 11.5 ft x 11.5 ft)
  • Weight: 23,000 kg (50,706 lbs)

Overall, the Brückner 2 section 1850 digital-textile dryer is a highly efficient and reliable machine suitable for industrial-scale drying of digital textile prints on polyester and other synthetic fabrics. It is designed with advanced heating technology, a closed-loop air circulation system, and a user-friendly control system for optimal performance and ease of use.

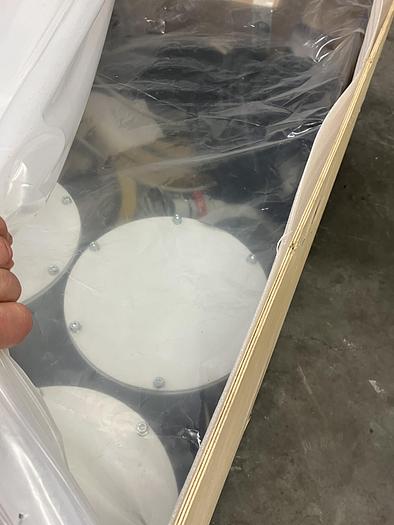

The dryer is sealed and packed with Silica gel for dry conditions.

The dryer also stands on a very solid transport frame, this is because this dryer stood on this frame at a trafefair.

The frame comes together with the dryer and there is no need to return.



If we open the packaging, we must seal it in afterwards completely new what is costly.

If you are interested, we can open the plastic seal wrap in you presents.



The infeed is open, as you can see.

All small parts belonging to this dryer are in a plywood box.



Hoop this information gives you a good impression of this dryer and the excellent quality/ condition.


Find more here - https://www.ucymachines.com/

Specifications

ManufacturerBrückner
Model2 section 1850 digital-textile dryer
Year2015
ConditionUsed
