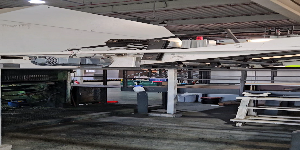

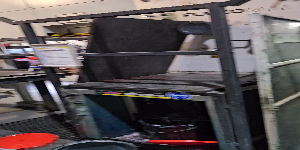

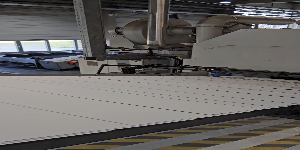

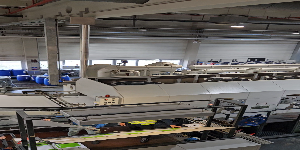

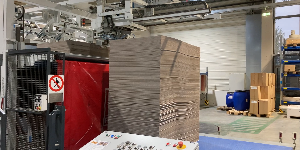

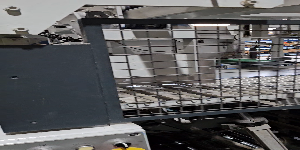

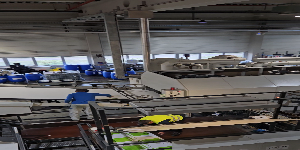

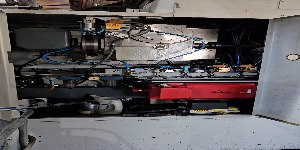

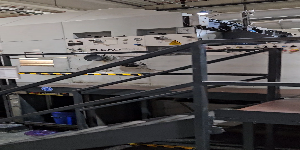

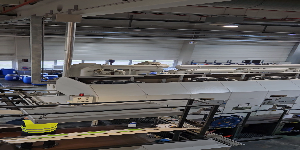

1988 Bobst Flexo 200

Manufacturer: Bobst

Model: Flexo 200

Feeder type: Vacuum sheet feeder with pneumatic pressure plate

Anilox rollers: All used, ceramic

Printing units 1–4: 160 lines/cm, maximum feed volume 8.5 cm³/m²

Printing unit 5: 100 lines/cm, maximum feed volume 10.5 cm³/m²

Doctor blade system: Ceramic anilox rollers with metal doctor blade

Vacuum sheet transport: Yes, 2007 vacuum transport (modified stainless steel suction plate)

System upgrades: Sheet cleaning and warm air dryer, both Type 2 200 from DUO-TECHNIK; steam pressure reduction station from Helmut Herbert GmbH

The running speed of the system is approximately 4,000 sheets per hour.

Spare parts: ST= pieces

Bezeichnung Lief.Artikelnr. Bestand BasisME

Freilauf FK 24 AP BSA1101010400 2 ST

Freilauf FB 44 SF BSA1101047600 2 ST

Rutschnabe kplt. M. Kettenrad 16H7 Z20 RN 250M-1/KR 2 ST

Reibscheibe RN 250/RS RN 250/RS 8 ST

Tellerfeder RN 250/TF RN 250/TF 4 ST

Lagerbuchse f. Kettenradscheibe RN 250 DIV 1 ST

Welle BSA0658105500 1 ST

Keil 90x28x16 BSA0584103200 2 ST

Hohlflanschwelle 19715545 1 ST

Antriebsriemen Optibelt-RB PL 2197 04 3040 0000 1 ST

Verteiler (Lucifer) 341B34 BSA2335615400 1 ST

Stange BSA0658252800 3 ST

Kardangelenk BSA1108007500 3 ST

Balg BSA1159008300 3 ST

Gewindestange BSA0658253300 3 ST

Linearantrieb DGC-25-410-GF-PPV-A 532447 2 ST

Farbsensor / Sonde BSA0658218100 2 ST

Ventilspule 40mm 1022509 11 ST

3/2-Wege-Handhebelventil 8987 4 ST

Achse D8h6 x 135mm oberfläschengehärtet 19 ST

Walze aus V2A BSA0658191100 19 ST

Verbindungswelle Flexo 140.5 34.5 140.5 34.5 1 ST

Achse Flexo 8 x 135 mm BSA0658302500 9 ST

MRV009C Ingersol Luftmotor 21868419/MRV009C 1 ST

Flügelrotor AD=140mm,ID=10mm,(Propeller) EB872109272060-FLÜGEL 1 ST

Saugnapfkoerper BSA0584195100 2 ST

Dichtung für Saugnapfkoerper BSA1155262900 30 ST

Transportband 8680x50 mm Endlos + Hacken P2234457 6 ST

Detektor BSA07000000CZ 3 ST

Magnetventil MVH-5/3G-1/4-B 19138 3 ST

Zahnflachriemen T10 720 Alpha Torque B32 04 5818 0032 1 ST

Zahnscheibe T10, Z16 2 ST

Block BSA0658190800 9 ST

Block BSA0658190900 9 ST

Oelschauglass BSA1249000700 7 ST

TGT-Petroflex-SD10 DN38x5mm Schlauch 90SLAD1000038 5,6 M

Verteilerblock BSA05840000GX 1 ST

Verteiler (Lucifer) E331B01 BSA2335613900 1 ST

MHE3-MS1H-3/2G-1/8 Festo Magnetventil 525147 3 ST

Bobst Flexo 200 Gummiwalze BSA05990000JT 1 ST

Bobst Flexo 200 Rasterwalze BSA0599100800 1 ST

Bobst Flexo 200 Einzugswalze BSA05990000BG 1 ST
