Cimbria SEA Chrome 7

Manufacturer: Cimbria

Model: SEA Chrome 7

Type of Machine : Optical color sorting system for sorting copper, aluminum and brass

Sorting Function : Separates particles with non-conforming surface color from conforming ones.

• Seven trichromatic, full-resolution cameras on the front and back ensure perfect detection of even the smallest differences.

- Sorting possible down to a size of 30mm

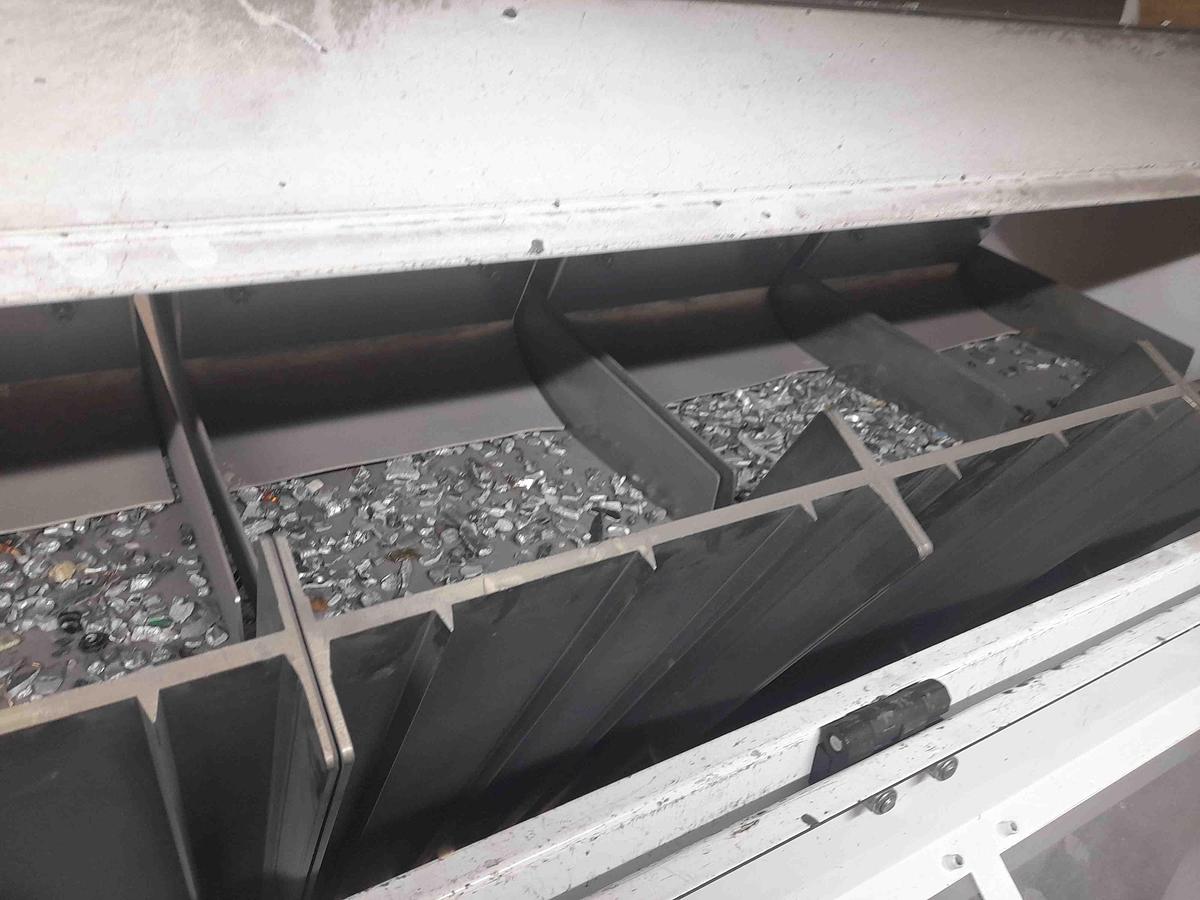

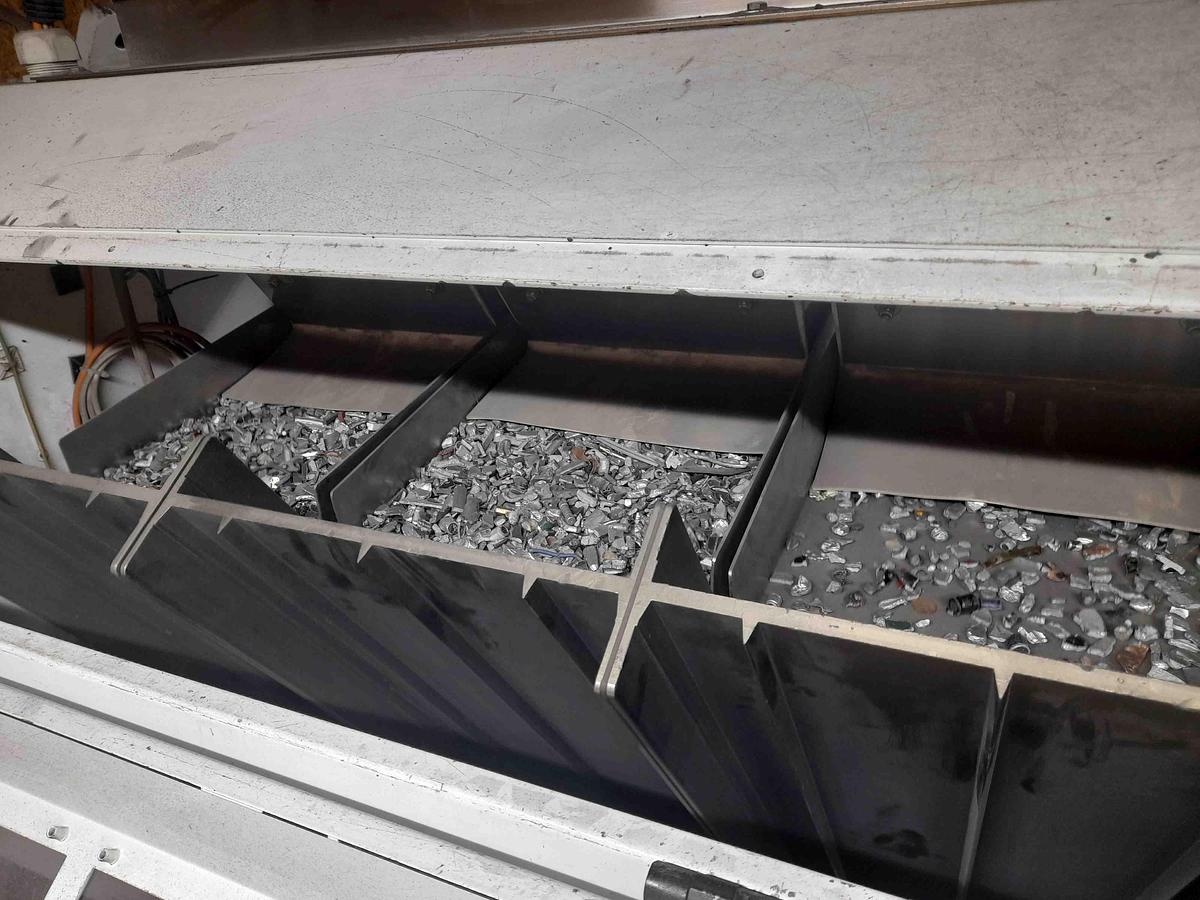

- Feeding is done via 7 individually adjustable vibrating troughs

• The materials are removed using compressed air (4 bar).

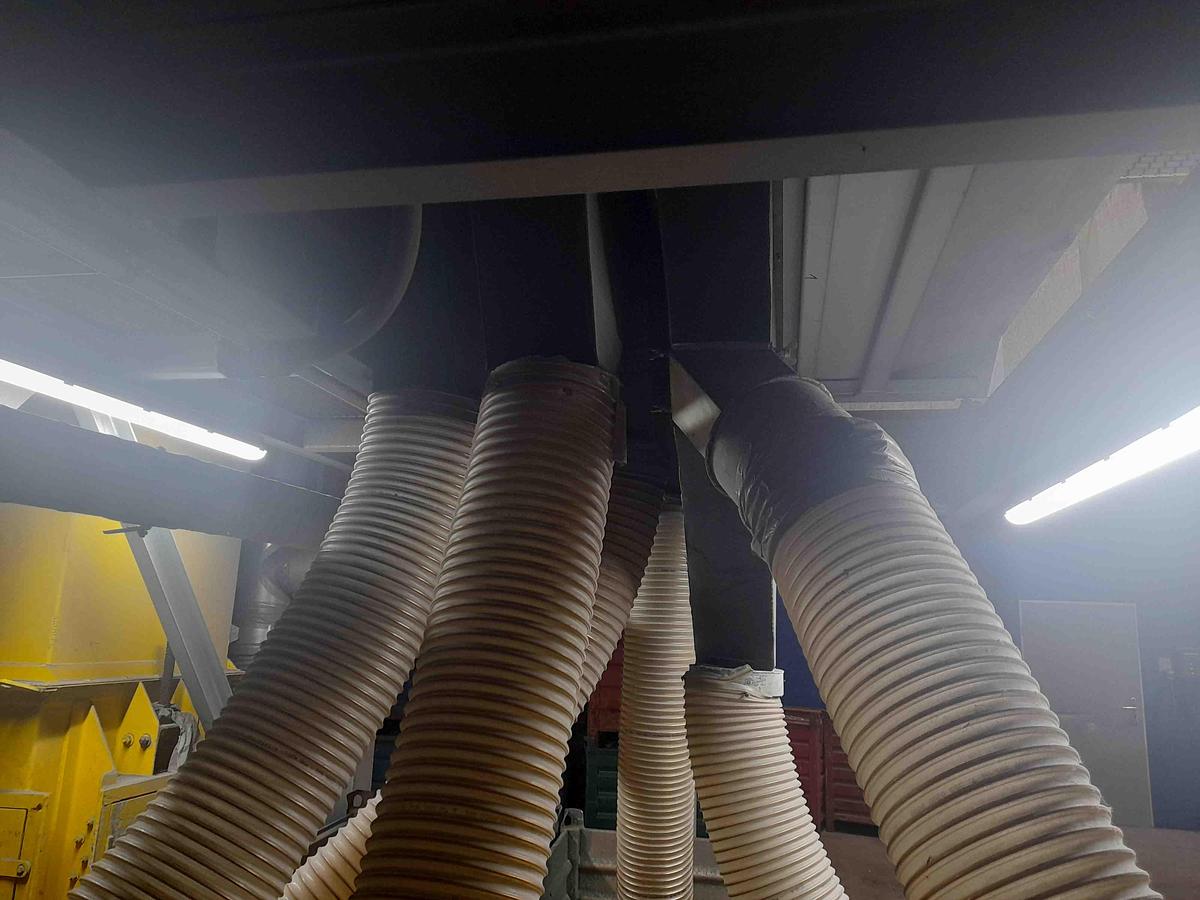

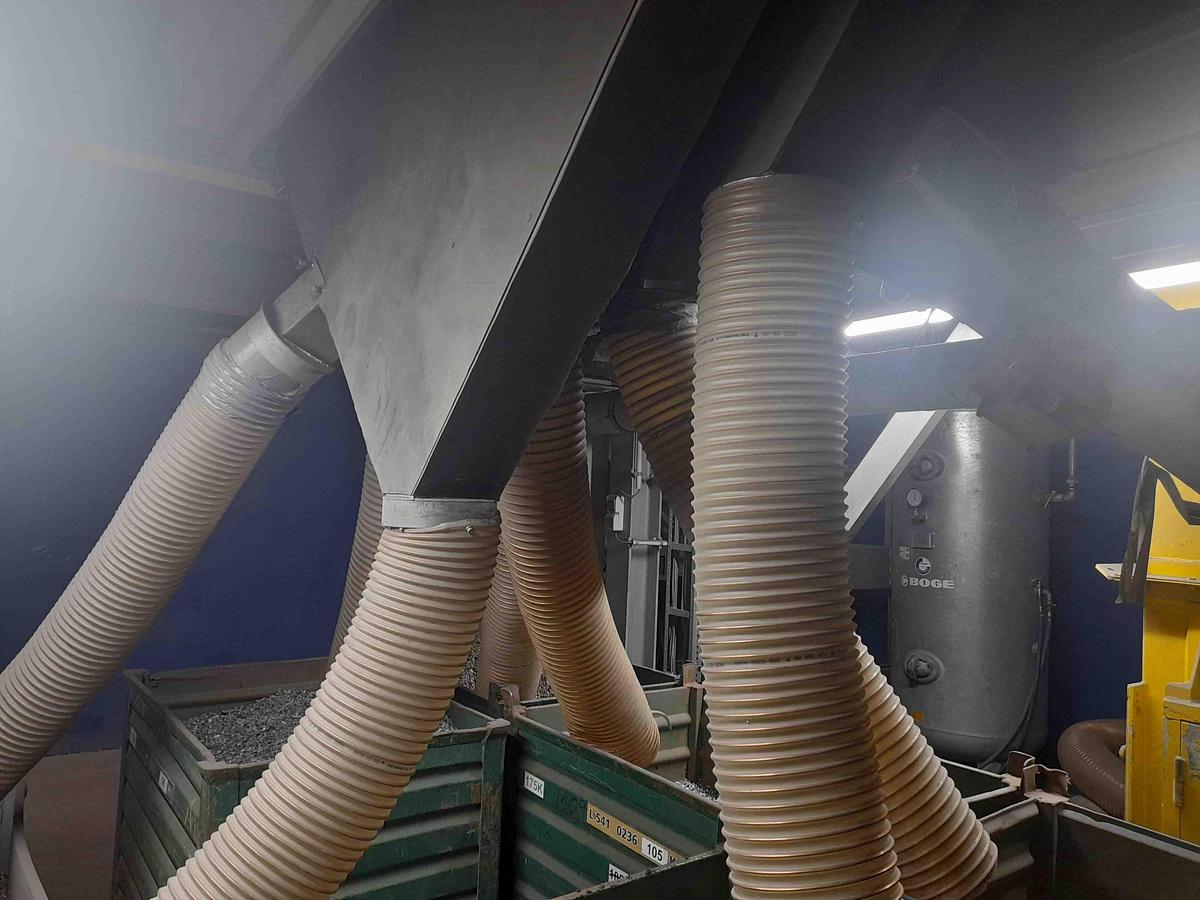

• The system has 7 outlets (3+2+2), allowing two different material flows to be separated simultaneously.

- Material is supplied via a two-chamber bunker

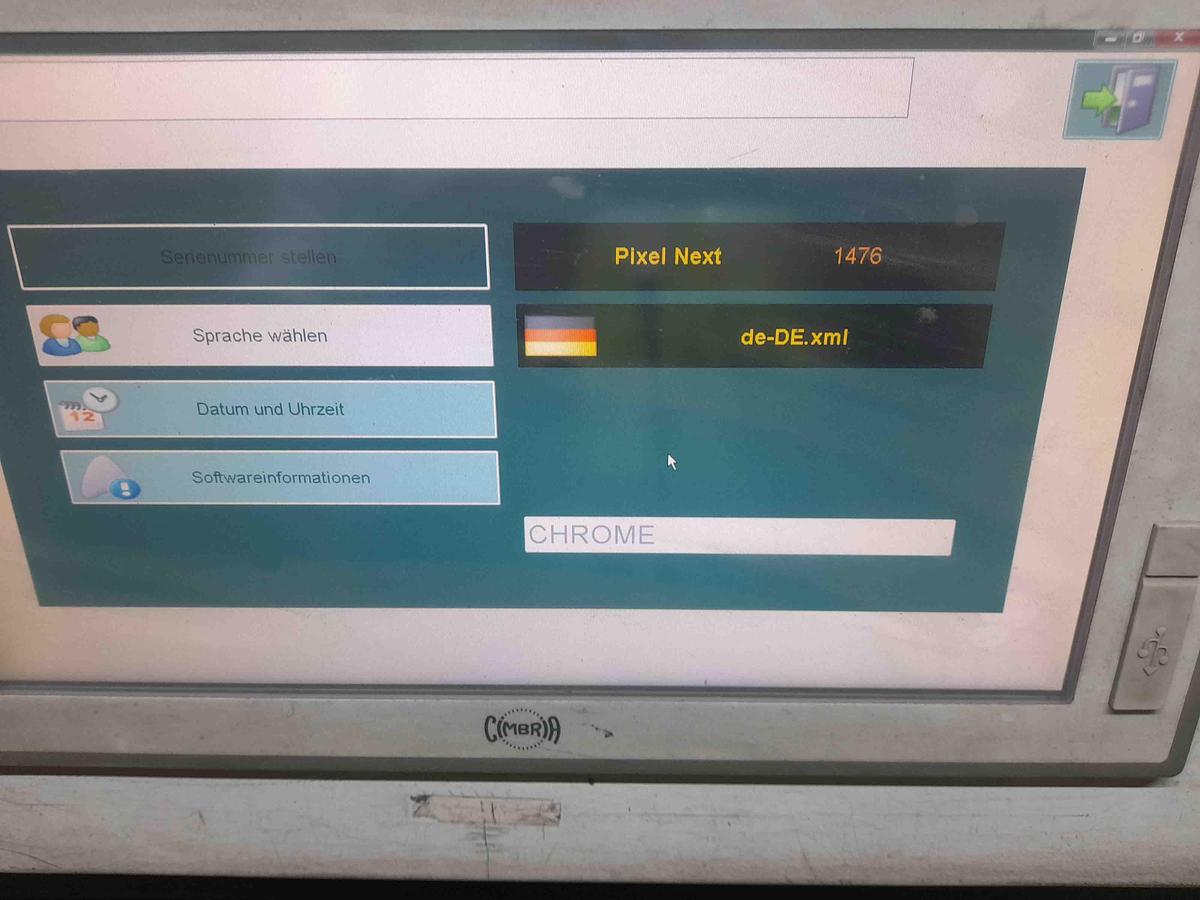

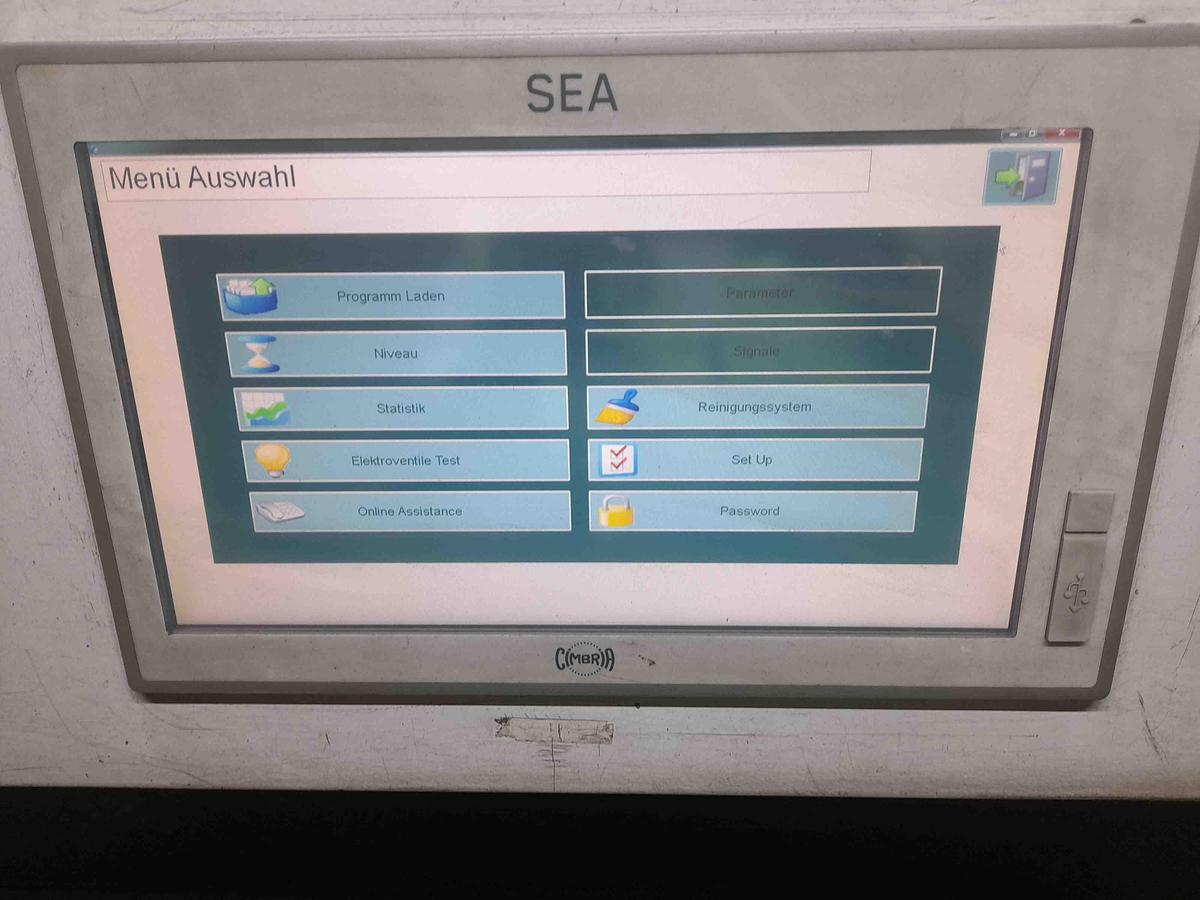

- Program settings and adjustments can be made via user-friendly software.

- Creating individual programs for sorting materials is possible

- Automatic diagnostics and calibrations ensure the functional stability of the machine.

- Service via Internet and remote access possible

- The plant was in operation until recently (2025)

Techical Specifications

Dimensions mm. (w,d,h): 2.470 x 1.690 x 2.050

Weight 1.400 Kg

Power supply: 220 Vac / 50 Hz

Consumption: 3.5 kW

Tension variation: ± 2% max. An outside supply stabilizer

must be suitably installed

Normal air pressure : 6 Bar

Air consumption: 58 lt/sec. max Data can vary according to the contamination rate contained in the

initial product

Ejectors pression fied: 4 bar

Pre-filtering required: Protection 0.01ppm. Air free of moisture and oil

Compressed air connection :1” (internal diameter)

Certification: EU certified
