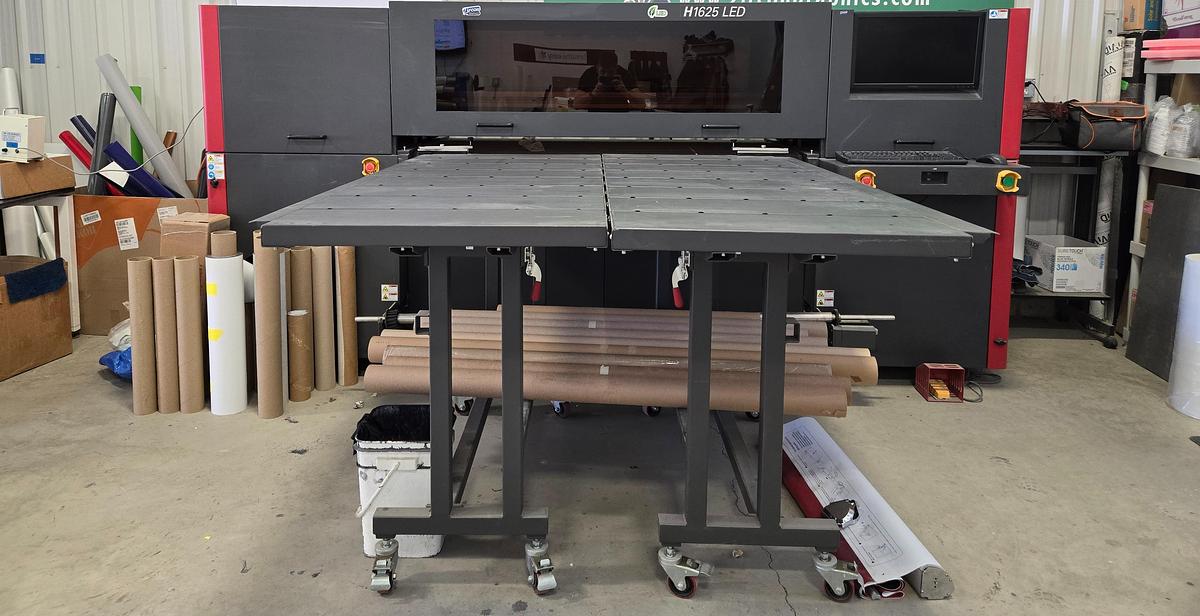

EFI H1625 LED UV

Manufacturer: EFI

Model: H1625 LED UV

Print Technology & Performance

• UV LED cool-curing with Variable Drop Grayscale (8 levels)
• Maximum resolution: 1200 × 1200 dpi
• Print speed up to 458 sq. ft./hr (Express Mode)

Color Configuration

• Standard CMYK
• Optional white ink channels for specialty and layered applications

Media Handling

• Supports flexible and rigid media up to 65 in (165 cm) wide
• Prints on materials up to 2 in (5.08 cm) thick
• Full-bleed image width up to 64 in (162.6 cm)
• Vacuum belt drive system ensures stable media hold
• Maximum roll diameter: 9 in (22.9 cm)
• Maximum roll weight: 100 lbs (45.4 kg)

Software & Ink

• Includes EFI Fiery XF RIP software

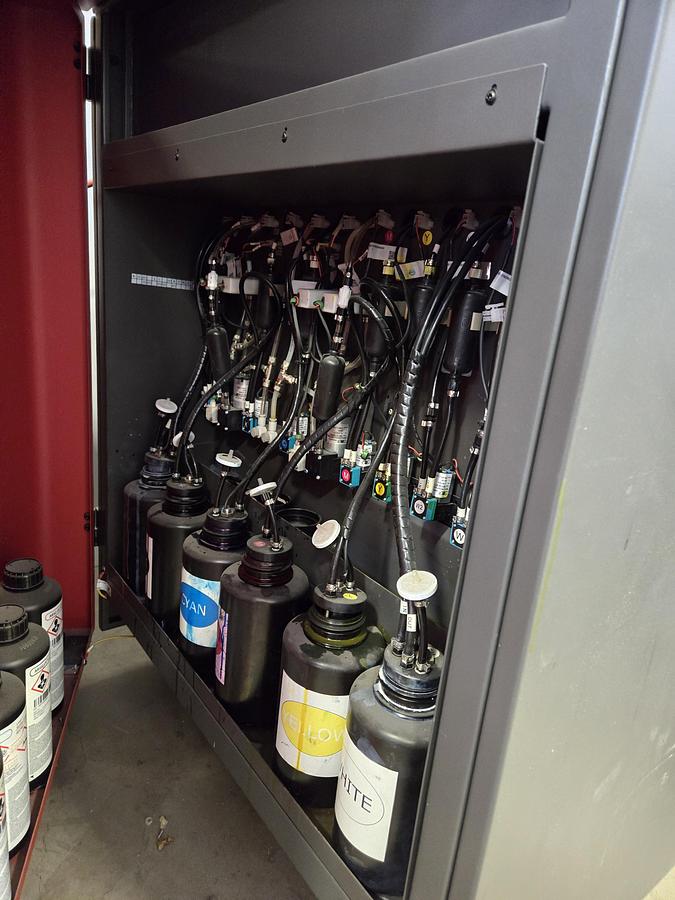

• Compatible with EFI ProGraphics UV inks (POP or optional 3M co-branded inks)

Advanced Features

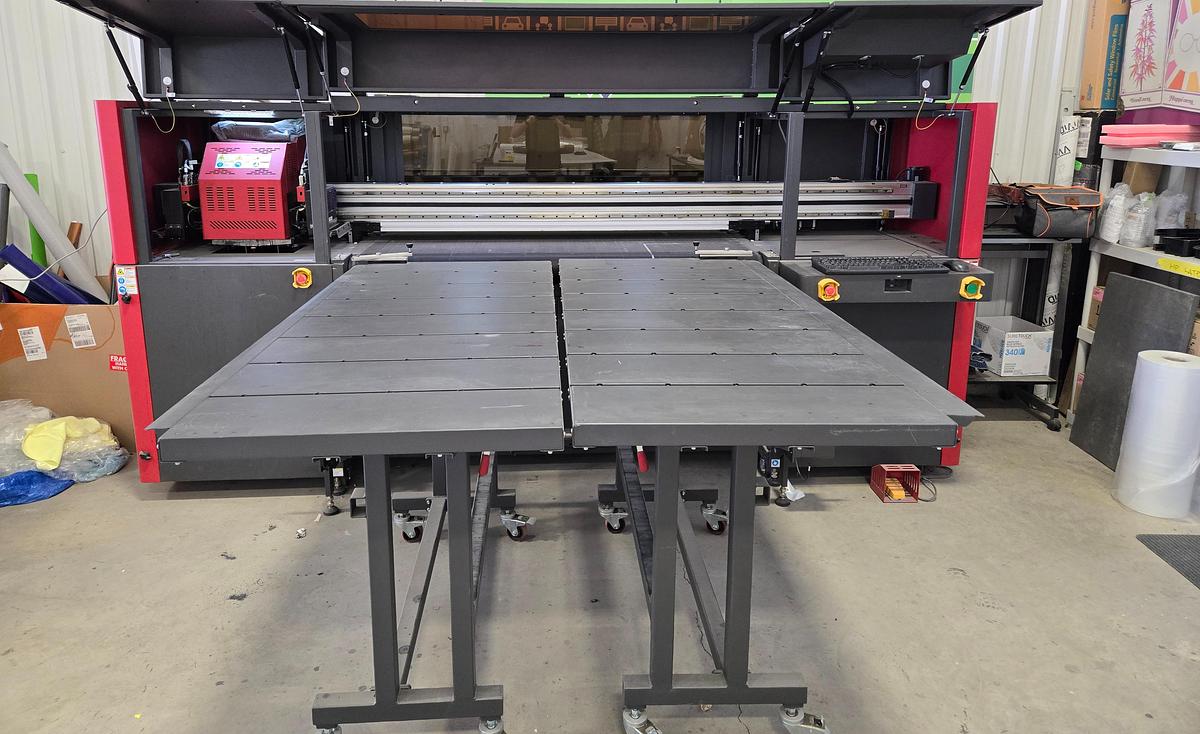

• Modular table system for scalable rigid media depth
• Multi-layer printing ideal for backlit and specialty graphics
• Native JDF connectivity for seamless MIS/ERP integration

Dimensions

• Approx. 137″ W × 88″ D × 64″ H
• (348 × 224 × 163 cm, with tables installed)
