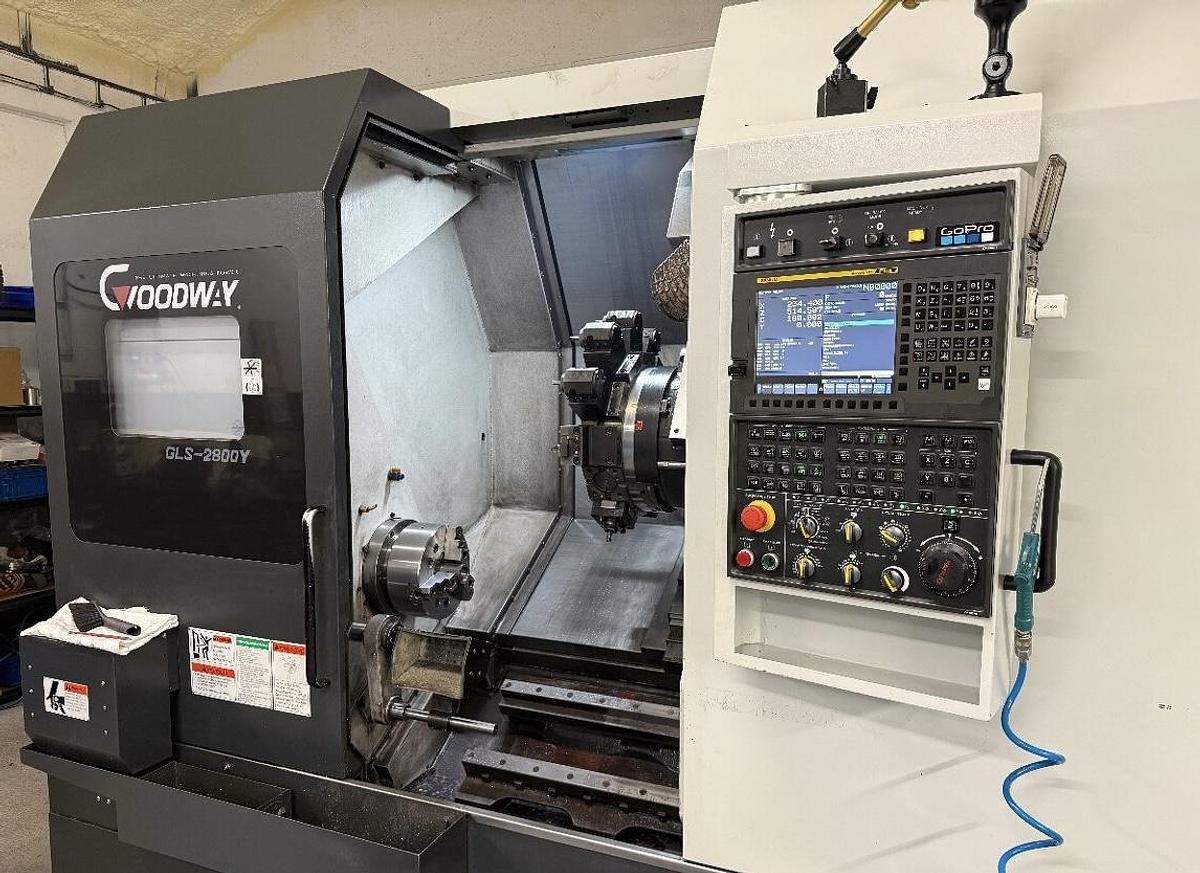

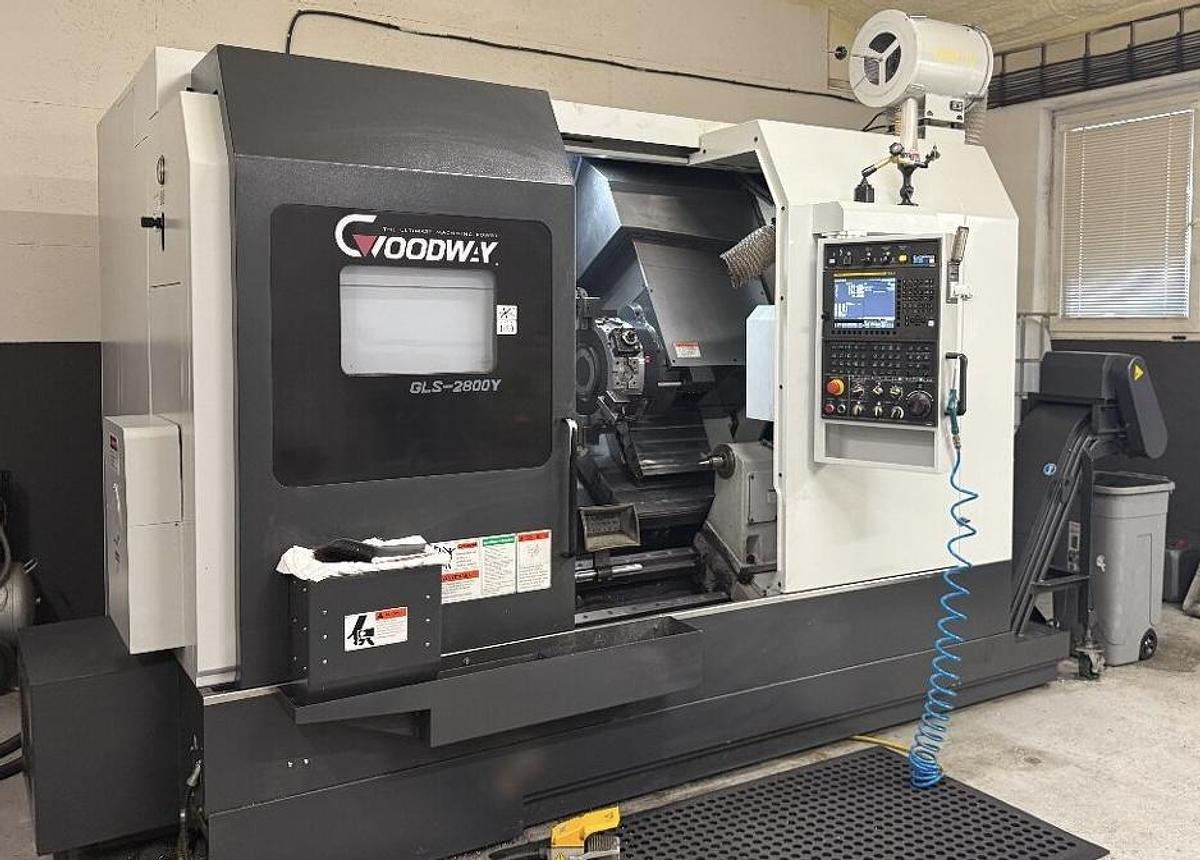

2021 Goodway GLS-2800 Y

CNC lathe

Type: GLS-2800 Y

Manufacturer: Goodway

Year: 2021

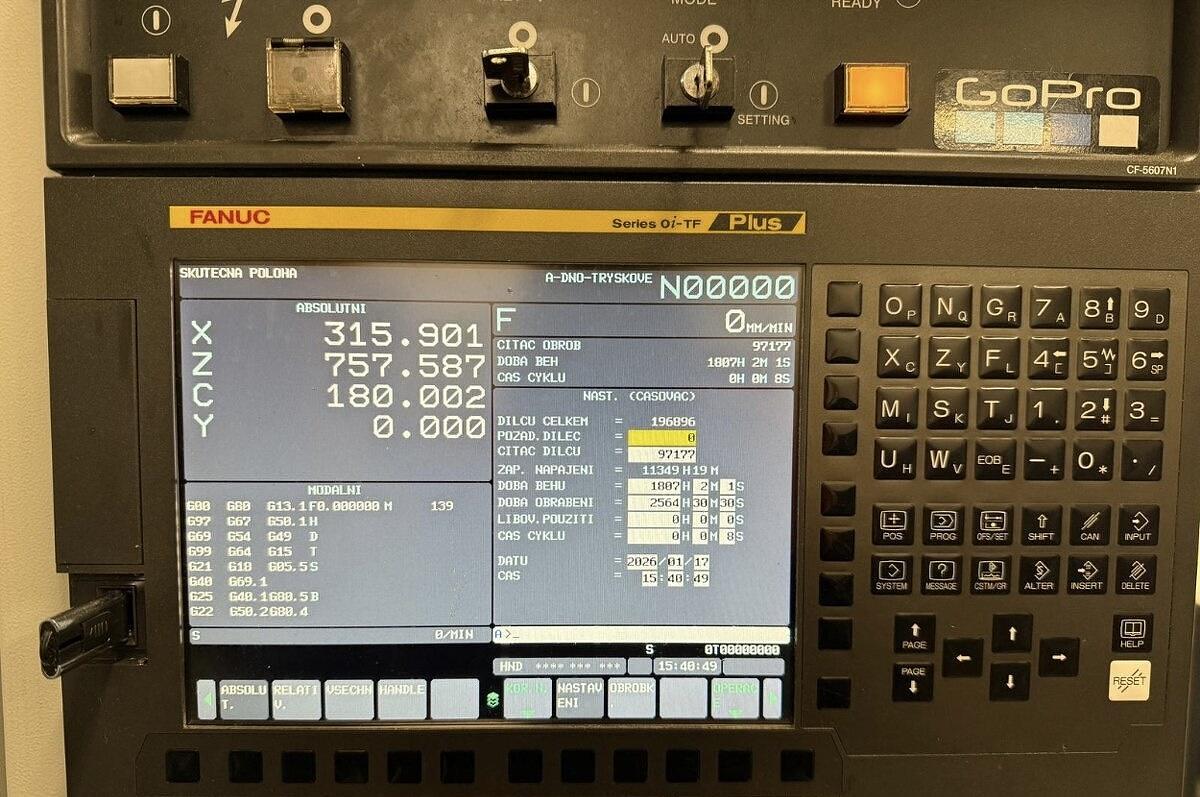

Control: Fanuc Series Oi-TF Plus

Working hours: 2564

Max turning diameter: 400 mm

Max circulating diameter: 760 mm

Max turning length: 680 mm

Max spindle passage: 75 mm

X: 250 mm

Z: 750 mm

Y: +-50 mm

C-axis

Rapid traverses X/Z/Y: 30/30/12 m/min

Spindle motor power: 15 / 18.5 kW

Max spindle speed (2 speed): 0–875 / 0–3500 rpm⁻¹

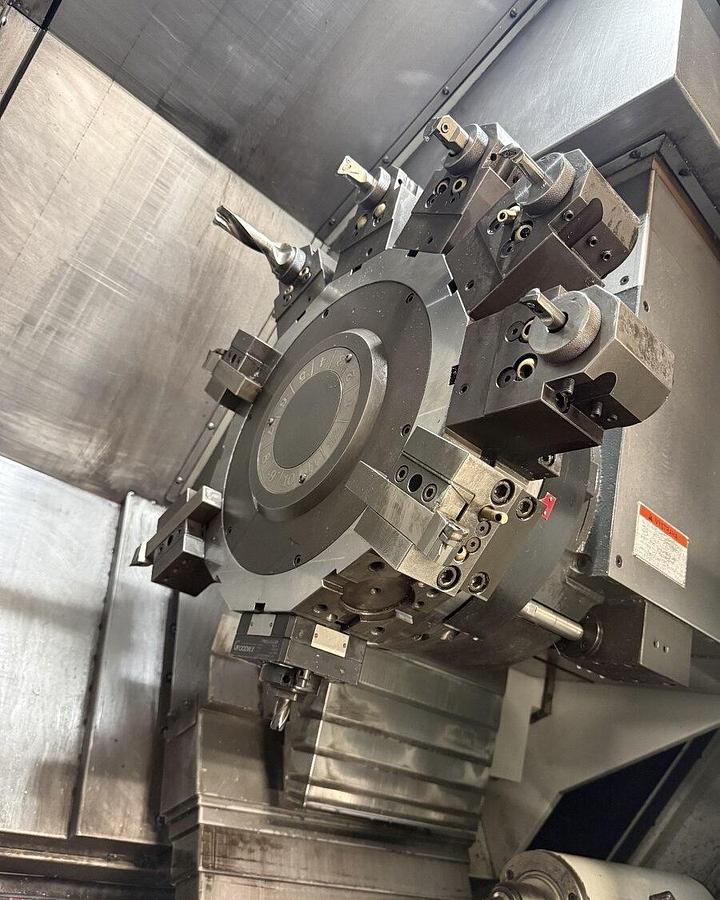

Turret power for powered holders: 3.7 / 5.5 kW (30 min)

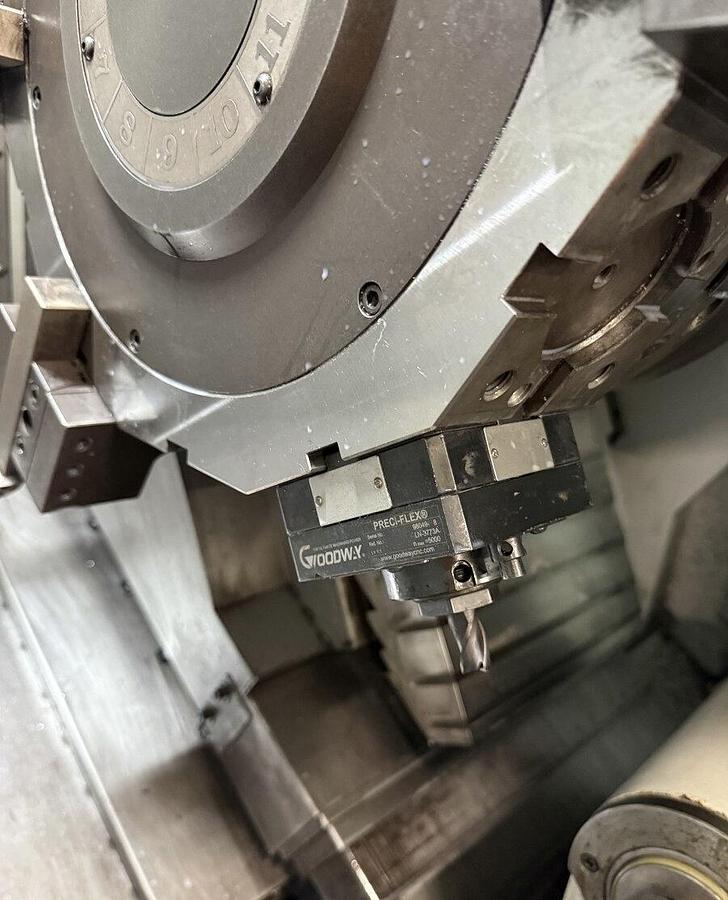

Max speed of driven holders: 6000rpm

Performance of servomotors for X/Z/Y axes: 2.7 / 2.7 / 2.7 kW

Cooling pump motor power: 0.5 kW

Maximum torque on MK spindle: 527 / 757 (30 min) N·m

Maximum torque of driven brackets: 35 N·m (15 min, 1500 rpm)

Range of recommended clamping pressures for clamping: 0.35 MPa – 3 MPa

Machine weight: 6000 kg

Dimensions: 3230 × 2100 × 2252 mm

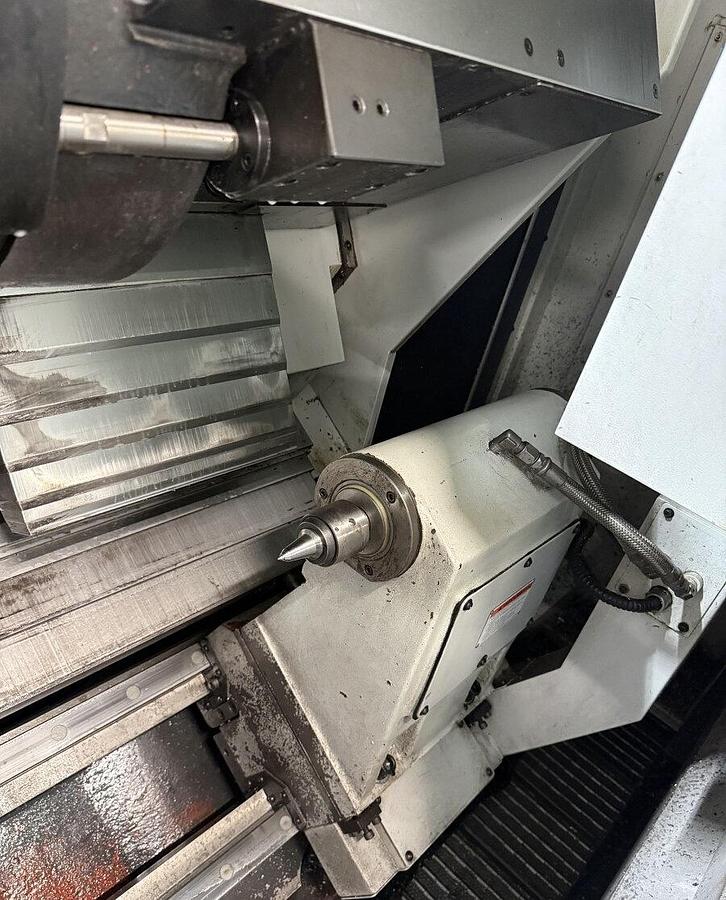

Tailstock

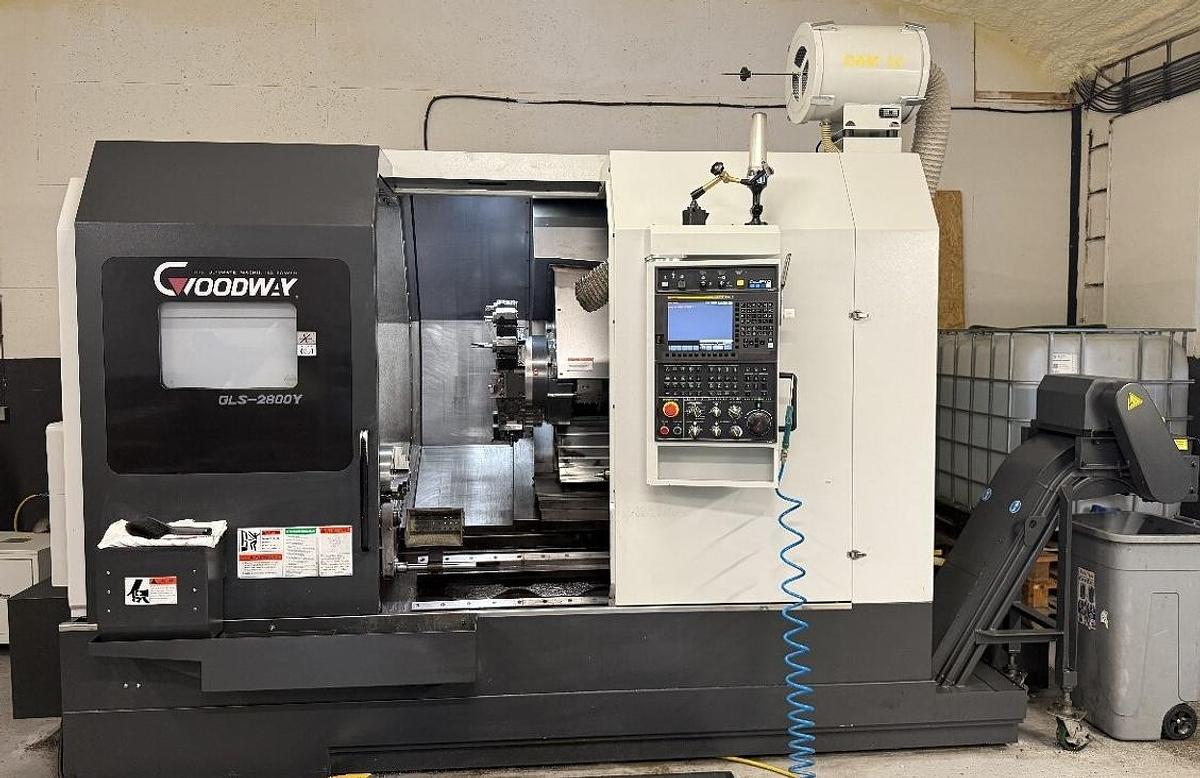

Chip conveyor

Machine in very good condition, under power
