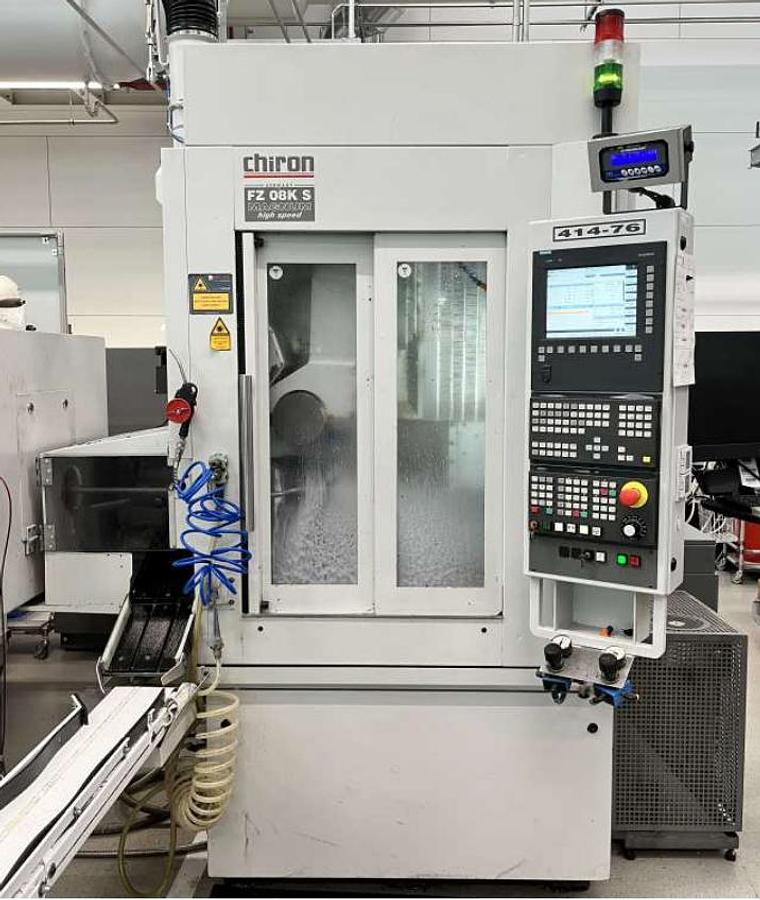

2007 Chiron FZ 08K S Magnum SK

Manufacturer: Chiron

Model: FZ 08K S Magnum SK

Year of Manufacture : 2007

Type of Machine : Vertical Machining Center

Factory overhaul: 2017 (Chiron CMS)

Operating hours: approximately 22,500 h

CNC control: Siemens 840D (PCU 20 / NCU 572.4)

Spindle: water-cooled motor spindle, 15,000 rpm

Spindle last replaced: September 2025

Last major service: October 2025 (Chiron, 4,000 h interval)

NC swivel head swivel range: -20 degrees / +115 degrees

Travel X / Y / Z: 450 mm / 270 mm / 310 mm

Rapid traverse X / Y / Z: 75 m/min

Acceleration X / Y / Z: 1g / 1.5g / 2g

Tool positions: 40 x HSK-A 40

Chip-to-chip time: 2.6 seconds vertical (DIN)

Equipment and Accessories Included

Rotary table package AWU 160 with D105 mm (positioning axis)

Hainbuch Spanntop collet chuck D100

6th side machining attachment

Part removal handling and finished parts conveyor

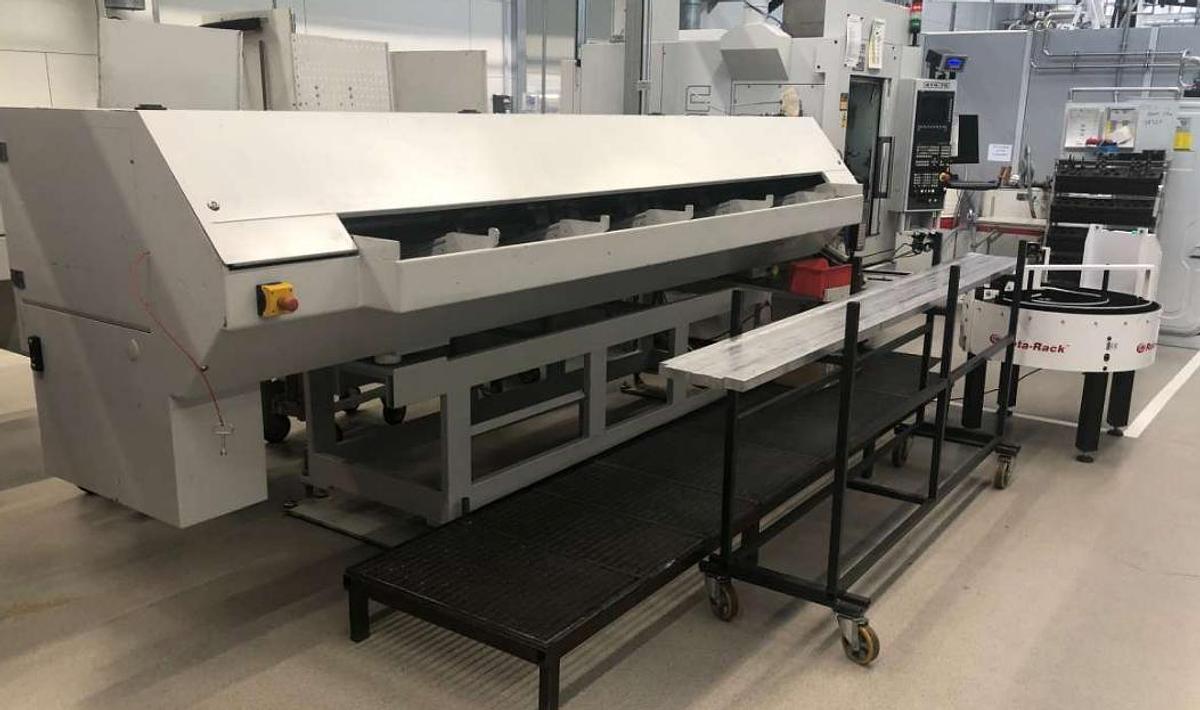

Bar loader IRCO SiMag 100.1-3000 (round and profile material, D100 / 3000 mm)

High-pressure coolant 70 bar (Varioventil)

Scratch belt chip conveyor, ejection height 1050 mm

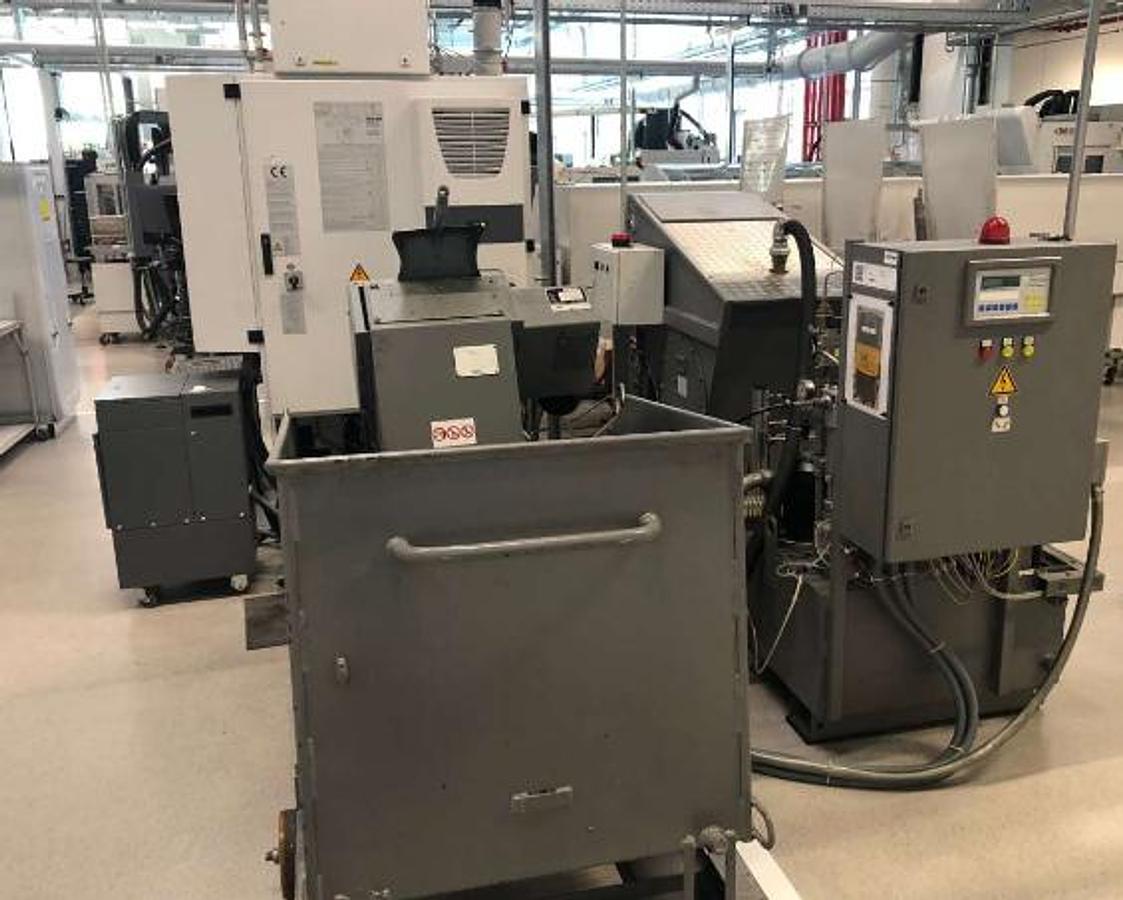

Vacuum rotation filter VRF 400 litre (KNOLL)

MAHLE double switch filter

Renishaw TS27R 3D probing system

Brankamp Marposs collision monitoring CMS 100

Tool life monitoring and tool breakage detection Single F500

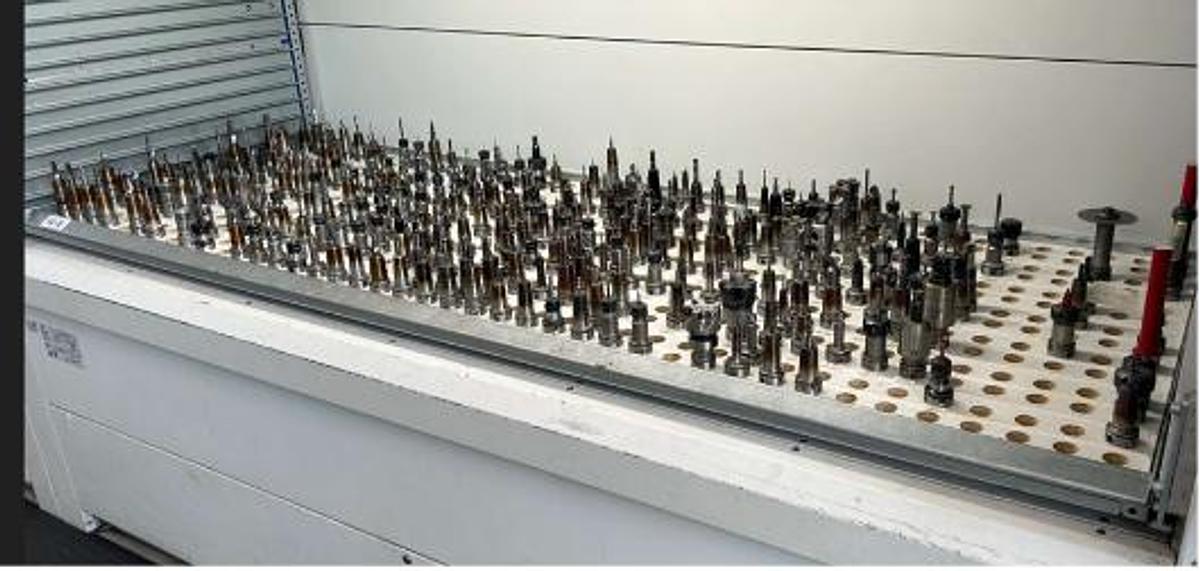

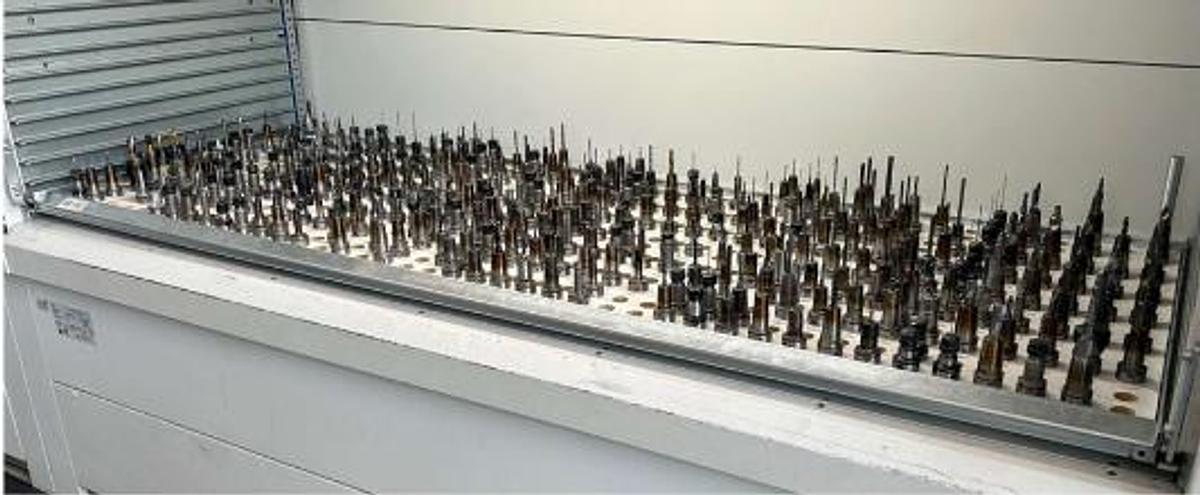

Approximately 500 HSK-A40 tool holders (Breuning IRCO guide channel sets and Hainbuch collets available upon agreement)

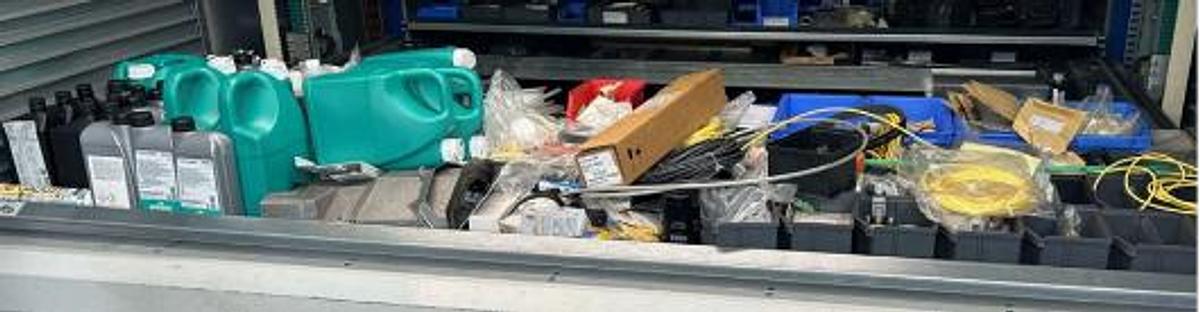

Spare parts for this machine type including specialist consumables
