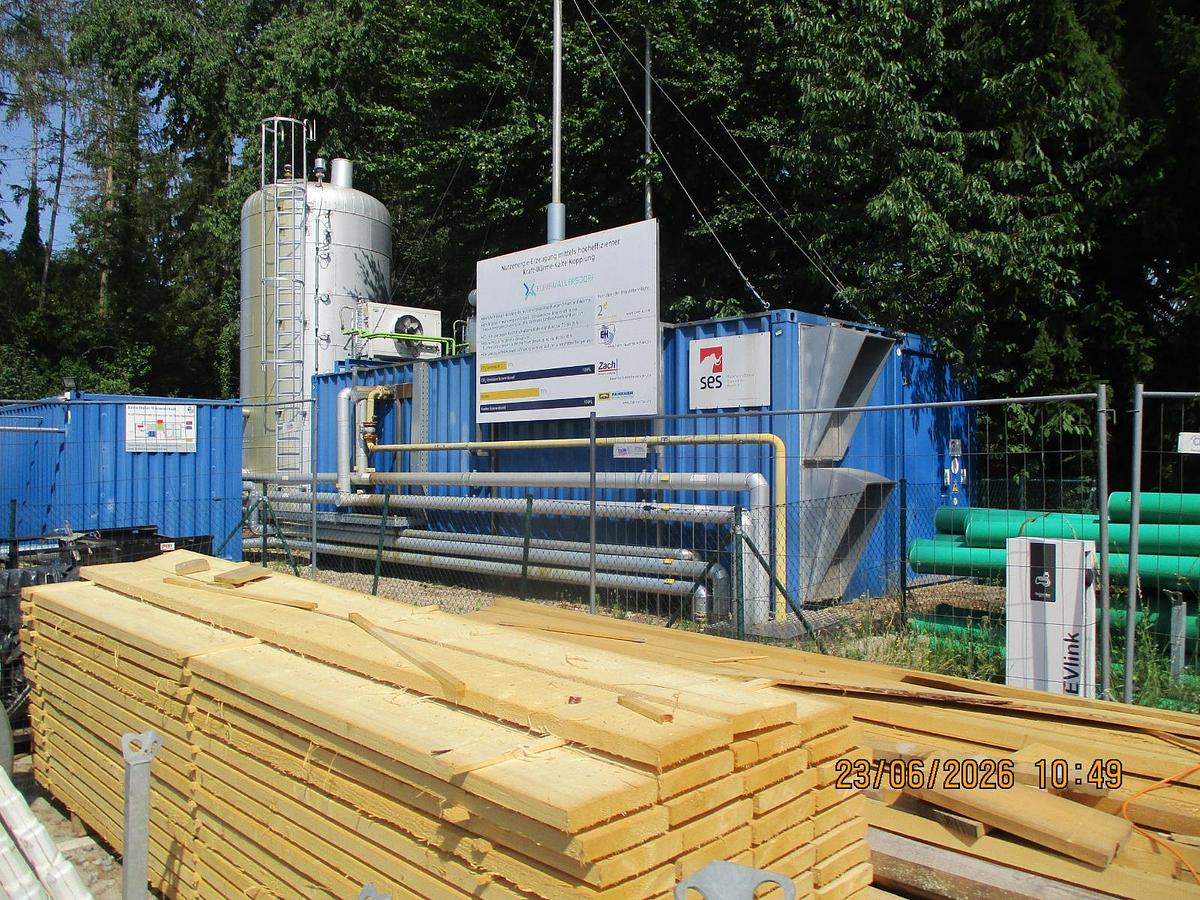

SES HPC 100 N CHP

Manufacturer: SES

Model: HPC 100 N

Type of machine: Combined heat and power (CHP) compact module

Fuel: Natural gas (Erdgas)

Minimum calorific value Hi: 10.0 kWh/m3

Methane number: 80 or greater

Heating water system temperature: 70 / 90 C

Power-to-heat ratio : 0.75

Primary energy factor fp EnEV 2007: 0.76

Frequency: 50 Hz

Rated voltage Un: 400 V

Rated speed: 1,500 min-1

Electrical rated output at cos(phi)=1: 104 kW

Usable heat output: 138 kW

Fuel input: 282 kW

Electrical efficiency: 36.9 percent

Thermal efficiency: 48.9 percent

Overall efficiency: 85.8 percent

Exhaust gas treatment: Lean-burn operation with oxidation catalyst

Emissions per TA-Luft 2002 (dry exhaust gas at 5 percent O2): Formaldehyde under 60 mg/Nm3, NOx measured as NO2 under 500 mg/Nm3, CO under 300 mg/Nm3

Engine type: MAN E 0836 LE 202

Combustion process: Gas Otto engine

Operating cycle: 4-stroke

Cylinders and arrangement: 6, in-line

Displacement: 6.9 liters

ISO standard output per ISO 3046/1: 110 kW mechanical

Specific full-load fuel consumption: 9.23 MJ per kWh

Generator type: Leroy Somer 44.2 S7 C6/4

Apparent power: 125 kVA

Voltage: 400 V

Stator connection: Y

Maximum ambient temperature: 40 C

Protection rating: IP23

Radio interference suppression grade per VDE 0875: N

Thermal class: H

Generator weight: 460 kg

Engine cooling water heat output: 68 kW

HT mixture cooler heat output: 6 kW

LT mixture cooler heat output: 5 kW

Exhaust gas heat output (cooled to 120 C): 64 kW

Total heat output via plate heat exchanger: 138 kW

Heating water inlet temperature: 70 C

Heating water outlet temperature: 90 C

Scheduled maintenance interval: 1,250 operating hours

Engine lubricating oil volume, min/max: 24 / 34 liters

Lubricating oil reservoir tank: 70 liters

Generator efficiency at cos(phi)=1, 400V: 94.1 percent

Generator rated current at cos(phi)=1, 400V: 149 A

Radiant heat of the module: 23 kW

Supply air mass flow: 6,060 kg/h

Exhaust air mass flow: 5,487 kg/h

Combustion air mass flow at 25 C and 1,013 mbar: 573 kg/h

Supply air design temperature per ISO 3046: 25 C

Exhaust gas mass flow, wet: 594 kg/h

Exhaust gas volume flow, dry at 0 percent O2 (0 C, 1,013 mbar): 474 Nm3/h

Maximum permissible exhaust back pressure after module for flue/chimney: 5 mbar

External fan pressure: 50 Pa

Airborne noise (sound pressure level), enclosed module at 1 m distance: 72 dB(A)

Exhaust noise (sound pressure level) with optional silencer at 10 m distance: 46 dB(A)

Gas inlet connection: Rp 1 1/2 inch

Exhaust outlet connection (flange): DN100/PN10

Condensate drain connection: R 1/2 inch

Heating water inlet/outlet connection (flange): DN40/PN10

LT mixture cooling circuit inlet/outlet connection: R 1 inch

Flanges conform to DIN EN 1092-1

Module length (without fan): 3,000 mm

Module width (without fan): 910 mm

Module height (without fan and feet): 1,725 mm

Operating weight, approximately: 2,750 kg
