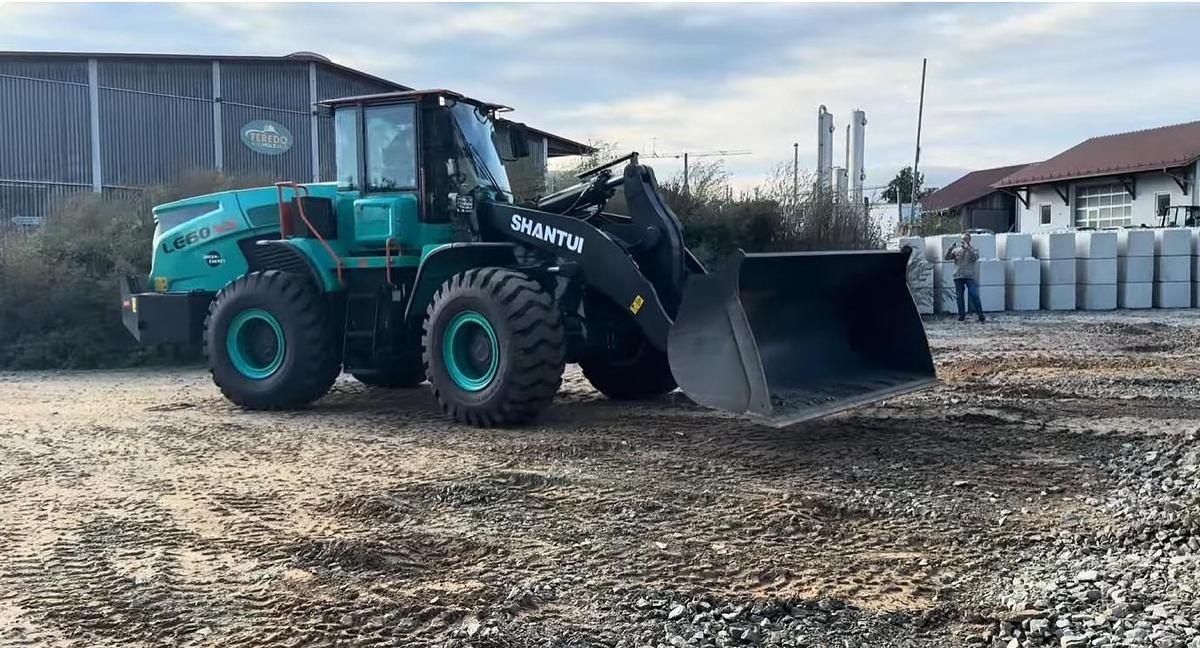

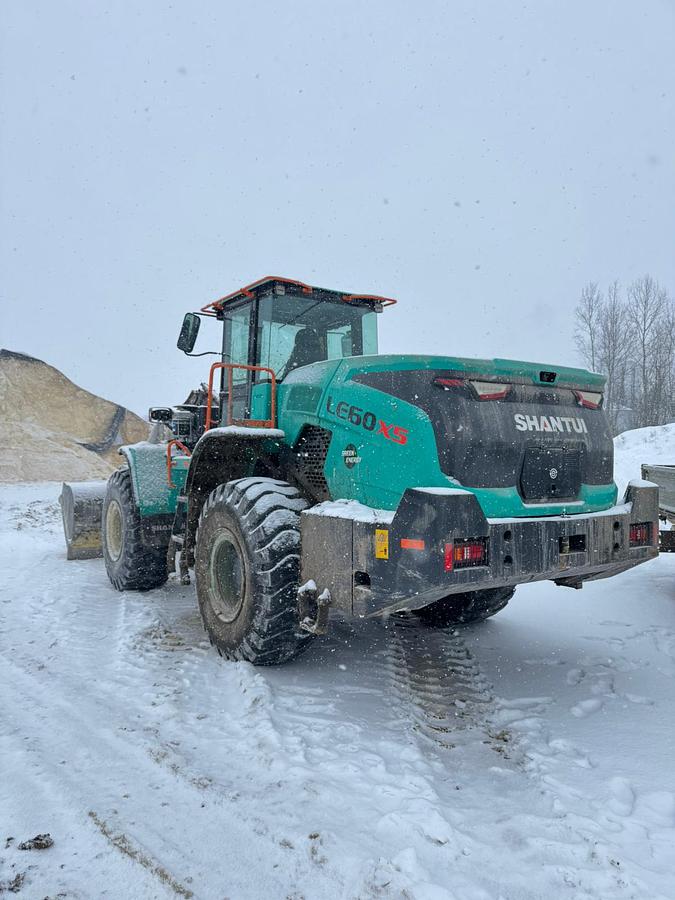

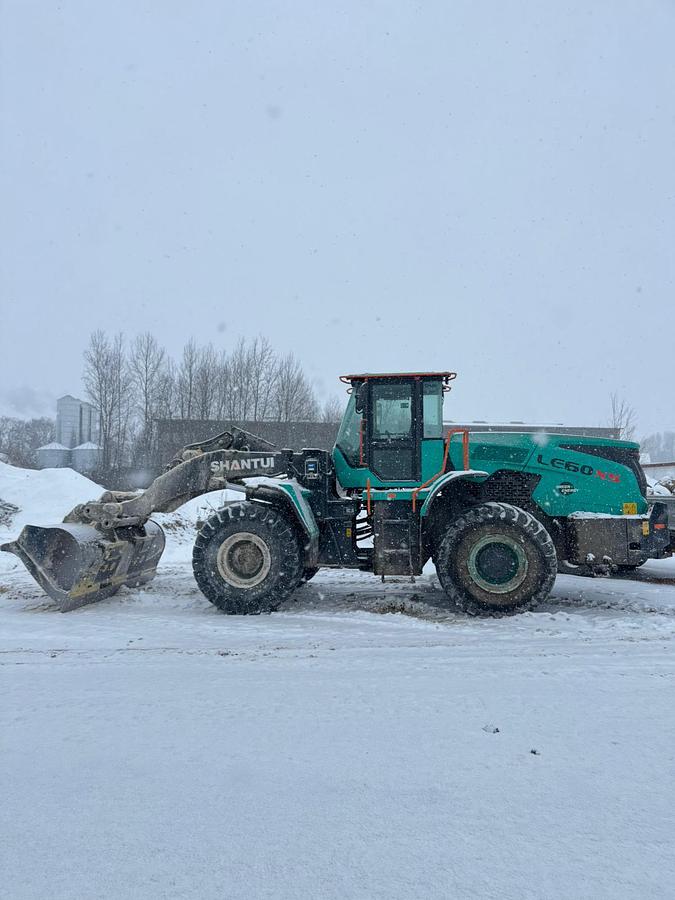

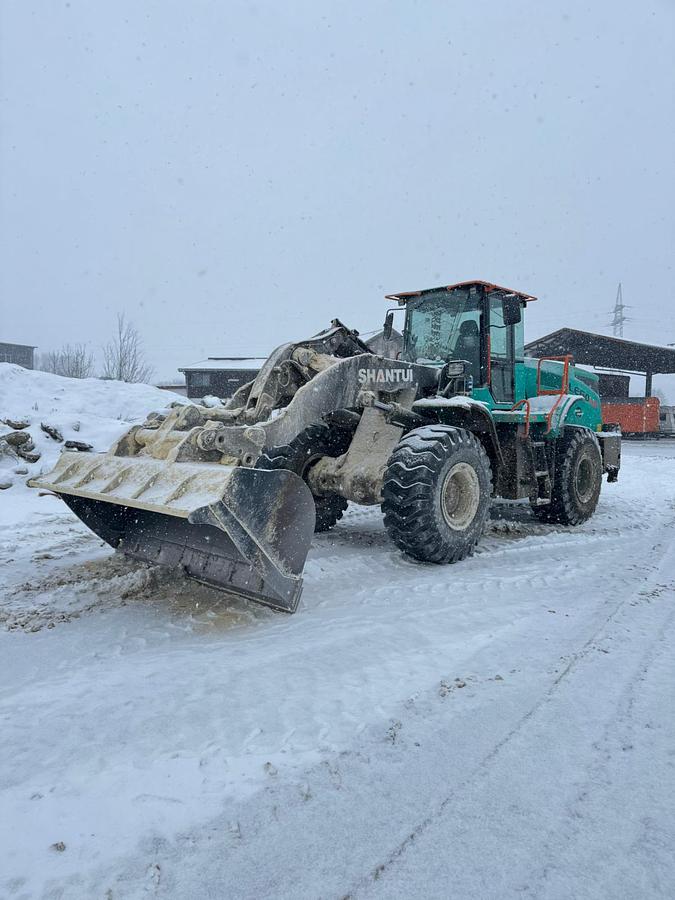

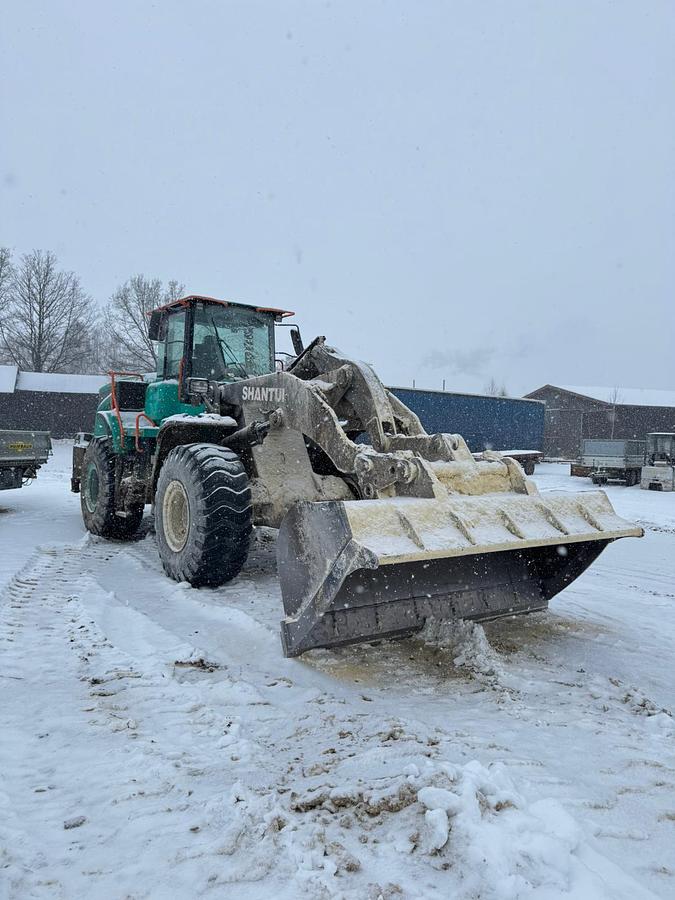

E-Radlader SHANTUI LE60, vollelektrisch, 20ton

The SHANTUI LE60 is a used, fully electric wheel loader suitable for heavy construction tasks, with a robust operational weight of 20 tons. It is powered by a 357 kWh lithium-ion battery, featuring liquid cooling and rated at 537.6 V / 664 Ah. This allows for up to 6–10 hours of usage, with a charge time from 20% to 95% taking approximately 1.25 hours when using a 240 kW charger. Equipped with a 100 kW driving motor capable of a maximum of 200 kW and an 80 kW working motor that peaks at 160 kW, this loader offers impressive torque for demanding tasks. The transmission is an electronically controlled gear system, supported by self-locking differential axles. With a maximum speed of 38 km/h, it efficiently handles operational demands, boasting a lift capacity of 6,000 kg. The hydraulics system delivers a flow rate of 112 l/min, ensuring fast and reliable performance with full cycle times totaling 9.5 seconds. For maneuverability, it features dimensions of 8,930 mm in length, 3,030 mm in width, and 3,440 mm in height, with a wheelbase of 3,400 mm. The minimized turning radius enhances maneuverability in tight spaces. Safety and efficiency are further ensured with its fully hydraulic service brake and drum-type parking brake system. This makes the SHANTUI LE60 a practical and power-efficient choice for high-volume load and carry applications.

Technische Daten

Batterie & Antrieb

Batteriekapazität 357 kWh Akkutyp Lithium-Ionen, IP68, flüssigkeitsgekühlt Nennspannung / -kapazität 537,6 V / 664 Ah Ladezeit 20–95 % ca. 1,25 Std. (bei 240 kW) Empf. Ladesäulenleistung 120 / 240 / 300 kW Akkulaufzeit 6–10 Std.

E-Motoren

Fahrmotor 100 kW (max. 200 kW), 1 200–2 400 Nm, IP67 Arbeitsmotor 80 kW (max. 160 kW), 400–800 Nm, IP67 Getriebe Elektronisch gesteuertes Festwellengetriebe, F2/R2 Achsen Selbstsperrdifferential, Übersetzung 20,86; Reifen 23.5-25-20PR Geschwindigkeit 13,5 / 38 km/h (Gang 1/2)

Leistung & Hydraulik

Nenntragfähigkeit 6 000 kg Max. Losbrechkraft 185 kN Max. Zugkraft 160 kN Hydraulik – Fördermenge 112 l/min (Doppelpumpen-Zusammenführung) Zykluszeiten ≤ 5,5 s / ≤ 1,0 s / ≤ 3,0 s (Gesamt ≤ 9,5 s) Bremssystem Vollhydraulische Betriebsbremse; Feststellbremse Trommel

Abmessungen

Länge × Breite × Höhe 8 930 × 3 030 × 3 440 mm Radstand / Spurweite 3 400 mm / 2 250 mm Min. Bodenfreiheit 440 mm Wenderadius (Reifenmitte) 6 535 mm Durchgangsradius 7 640 mm Lenkwinkel / Böschungswinkel 35° / 27°
