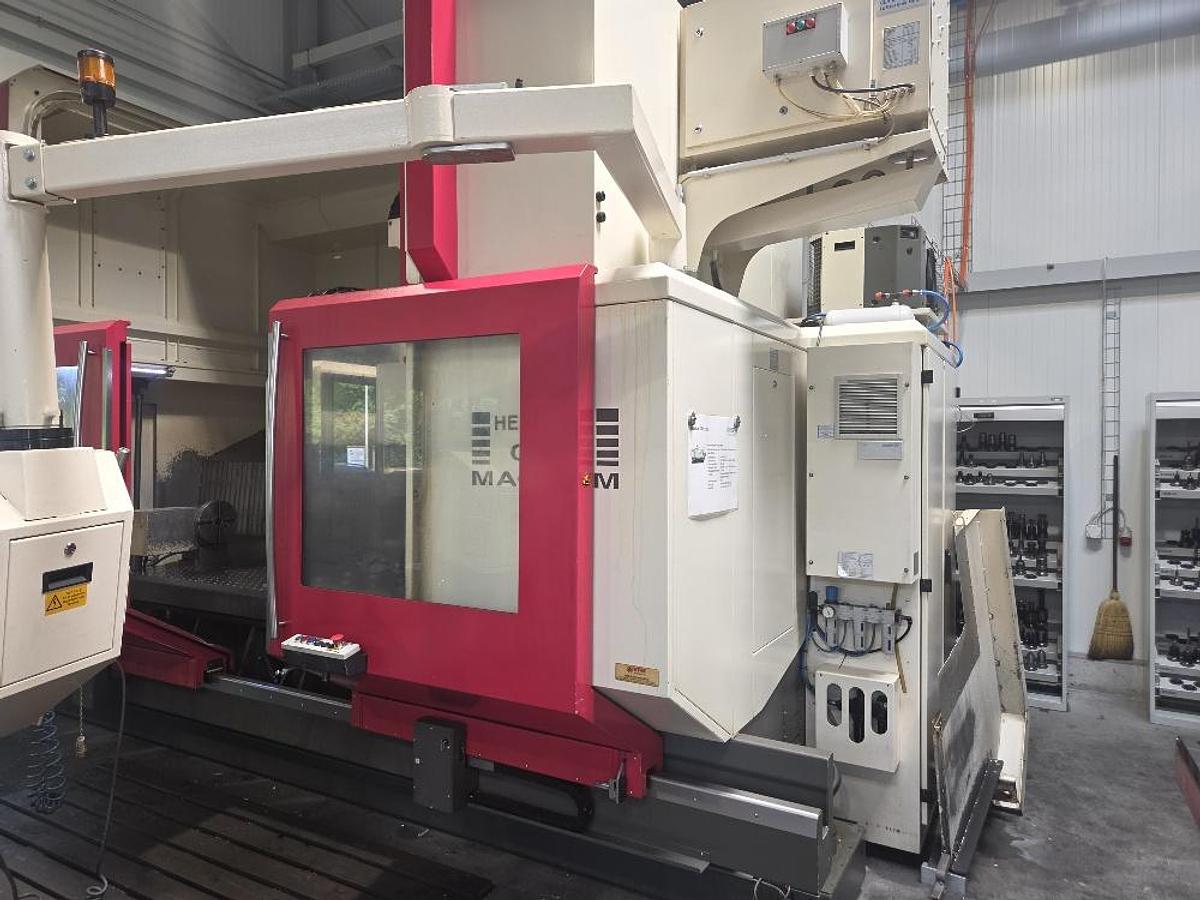

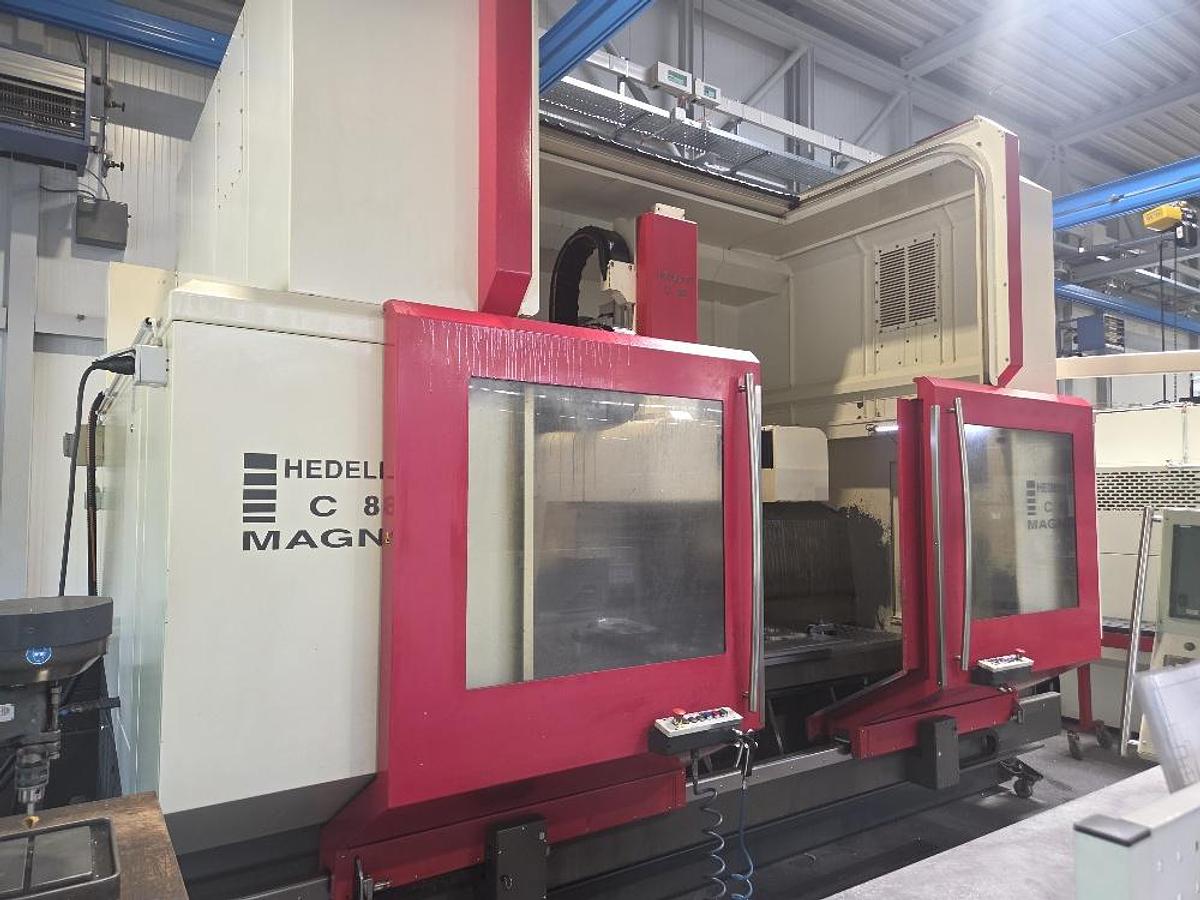

Hedelius C80 Machining Center

Manufacturer: Hedelius

Model: C80/40/840/2300/8 (C80M-2300 / C80PM-2300)

Type of machine: moving-column CNC machining center

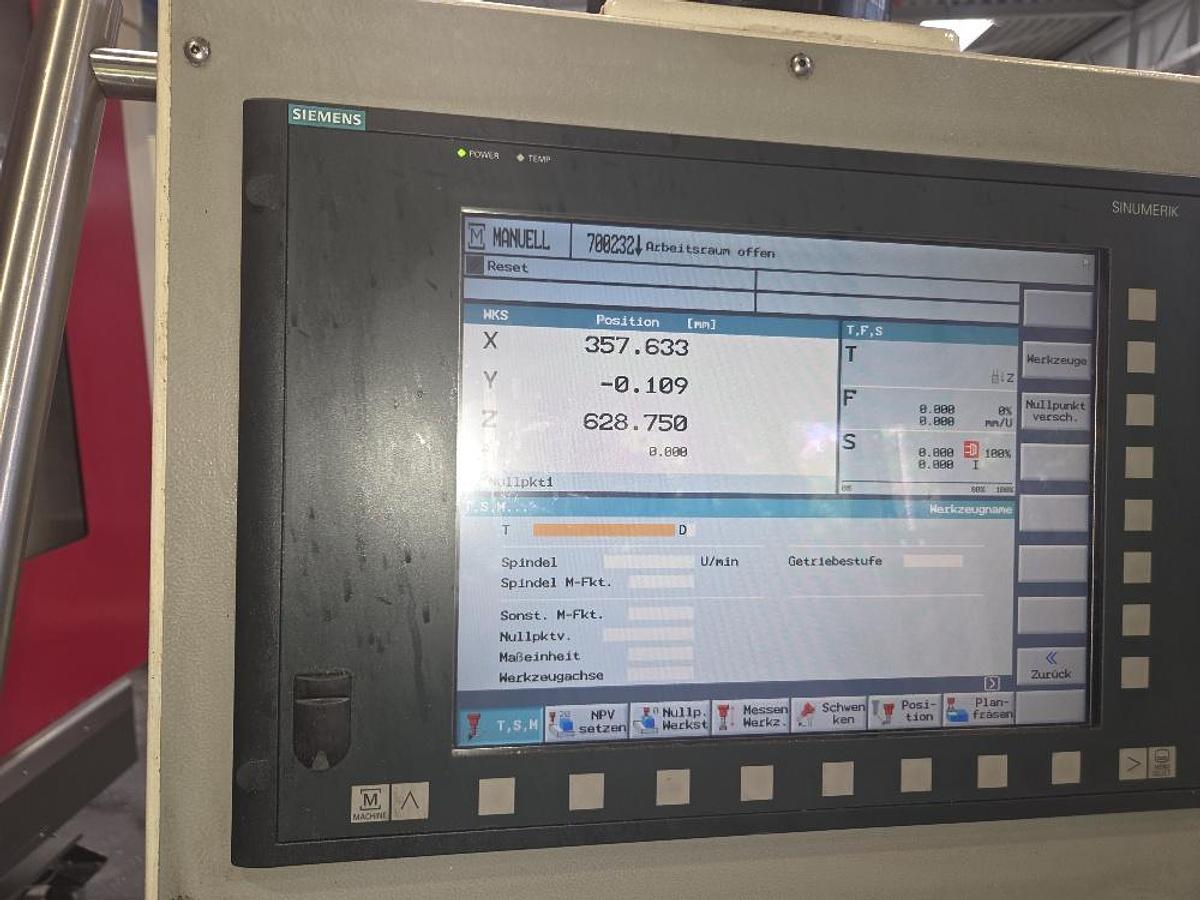

Control: Siemens Sinumerik 840D / PCU 50, 15.1 inch color flat screen, 19 inch machine control panel, Intel Pentium II processor, Windows XP operating system

Axis travel: X-axis 2300 mm, Y-axis 800 mm, Z-axis 600 mm

Pendulum operation: 2 x 925 x 800 mm

Main spindle: water-cooled Celox motor spindle, HSK A63 tool holder, spindle speed 12000 min-1, output 29.0 kW / 183 Nm

Tool magazine: 56-position Magnum tool magazine, maximum tool length 330 mm, maximum tool diameter 80 mm (125 mm at free adjacent stations), maximum tool weight 10 kg, tool change time approximately 4.0 seconds, chip-to-chip time approximately 8.0 seconds

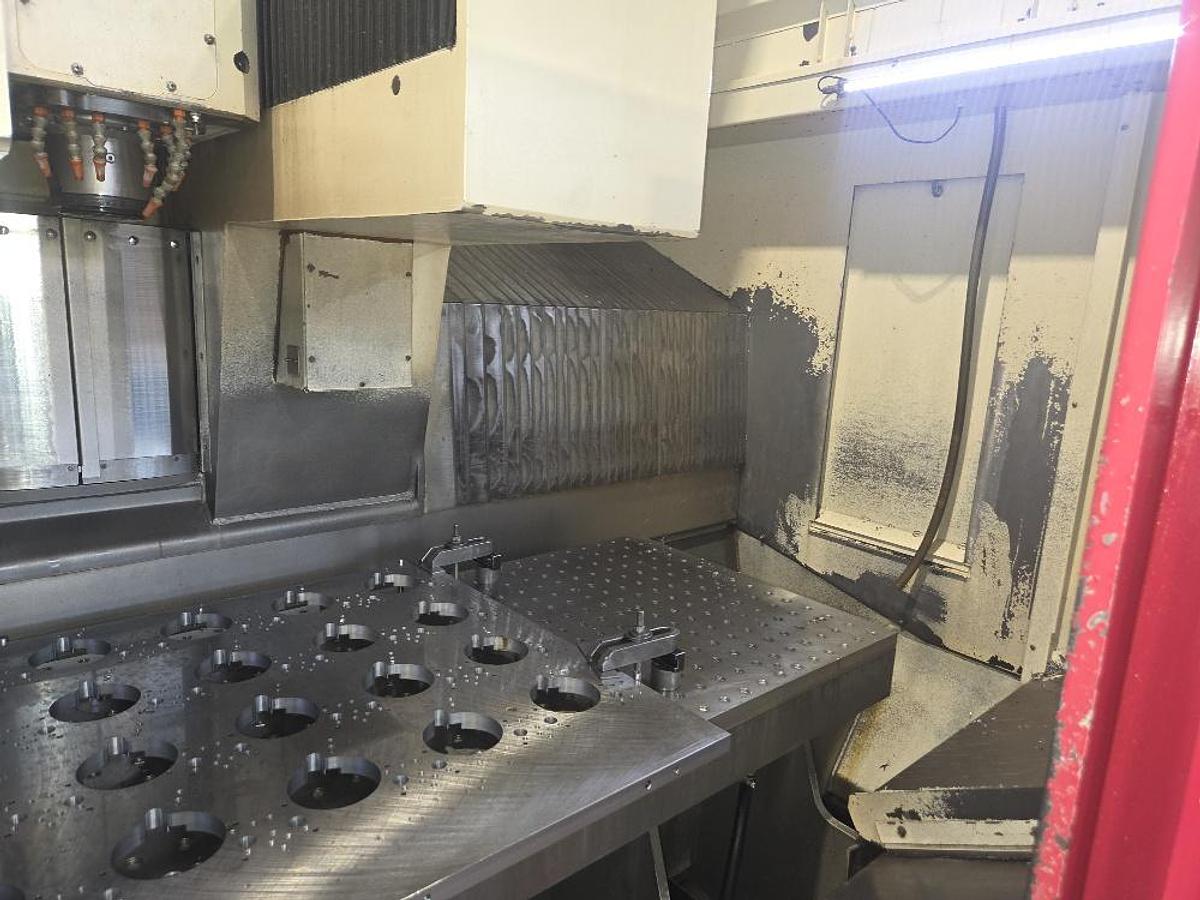

Machine table: fixed cast iron machine table with 5 T-slots per ISO 299-18, center T-slot as 18H8 guide slot

Measuring system: Diadur phase-grating measuring system (glass scales) on X, Y and Z axes,measuring accuracy less than 3 micron per 1000 mm

Feed system: high-dynamic digital AC servo motors and ground ball screw spindles on all 3 axes Chip and coolant system: chip-tight scraper belt chip conveyor with coolant pump, discharge height approximately 1150 mm, pump output 1 bar / 100 l/min

Central lubrication: fully automatic central lubrication system for all axes

Finish: 2-component structural paint, machine RAL 7022 umbra grey, cladding RAL 1013 pearl white, doors and spindle RAL 3027 red

Handheld control unit: external BHG/840D handheld unit with electronic handwheel, 20 function and axis travel keys, magnetic holder and spiral cable

Tool holder: hollow shank taper HSK A63 rated to 12000 min-1

Coolant filtration: band filter system, clean tank content 780 liters, filtration degree 25 micron, filter output 130 l/min

Enclosure: full top-closed enclosure with electrically operated roller door for crane loading, noise emission reduced by approximately 4 dBA

Exhaust filter: extraction capacity 1200 m3/h, metal filter class G, main filter AeroPlus class F9,separation degree greater than 99 percent

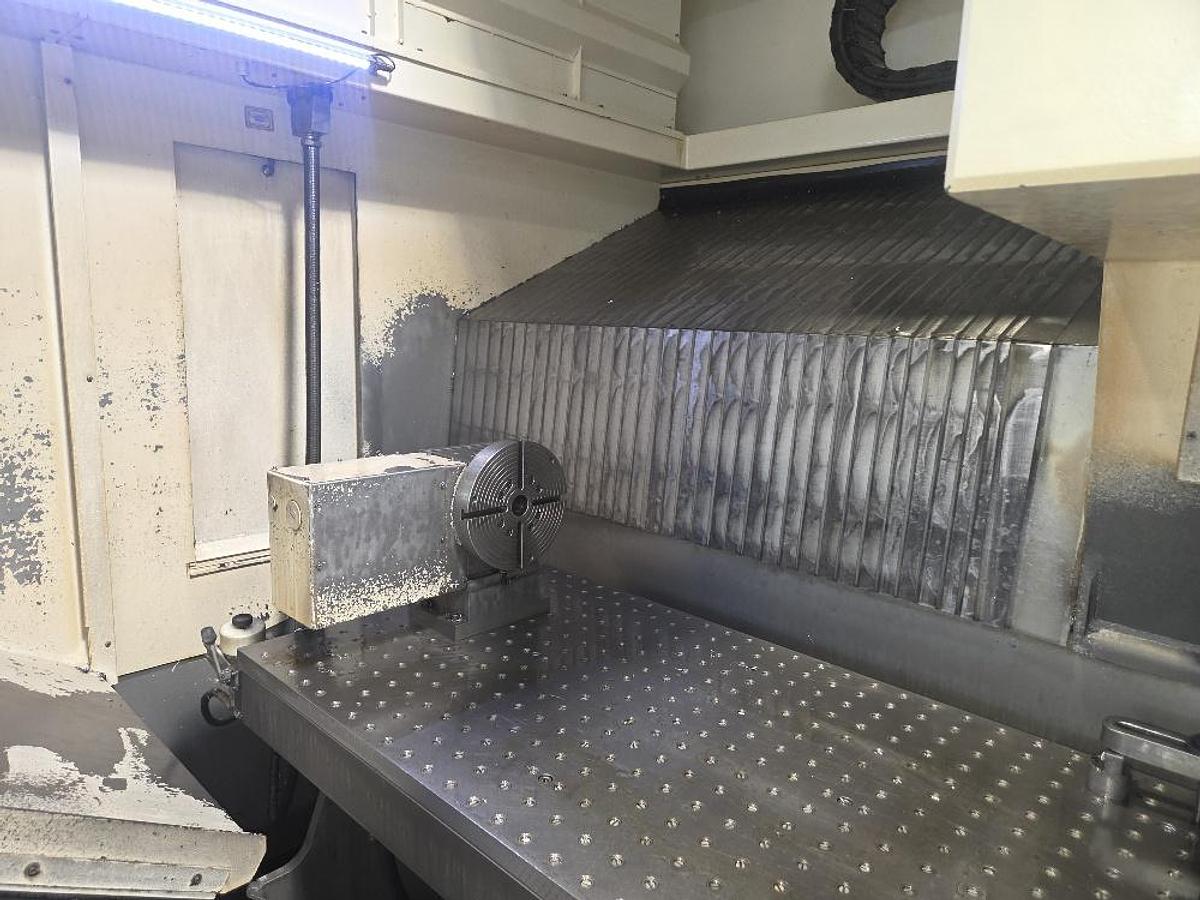

NC rotary table: vertical NC rotary table type RT 250 with hydraulic spindle clamping and faceplate, indexing accuracy 15 arc-seconds, repeat accuracy 4 arc-seconds, center height 160 mm, faceplate diameter 250 mm, maximum speed 22 min-1, holding torque 1000 Nm, weight approximately 60 kg

Measuring probe: Renishaw RMP 60 3D radio touch probe system, touch speed 3 m/min, stylus length 50 mm, ruby ball diameter 6 mm, repeat accuracy less than 2 micron

Tool monitoring: laser light barrier for tool measurement and tool breakage control, maximum tool length 230 mm

Electrical connection: operating voltage 3 x 400V, 50Hz, recommended fuse rating 63A,connection rating approximately 25 kVA

Compressed air requirement: minimum half-inch connection, operating pressure 6 bar, air quality per ISO 8573-1

Total weight: approximately 14,100 kg per transport drawing, approximately 15,700 kg per foundation drawing
