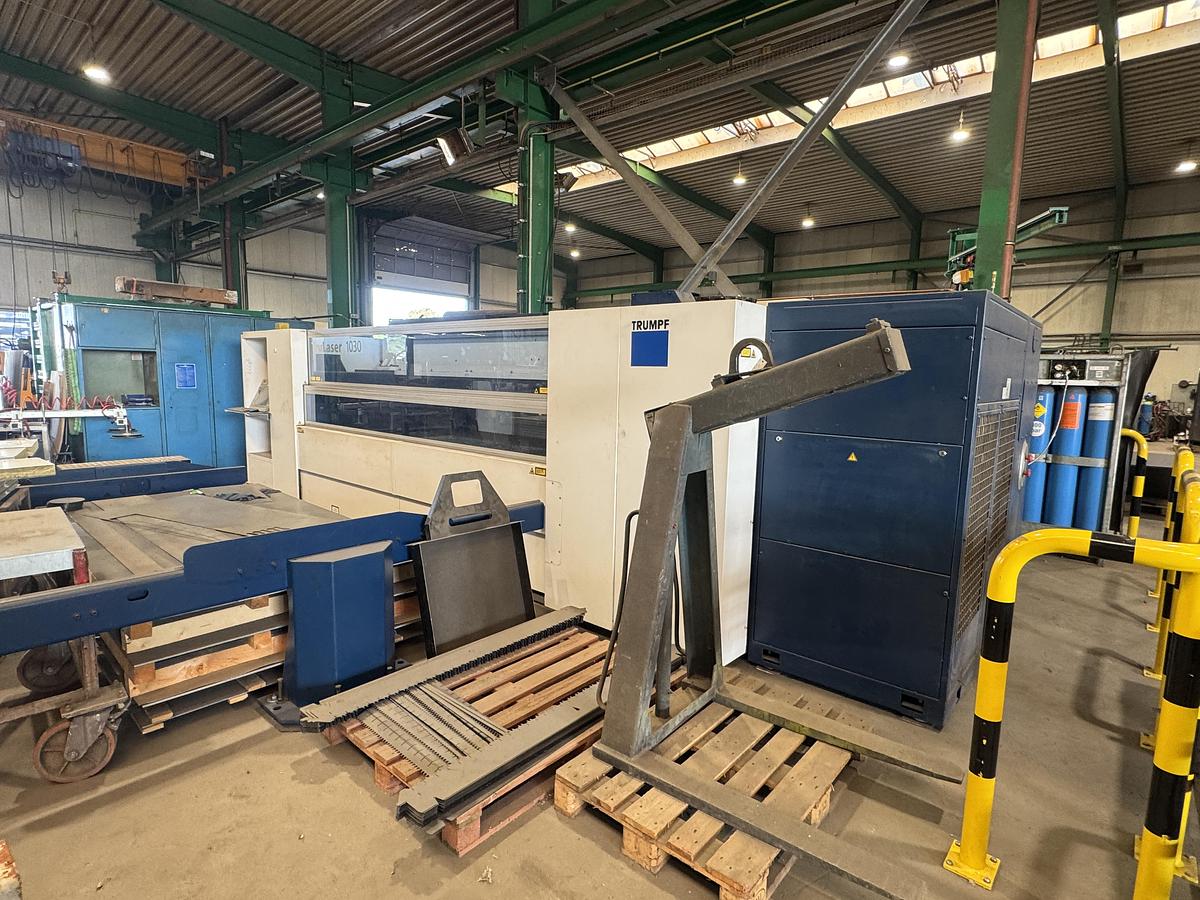

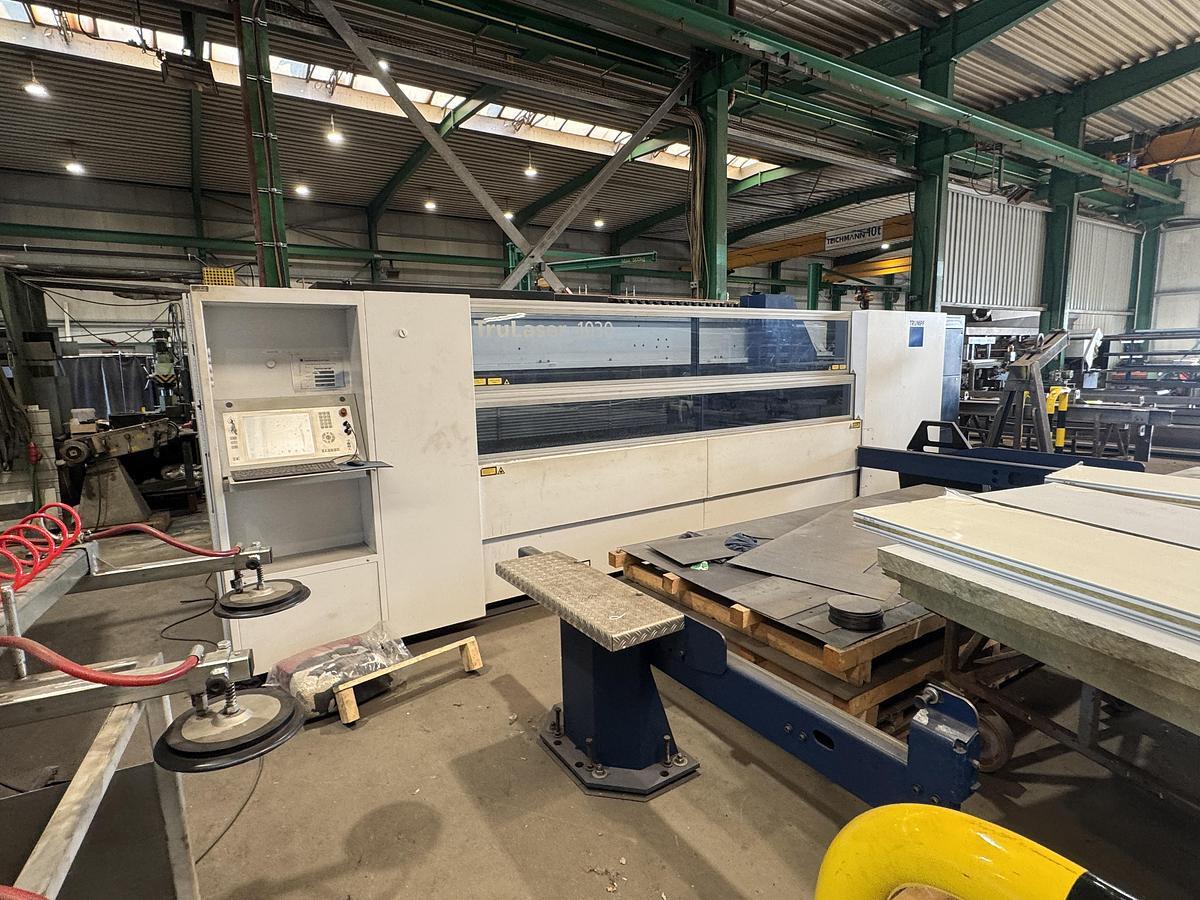

2014 TRUMPF TruLaser 1030 Laser Cutting Machine

Manufacturer: TRUMPF

Model:  TruLaser 1030

Type of machine: CNC laser cutting machine

Year of manufacture: December 2014

Laser power: 2500 W

Power supply: 400 V / 50 Hz

Connection rating: 72.0 kVA

Control voltage: 24 V DC

Required fuse protection: 3 x 125 A

Compressed air connection: 7 to 10 bar

Nitrogen connection N2: 30 bar

Oxygen connection O2: 20 bar

Machine frame: closed machine frame with integrated laser aggregate

Movement unit: high-precision motion unit for the cutting head

Drives: maintenance-free three-phase servo motors

Sheet loading: sheet metal loading accessible from both sides

Beam guidance: fully enclosed beam guidance system

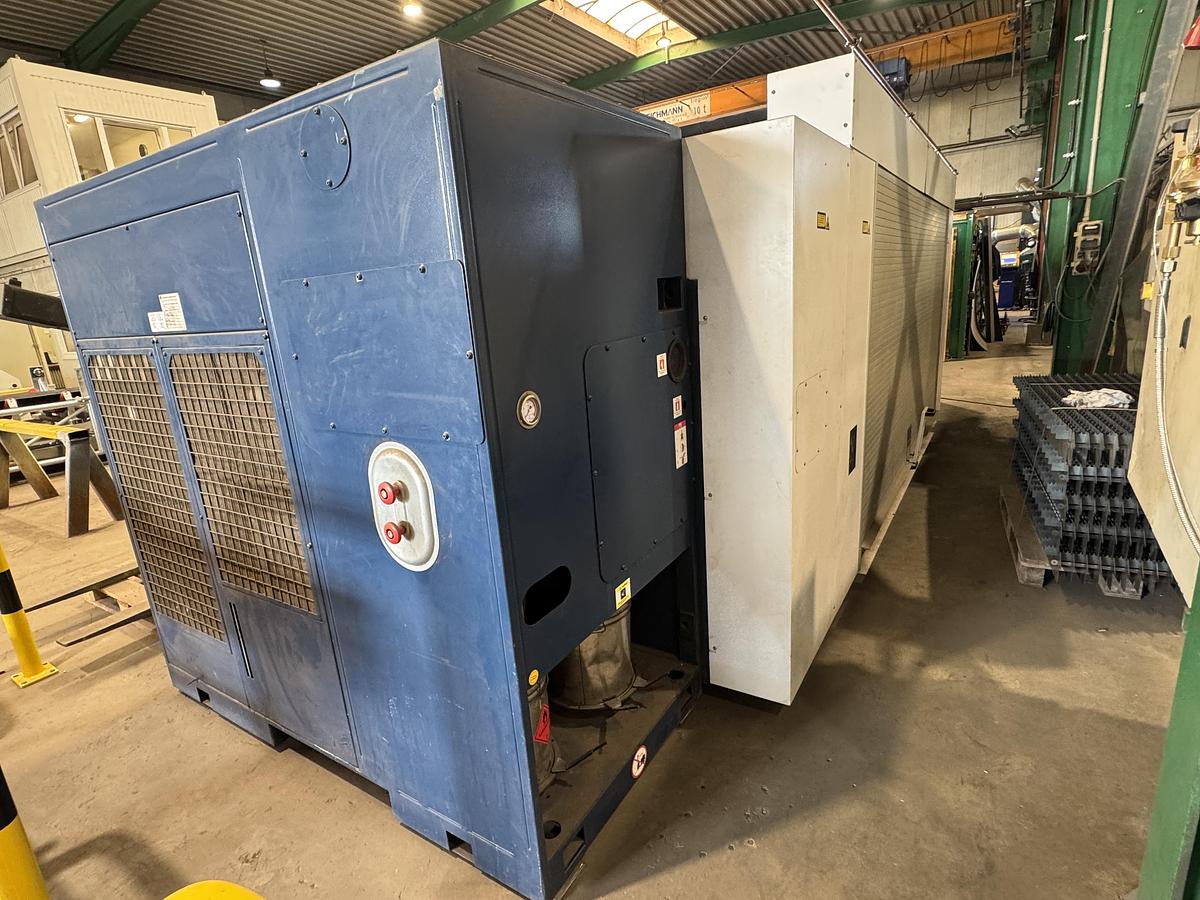

Cooling: fully integrated cooling unit

Extraction: traveling extraction unit moving with the cutting head

Parts collection: catch container for falling parts under the working area

Positioning aid: position laser diode for zero point and separation cuts

Cutting gas system: NitroLine high-pressure nitrogen cutting for oxide-free and burr-free cutting edges in stainless steel and aluminum alloys

Compressed air preparation: integrated compressed air preparation for beam guidance ventilation

Handling: transport and mounting device included

Cutting head: 7.5 inch lens cutting head

Focus control: FocusLine, programmable focus position setting according to material type and thickness

Height control: ControlLine, maintains constant nozzle-to-sheet distance during cutting

Control system: intuitive touch operation on a 15 inch screen

Control features: integrated technology data tables for cutting gas type and pressure

Contour function: ContourLine, special approach techniques and pulsed cutting for thick sheet metal

Remote service: teleservice via internet connection

Data transfer: USB interface and RJ-45 network connection

Safety: CE marking, machine cladding with Makrolon panels, motorized front door and rear opening

Programming: workshop programming directly from dxf files, TruTops CAD offline version available
