Schuco AS100 Throughput Center

Manufacturer: Schuco

Model: AS100 Throughput Center

Year of Manufacture: 2020 and 2022

Type of Machine :CNC 5-Axis Machining Center

Layout Version: MA6

Machine Dimensions

• Total Length: 22,300 mm
• Total Width: 7,123 mm
• Total Height: 3,058 mm
• Machining Zone Width: 5,357 mm
• Loading/Unloading Magazine Width: 7,500 mm
• Magazine Depth: 1,766 mm

Connections Required

• Power supply (electrical connection)
• Compressed air
• Network connection
• All connections to be provided from above

Key Features

• Two fully equipped 5-axis machining towers
• Five self-driven clamping vices

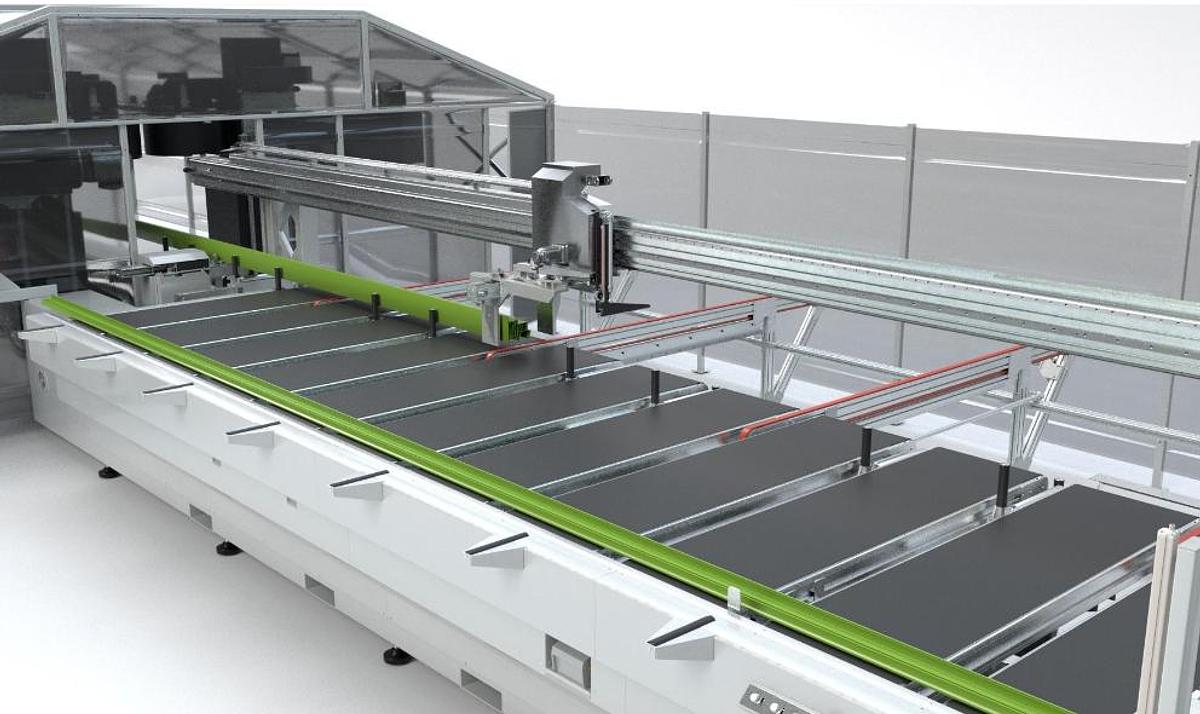

• Combined loading and unloading magazine
• Profile buffer capacity: up to 12 profiles lying flat, up to 16 profiles standing
• Unmanned operation capability for up to 16 profiles
• Six-sided profile machining
• Variable gripper system compatible with all profile geometries

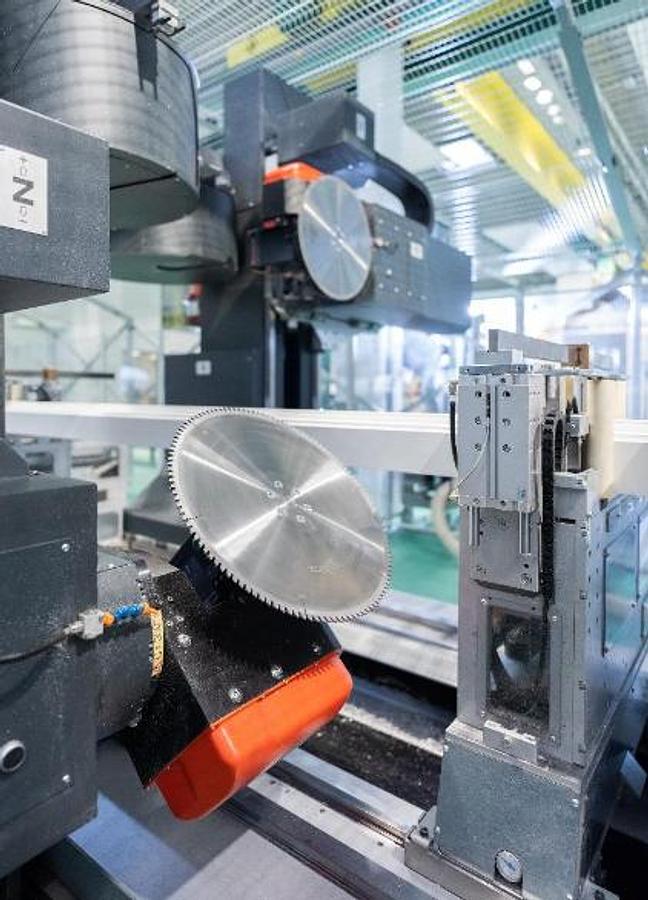

• Integrated saw station and notching station
• Surface-protective profile transport - no foiling required
• Automatic profile contour support included
• Multiple production modes available
• Minimal floor space requirement relative to capacity
