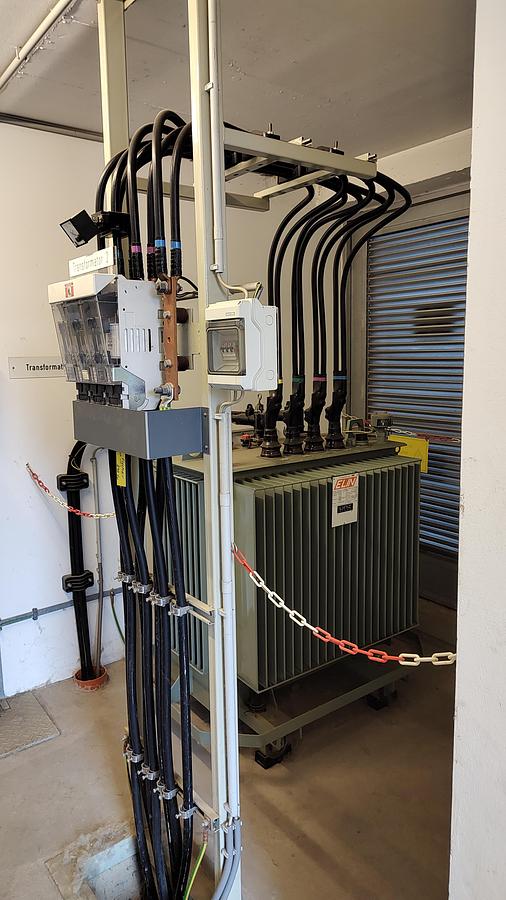

2001 Elin 630 kVA Oil-Filled Power Transformer

Manufacturer: Elin

Type: TDQ-632A01S5K-99

Category: 3-Phase Oil-Filled Power Transformer

Year of Manufacture: 2001

Technical Specifications

• Rated Power: 630 kVA
• Cooling: ONAN (Oil Natural Air Natural)
• Type: T (Oil-immersed)
• Frequency: 50 Hz
• Voltage Ratio: 12 / 1.1 kV
• Vector Group: Dyn5
• Rated Voltage V1: 10,920 / 10,500 / 10,080 V (taps)
• Rated Voltage V2: 420 V
• Rated Current (HV): 34.65 A
• Rated Current (LV): 866 A
• Short Circuit Voltage: 3.77%
• Short Circuit Duration: 2 seconds
• Insulation Level: BS75 WS28/WS3
• Total Weight: 2,115 kg
• Oil Weight: 0.285 t
• Insulating Fluid: Technol US 4000
• PCB Content: less than 1 PPM
• Max. Oil Temperature: 84 degrees C
• Sound Pressure Level: 29 dB(A)
