2026 NeoDen YY1 Pick and Place Machine

Manufacturer:  NeoDen

Model:  YY1

Year of Manufacture: 2026

Type of Machine : Pick and Place Machine

Technical Specifications

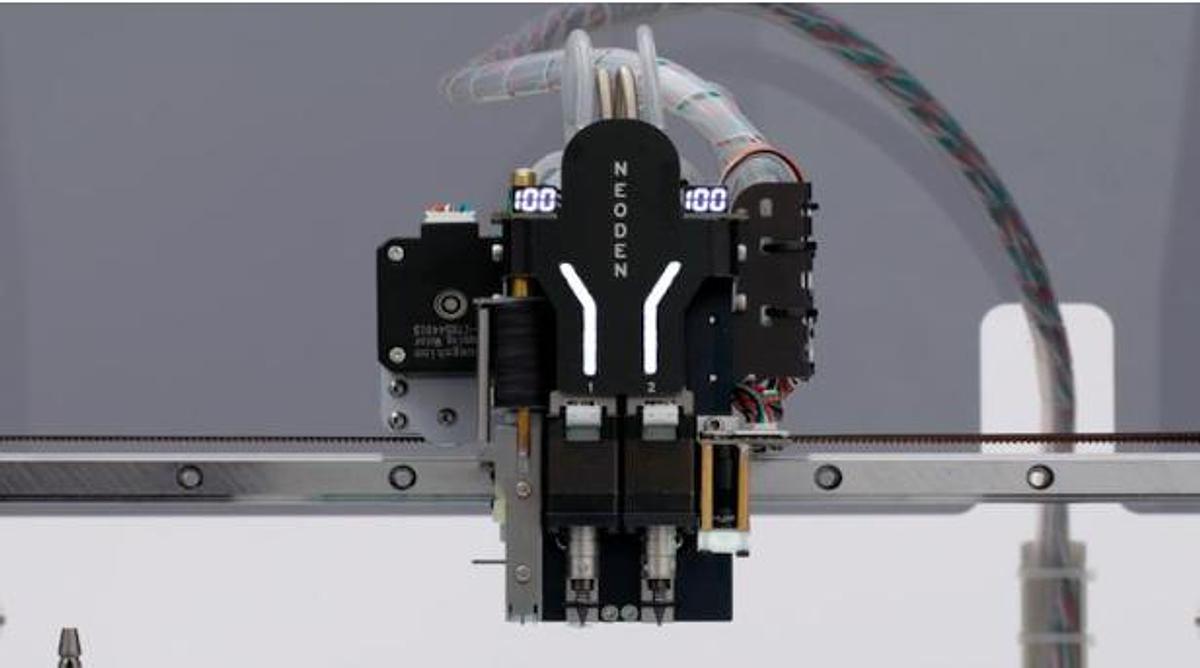

- Machine style: single gantry with 2 heads

- Alignment: vision and vacuum

- Placement rate (vision on): 3,000 CPH

- Placement rate (vision off): 4,000 CPH

- Feeder capacity - tape feeder: 52 positions (all 8mm)

- Feeder capacity - stick feeder: 4

- Feeder capacity - flexible feeder: 28

- Feeder capacity - bulk feeder: 19

- Nozzle change capacity: 3 nozzles

- Component range - smallest: 0201

- Component range - largest: 18x18 mm

- Maximum component height: 12 mm

- Rotation: +/- 180 degrees

- Placement accuracy: +/- 0.02 mm

- X-Y repeatability: +/- 0.02 mm

- Z-axis maximum movement range: 28 mm

- PCB size maximum (dual sides tape feeder): 249x350 mm

- PCB size maximum (single side tape feeder): 315x350 mm

- Electricity supply: AC 100V to 240V

- Software system: independent development

- Control system: one-board integration

- Drive system: stepper motor

- Positioning system: fiducial mark

- PCB handling: manual loading and unloading

- Power: 50 W

- Machine dimensions: 643x554x601 mm (L x W x H)

- Net weight: 35.5 kg

- Gross weight: 47 kg (wooden box)

Key Features and Highlights

- Automatic nozzle changer for flexible nozzle changes during production

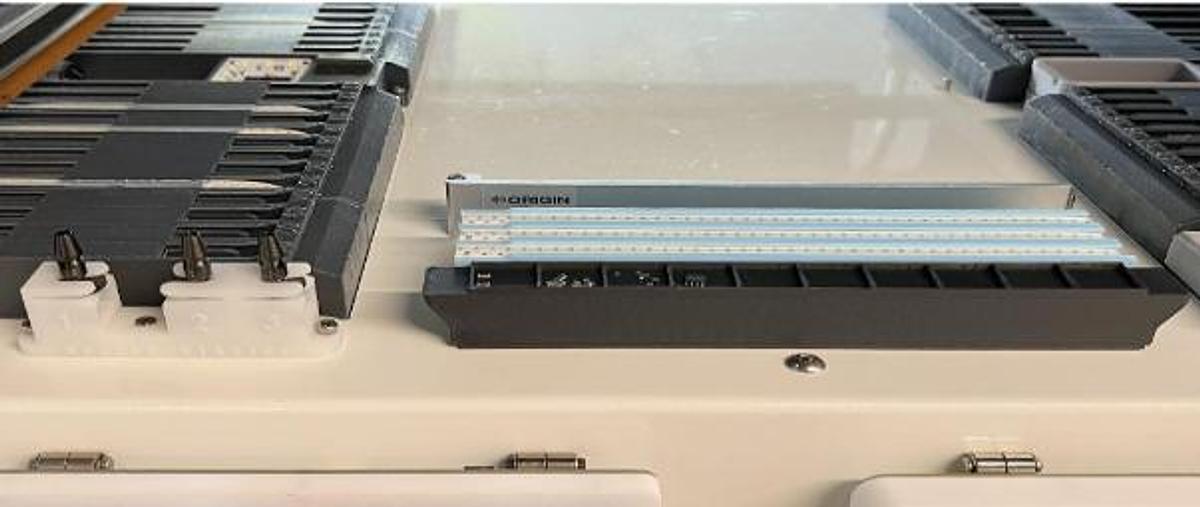

- Supports bulk component feeder, strip feeder, and IC tray feeder

- Independent high-definition and high-speed dual vision recognition systems with dual cameras

for real-time working status display

- Newly designed software system and UI for visual programming and placement, fast

on-machine programming with friendly interface and easy operation

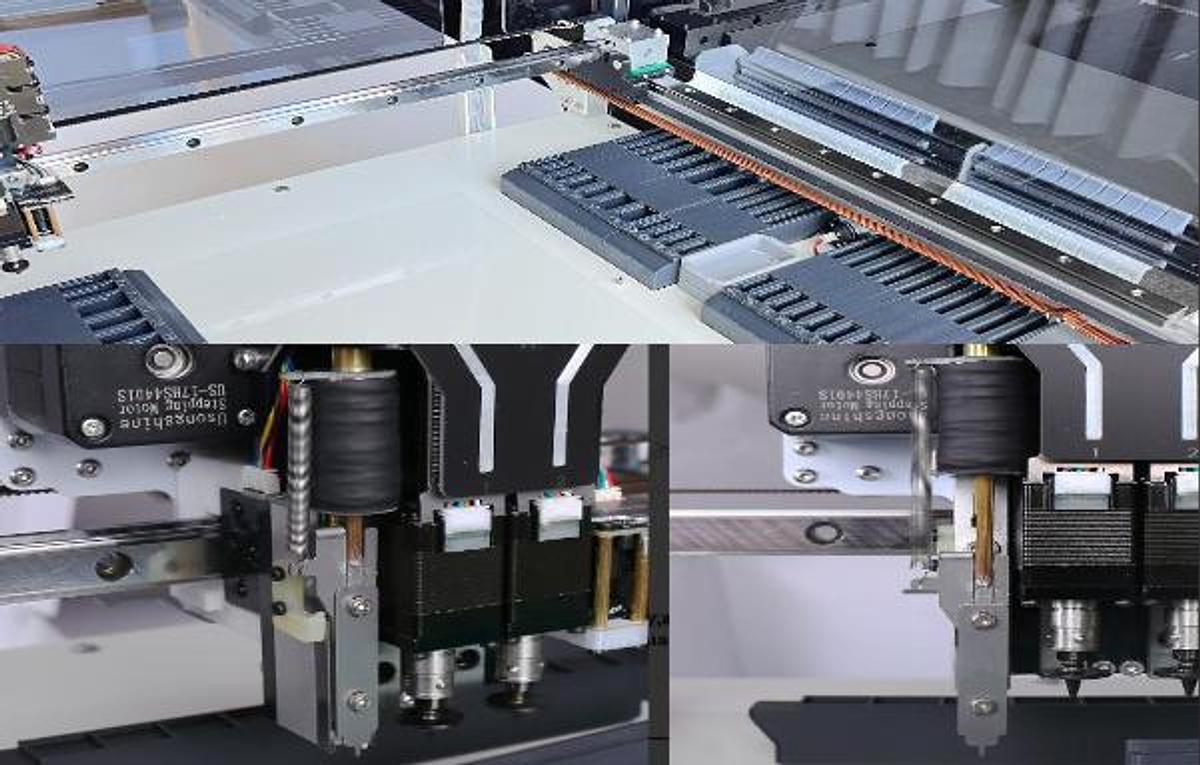

- Linear rail design for X and Y axis ensuring accuracy, stability, and reduced noise

- Patent-protected needle module specially designed based on linear rail for high reliability and

durability

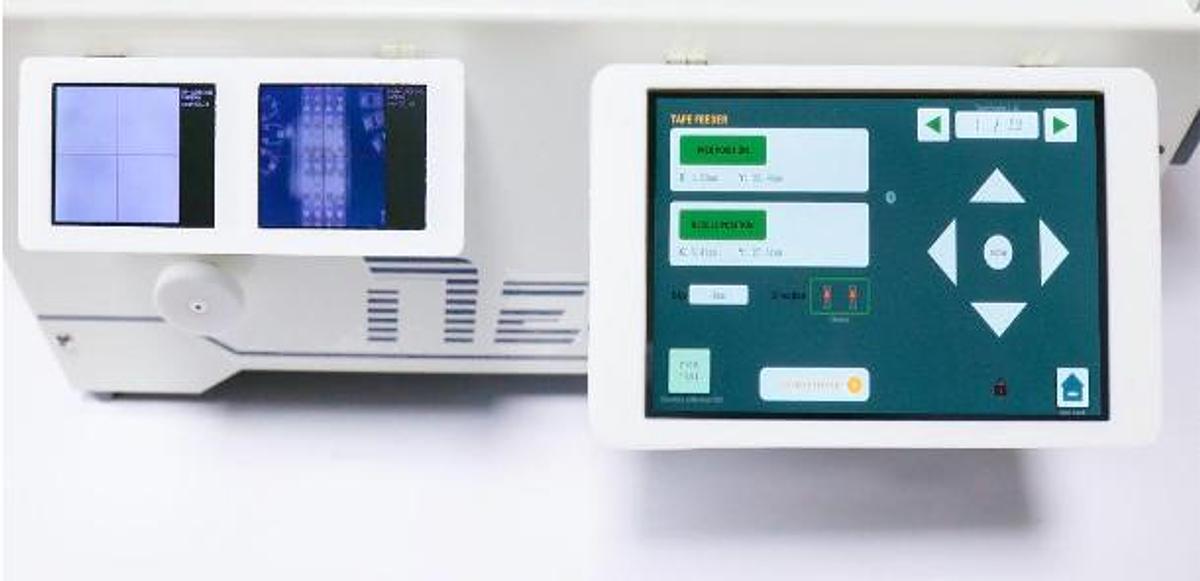

- High-definition capacitive touch screen adjustable up and down for different viewing angles

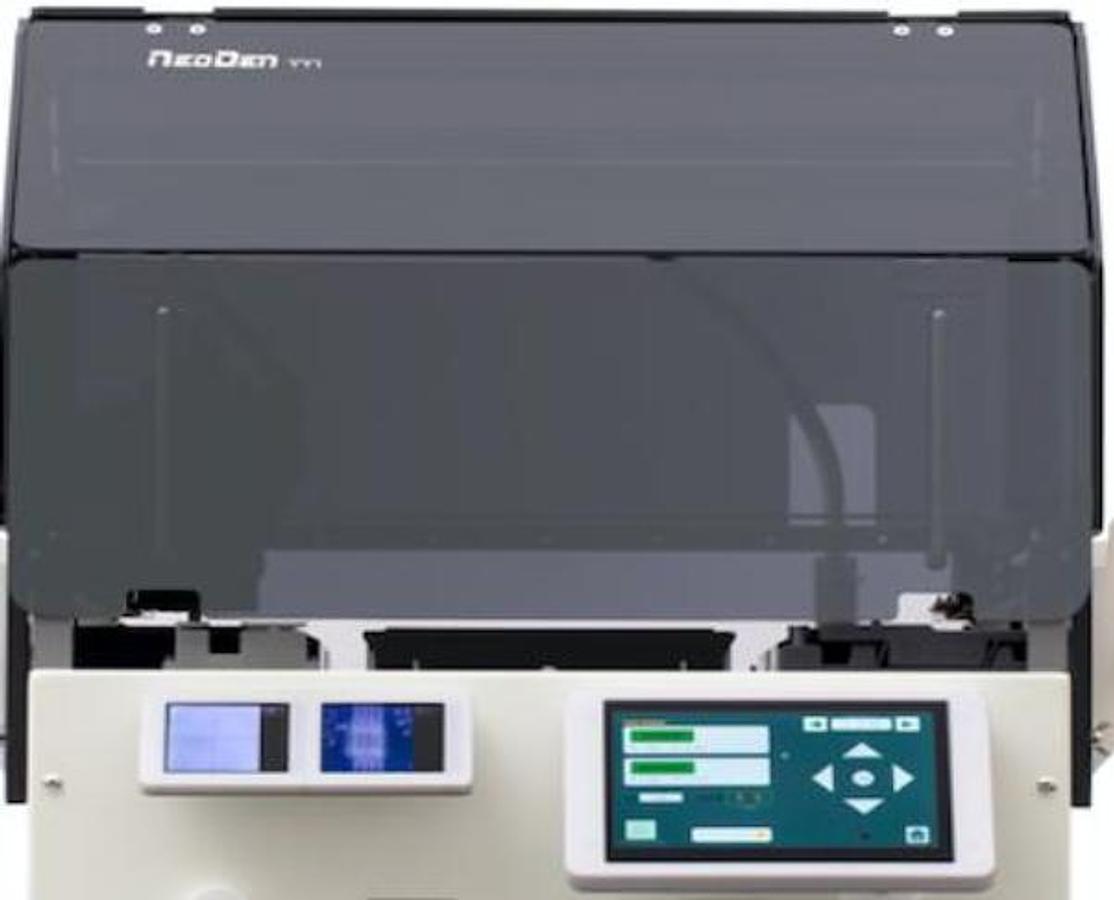

- Fully transparent acrylic covers with magnetic mode for easy disassembly

- Vacuum detection function with flexible standard vacuum detection values on placement head,

all information displayed visually

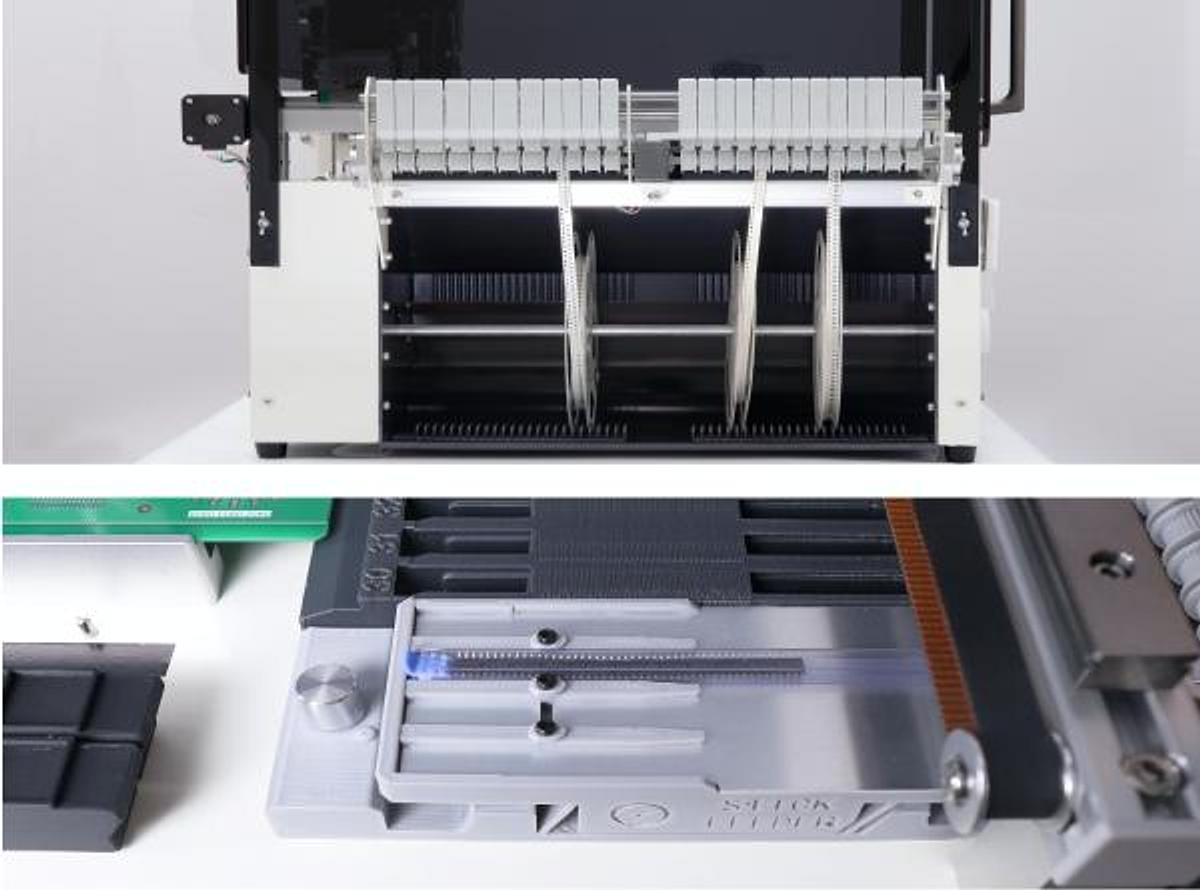

- Small footprint with powerful magazine design and newly designed tape feeders supporting

large tape reels

- Newly designed compact stick feeder perfectly compatible with the tape feeder system
