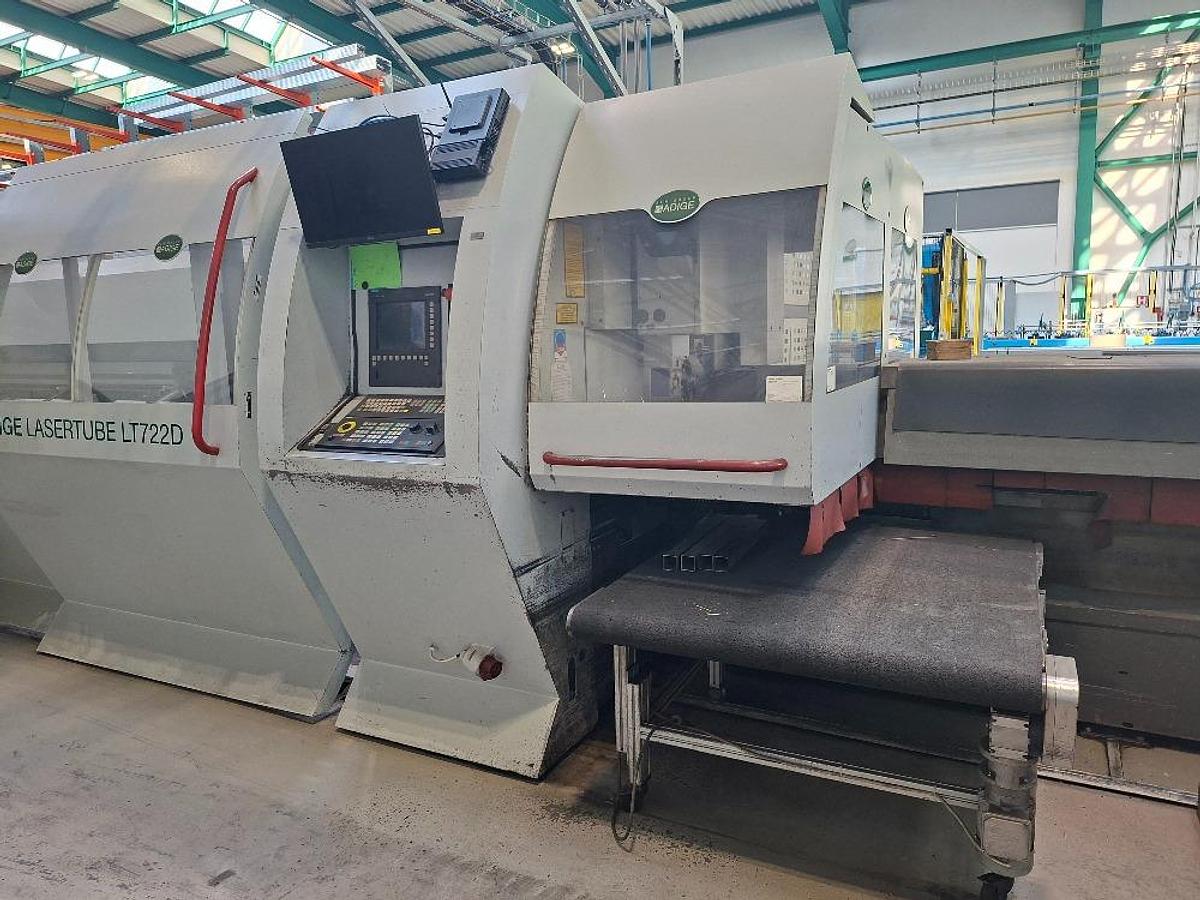

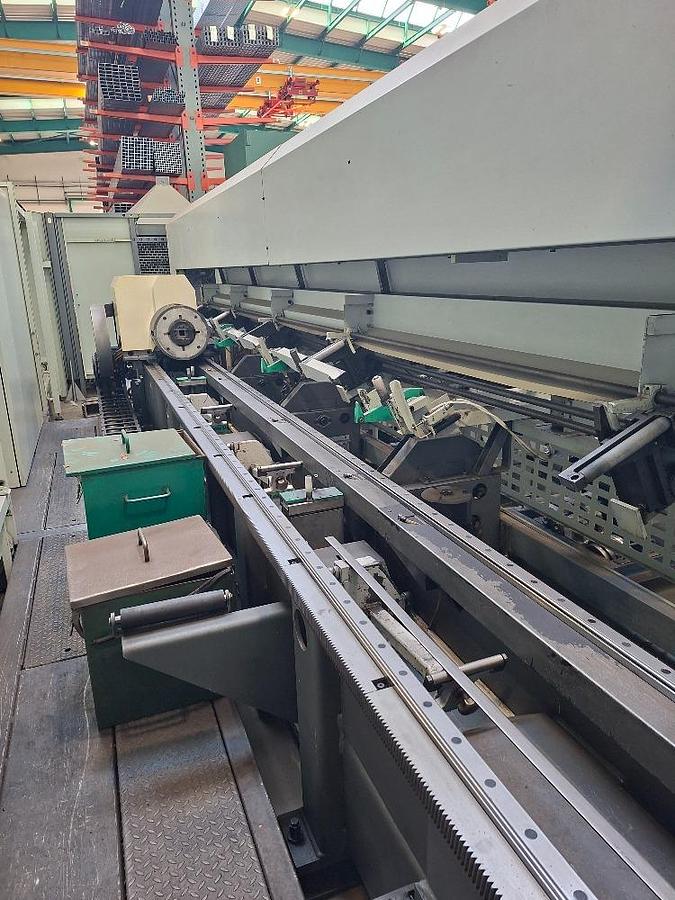

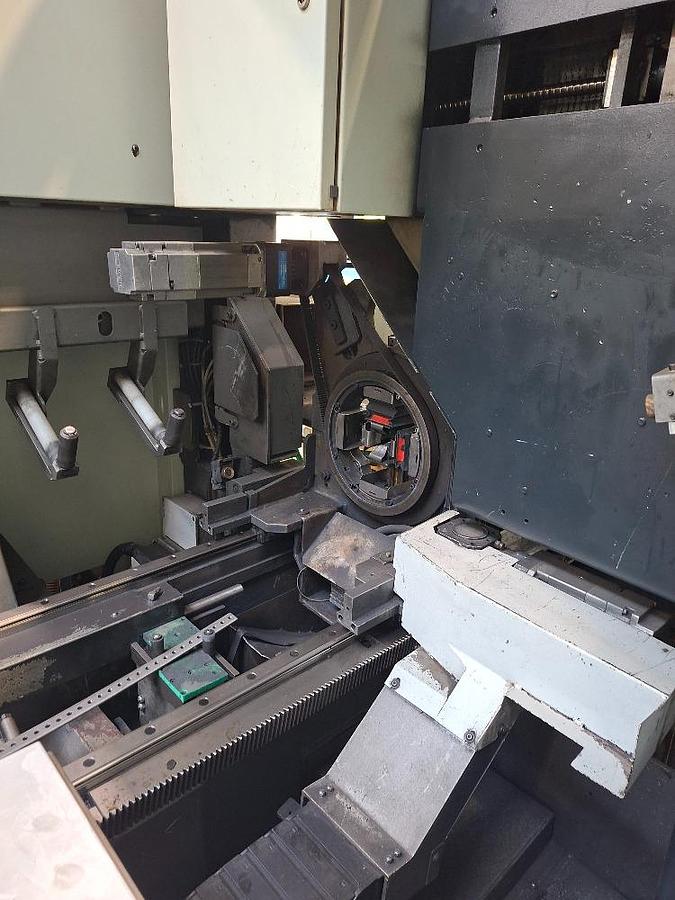

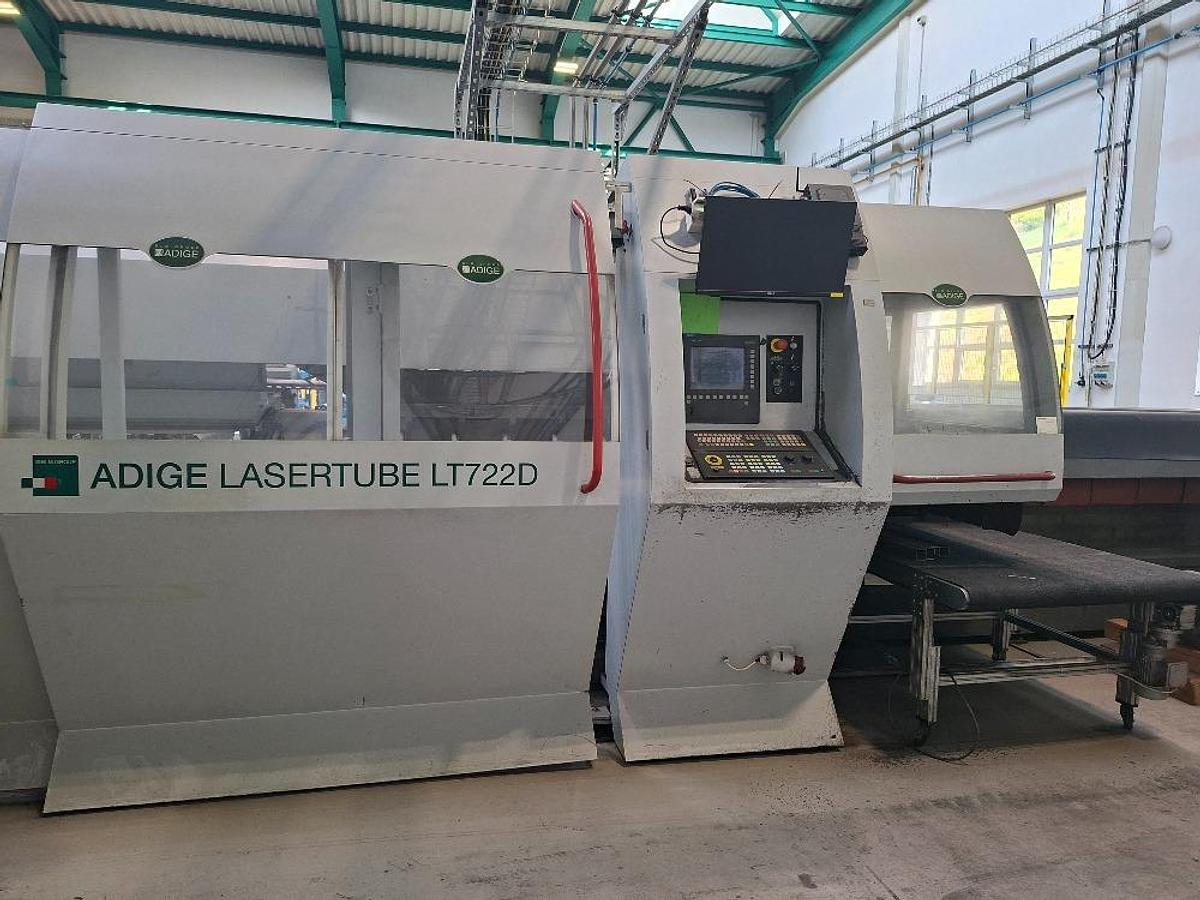

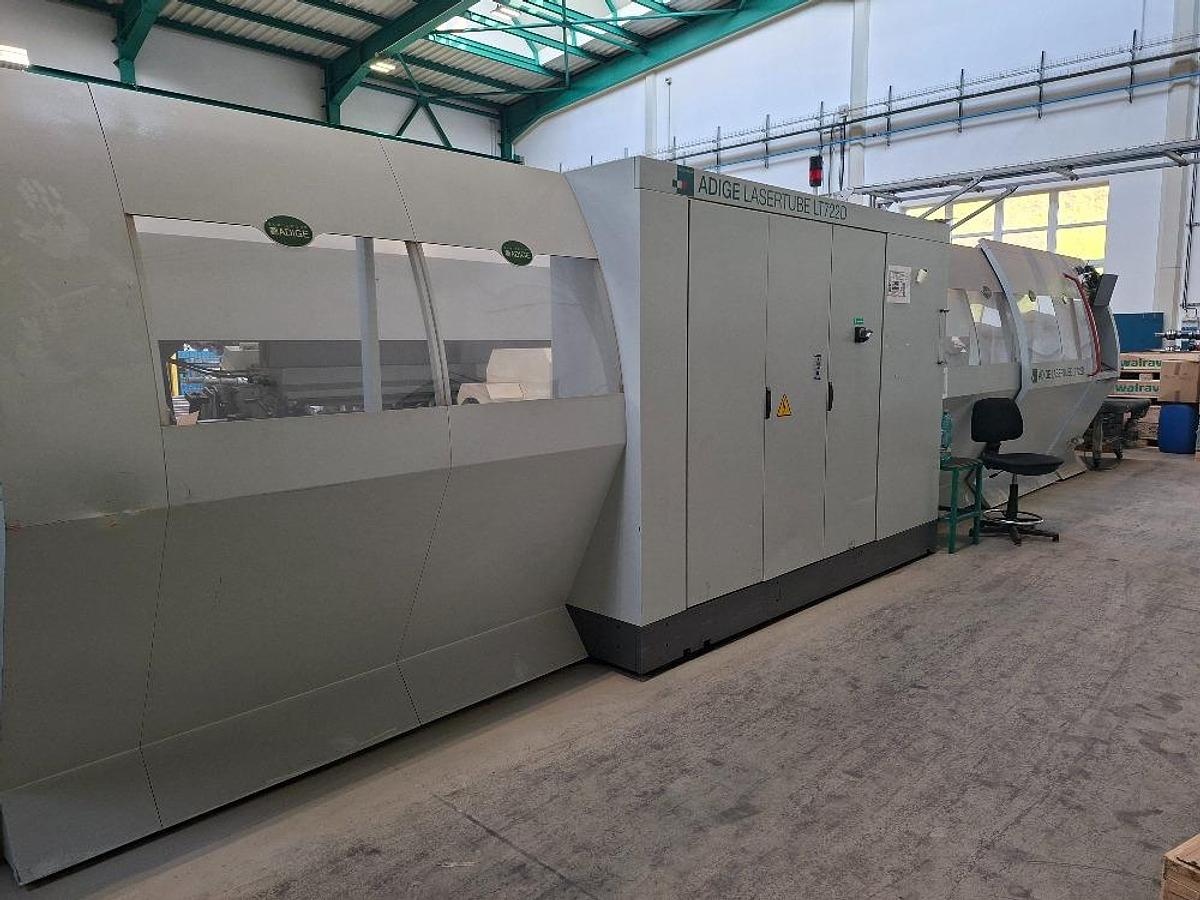

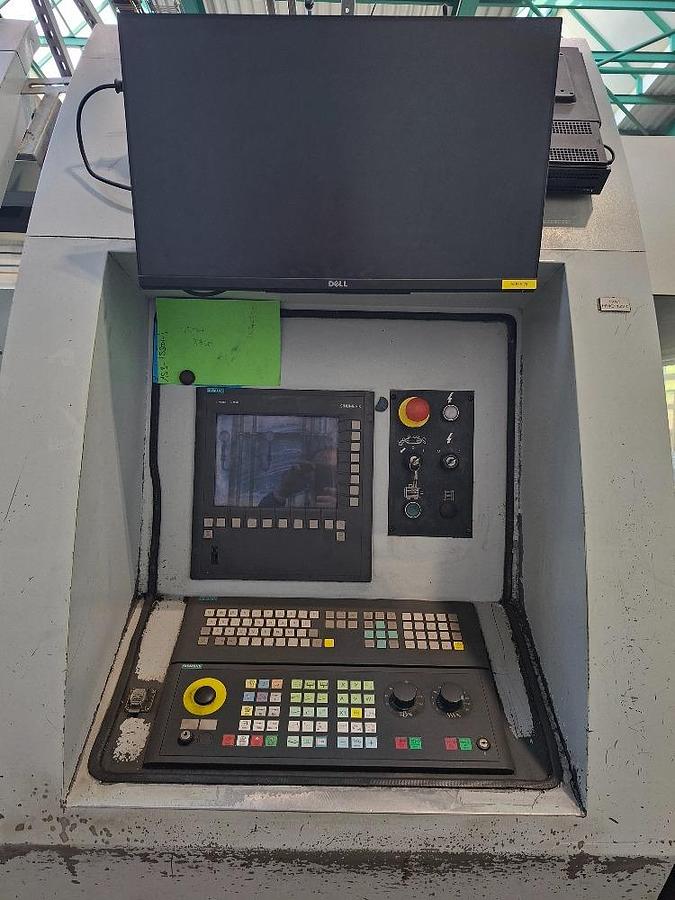

Adige Lasertube LT722D

Manufacturer: Adige

Model: Lasertube LT722D

Technical Details:

• Laser Source: Rofin Sinar DC25
• Laser Power: 40 kVA apparent power
• Minimum Bar Length: 3200 mm
• Maximum Bar Length: 6500 mm
• Max Bar Weight (L=6500): 100 kg
• Max Bar Weight (L=8500): 130 kg
• Round Section Diameter: 12 to 140 mm
• Round Section Optional: 12 to 152.5 mm
• Square Section Side: 12 to 120 mm
• Max Circumscribed Circle: 170 mm
• Minimum Side Dimension: 10 mm
• Maximum Side Dimension: 140 mm
• Max Side Dimension Optional: 150 mm
• Max Load Saddle Capacity: 4000 kg
• Power Voltage: 400 V +/- 10%
• Frequency: 50 Hz
• Type of Power: Three phase without neutral
• Total Machine Power: 26 kVA
• Enclosure Protection: IP54
• Hydraulic Reservoir Capacity: 25 l
• Hydraulic Pressure: 70 bar
• Pneumatic Pressure: 6 bar
• Pneumatic Capacity: > 500 Nl/min
• Weight L=6500 version: 9000 daN
• Weight L=8500 version: 10000 daN
• Ambient Temperature: 5 to 40 degrees C
• Aspirator: Torit DPF4
• Certification: CE
