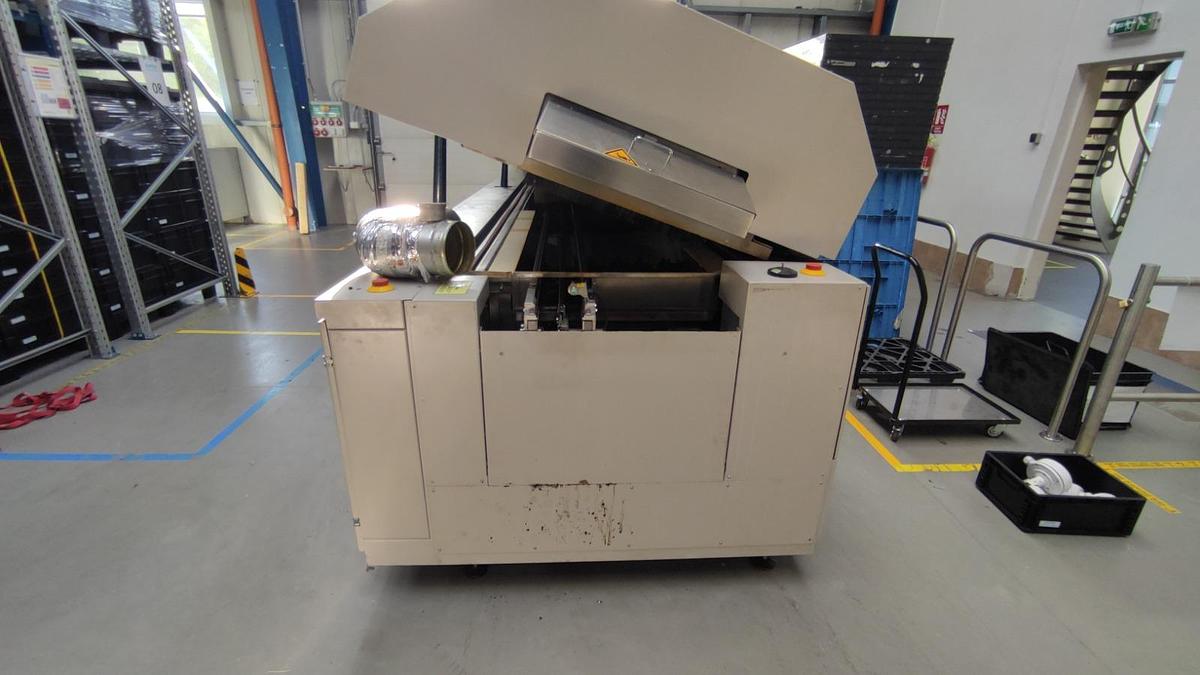

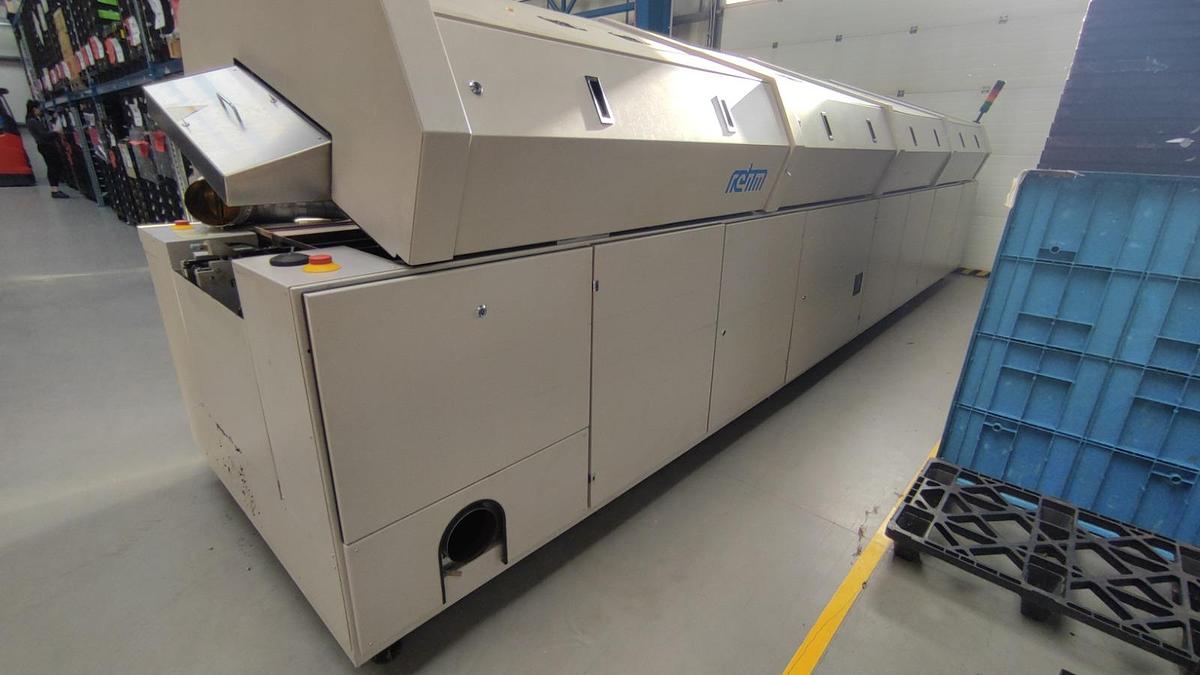

2010 Rehm VXP 734 Reflow Oven

Manufacturer: Rehm

Model: VXP 734

Year of Manufacture:   2010

Type of Machine : Reflow Oven

• Nitrogen capable
• Easy transport with center support

Core System Specifications

• Model: Reflow Soldering System VXP nitro 3500 (Type 734)
• Heating Zone Length: 350 mm

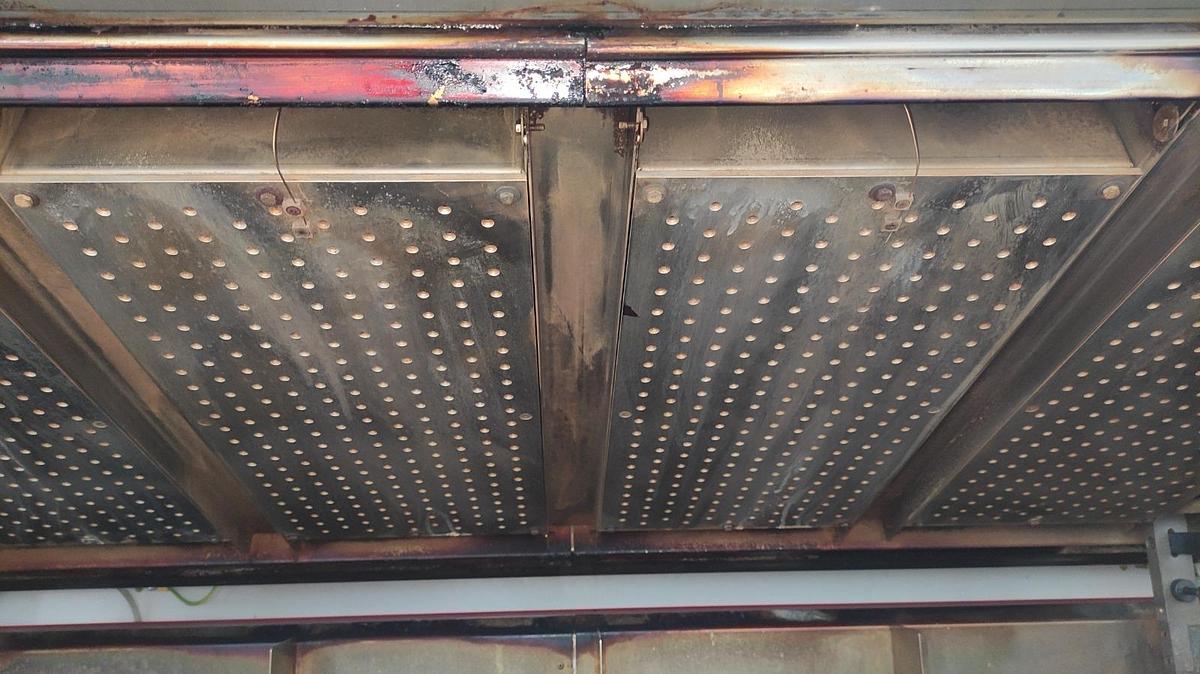

• Heating Layout: Top and bottom heating
• Zone Configuration: 7 pre-heating zones / 3 peak zones / 4 cooling zones
• PCB Width Capacity: 50 mm to 400 mm (65 mm to 400 mm with Center Board Support); configured with an upgrade option to expand transport width up to 460 mm

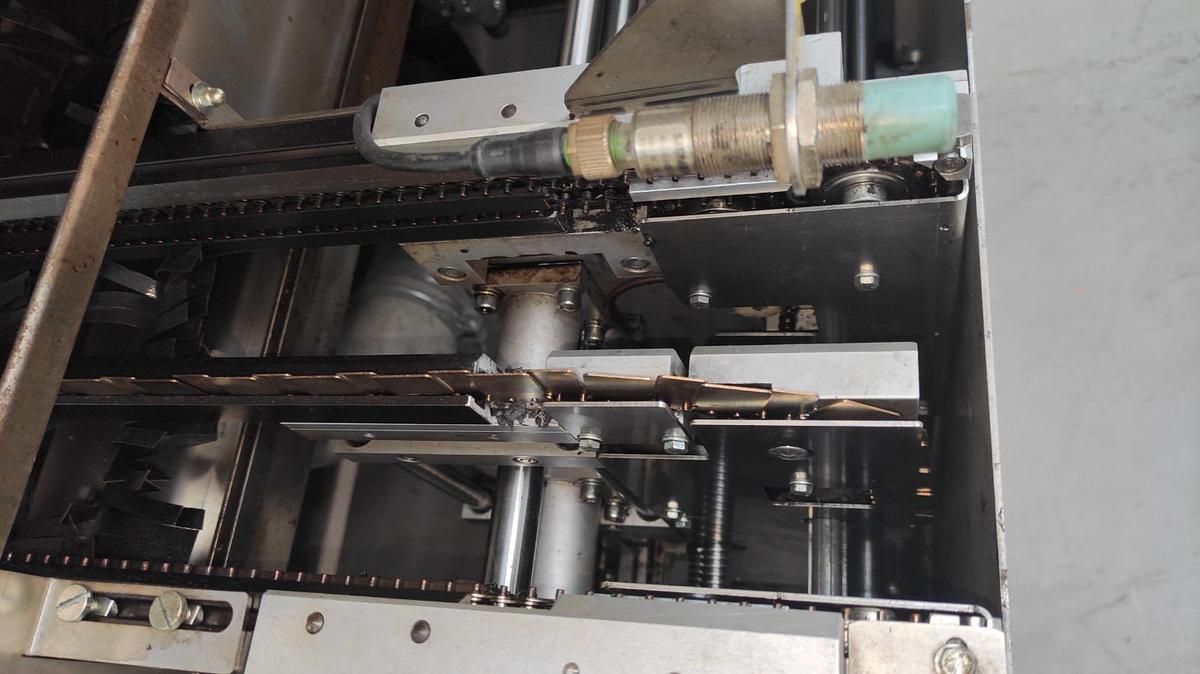

• Conveyor System: Pin chain conveyor 3 mm (with manual width adjustment via electrical inching operation)
• Color: SF 700 lightbasic

Included Standard Features & Systems

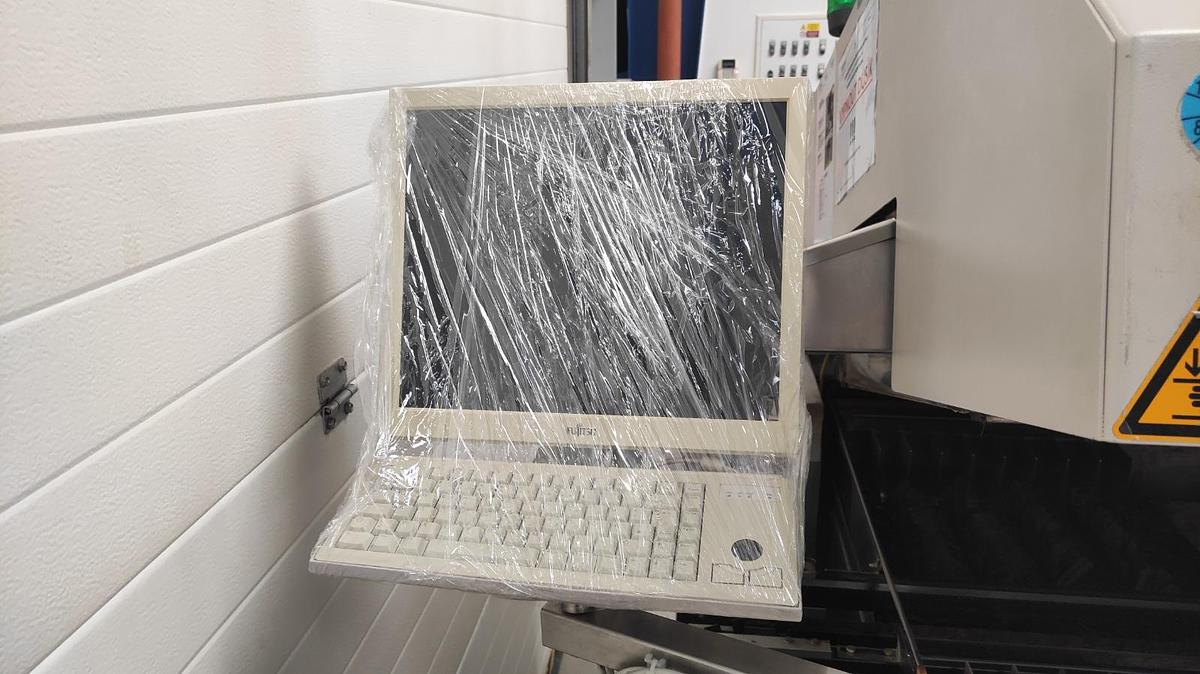

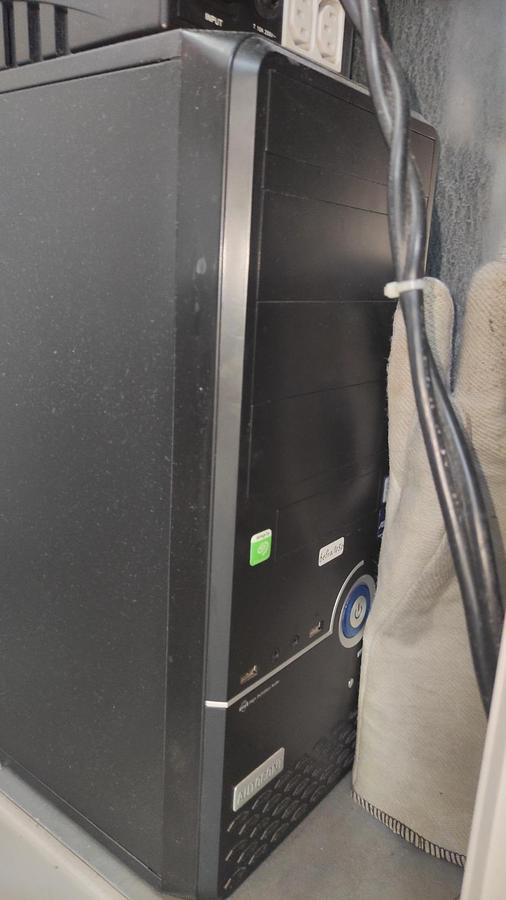

• Control Unit: PC-control featuring a flatscreen monitor and a three-colored signal tower

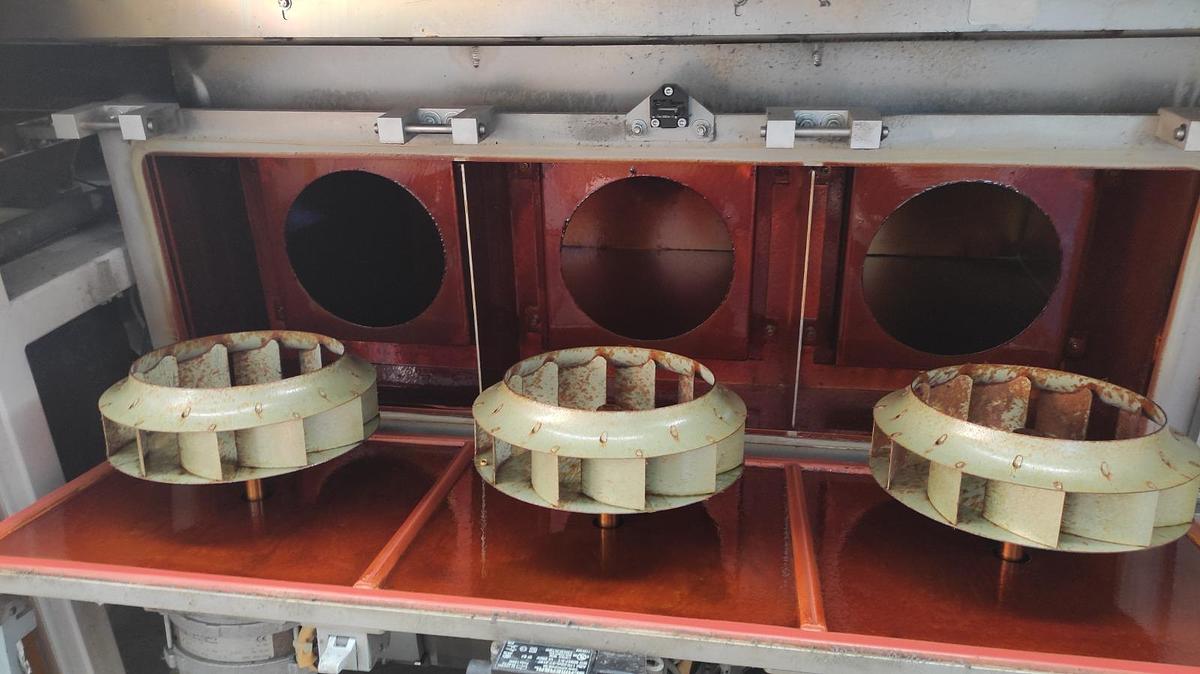

• Fan Speed Control: Separated for 1x heating top, 1x heating bottom, and 1x cooling section
• Flux Management: Integrated Pyrolytic Fluxmanagement system

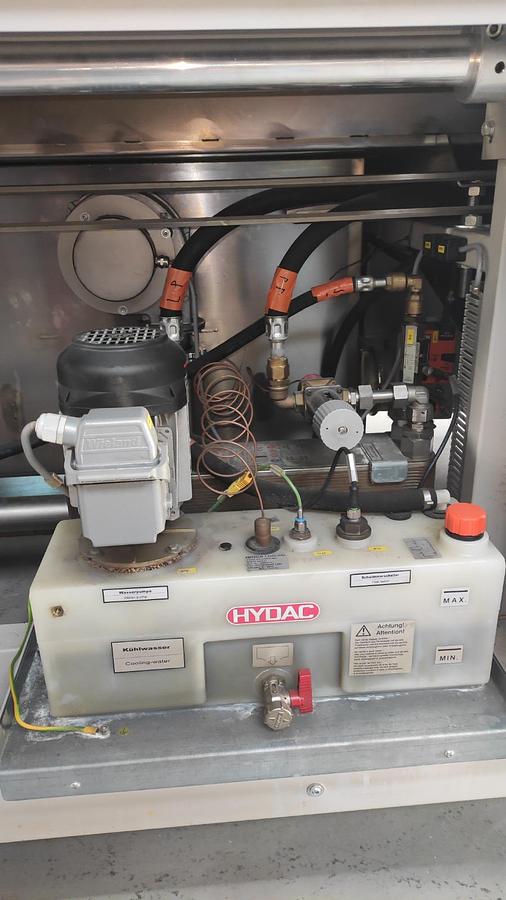

• Cooling: Integrated cooling circuit and heat exchanger designed for connection to external facility water supplies

Included Optional Upgrades & Modules

• Center Board Support (CBS): Equipped with a lash chain (including horizontal PC-CBS-Adjustment)
• Conveyor & Product Handling: * PC-Width Adjustment
• Interface for Siemens Handling Systems
• Supervision of PCB-Throughput (including visualization)
• Supervision of Conveyor Speed
• Process Monitoring & Automation:
• Supervision of Interior Temperature
• Supervision of Exhaust Air
• Auto-Start-Package
• Automatic Chain Lubrication
• Operating Time Counter
• Product and drawing number management (manages oven parameters via product name/profiles)
• Gas & Environment Controls:
• Nitrogen saving unit
• Quick exhaust system (for shorter change-over times from reflow to curing processes, including an integrated exhaust fan)
•
