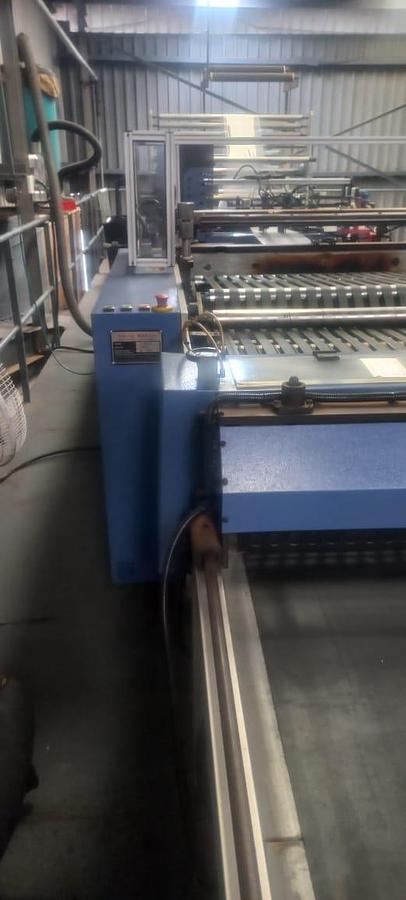

2020 Gur Is TY-1050 MT Bagmaking Machine

Manufacturer:  Gur Is

Model: TY-1050 MT

Year of Manufacture: 2020

Machine Type : Bagmaking Machine

Condition: Good working condition, currently in production

Materials and Film Specifications

• Film types: LDPE, HDPE, recycled film extracts
• Film thickness: 20 to 100 micron PE film

Production Specifications

• Sealing width (bag length): up to 1050 mm
• Draw length (bag width): 80 to 600 mm
• Linear speed: up to 300 m/min
• Output: up to 200 bags per minute

Bag Types Produced

• Patch handle bags with handle cut-off
• Safety bags
• Side weld and bottom seal bags
• Bottom gusset bags
• Open and closed lip bags
• Round bottom bags
• Header seal bags

Drive and Control System

• Control: PLC with operator interface terminal
• Drive: servo motor driven input nip rollers and sealing bar
• Print registration: photocell print registration control included

Attachments and Accessories Included

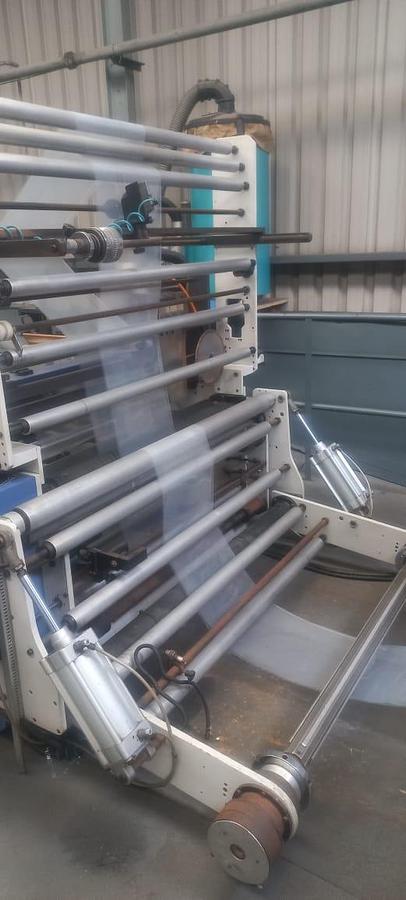

• Driven unwinder: 1600 mm wide
• Web guide unit: 1600 mm
• Gusseters
• Handle insertion unit
• Handle cut-out unit
• Patch handle unit with glue and heat seal
• Banana-hole puncher
• Handle punch unit
• Longitudinal sealer
• Presealers
• Angle sealers
• Cross sealers
• String and flanged zipper attachment
• G-folding unit
• V-fold station
• Automatic one-step index conveyor
• Anti-static bars
